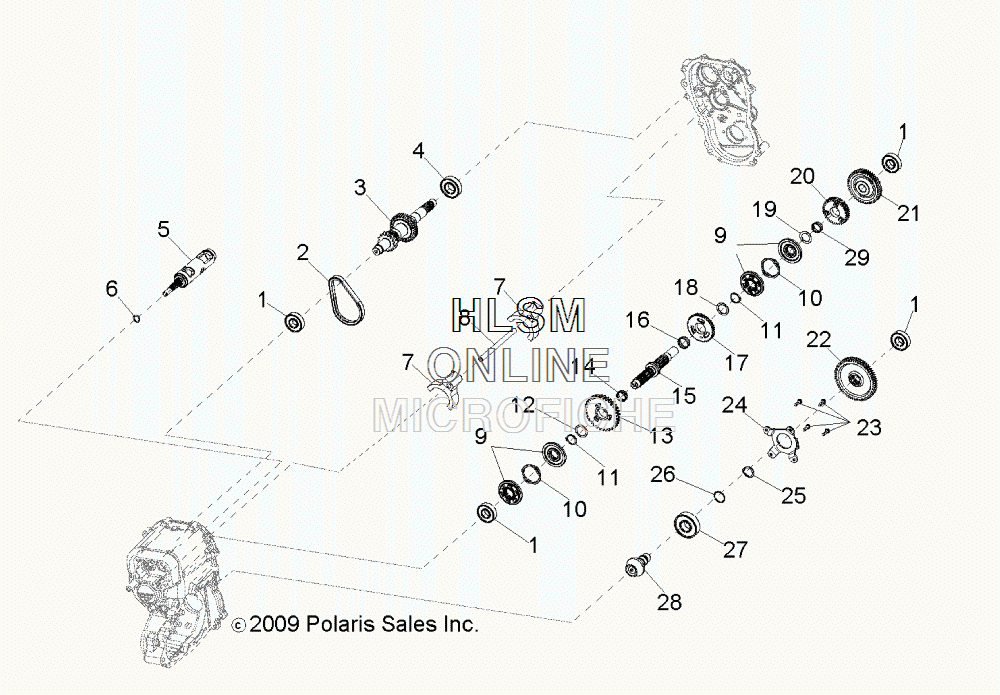

MAIN GEARCASE INTERNAL (2X4) для Polaris RANGER 6X6 SAGE GREEN [R15RAA76AA] - 2015 года выпуска
-
№АртикулНазвание
-
--1332978 ASM., MAIN GEARCASEASM., MAIN GEARCASE
-
13233018 BEARINGBEARING
-
23234264 CHAINCHAIN
-
33234677 SUB-ASM., INPUT SHAFTSUB-ASM., INPUT SHAFT
-
43233019 BEARING, BALLBEARING, BALL
-
53234212 DRUM, SHIFTDRUM, SHIFT
-
63233840 O-RINGO-RING
-
73234220 SUB-ASM., SHIFT FORK W/PINSUB-ASM., SHIFT FORK W/PIN
-
83233860 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
93233875 ENGAGEMENT DOGENGAGEMENT DOG
-
103234144 SPRING, WAVESPRING, WAVE
-
113233850 RING, RETAININGRING, RETAINING
-
123233851 WASHERWASHER
-
133233852 GEAR, 33TGEAR, 33T
-
143233718 BEARING, NEEDLEBEARING, NEEDLE
-
153233892 SHAFT, REVERSESHAFT, REVERSE
-
163233103 BEARING, NEEDLEBEARING, NEEDLE
-
173234290 SPROCKET, 38TSPROCKET, 38T
-
183233894 WASHERWASHER
-
193233855 WASHERWASHER
-
203234678 GEAR, 36TGEAR, 36T
-
213234138 GEAR, 47TGEAR, 47T
-
223234139 GEAR, 60TGEAR, 60T
-
233234086 SCREWSCREW
-
243234122 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
253233106 RING, RETAININGRING, RETAINING
-
263233357 SPACERSPACER
-
273234055 BEARINGBEARING
-
283234911 SUB. ASM. GROUND SPIRAL BEVEL (SEE NOTE)SUB. ASM. GROUND SPIRAL BEVEL (SEE NOTE)
-
293233009 BEARING, NEEDLEBEARING, NEEDLE
