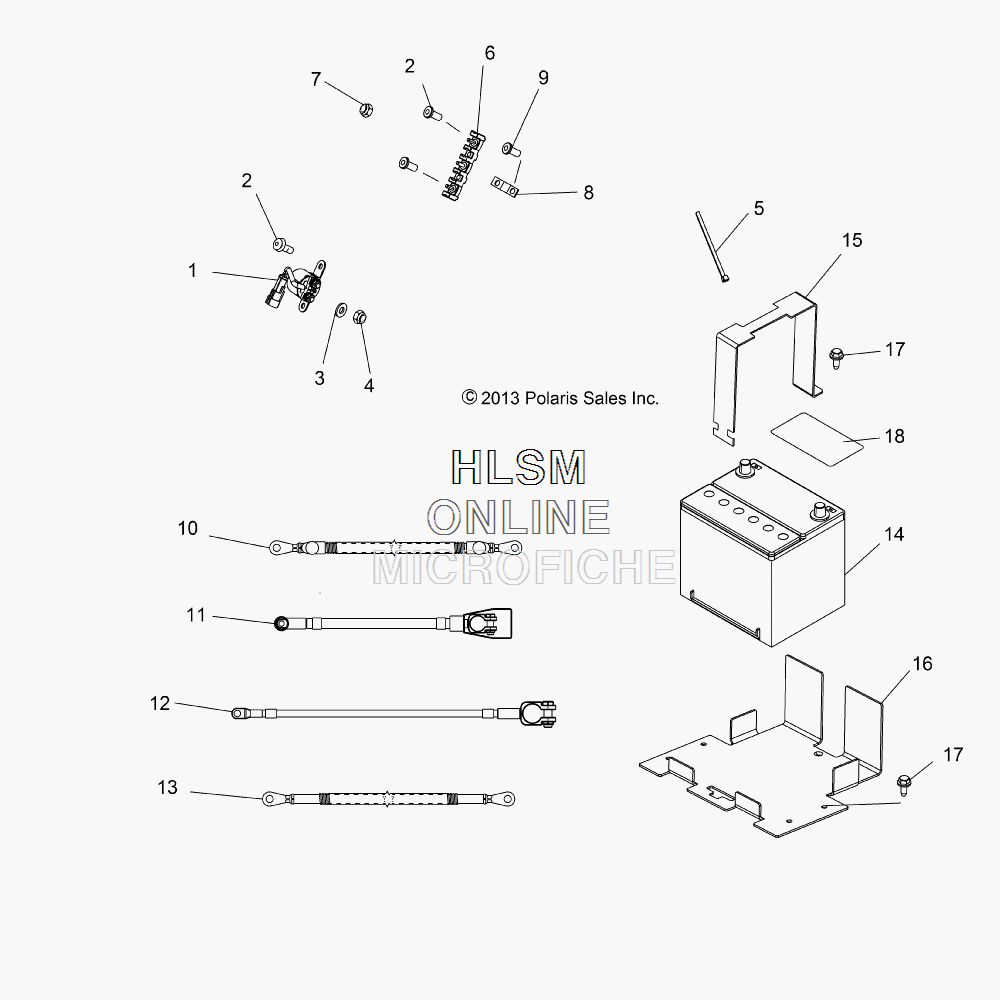

BATTERY W/BRACKET для Polaris RANGER 6X6 SAGE GREEN [R15RAA76AA] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4012001 SOLENOID, STARTER
    SOLENOID, STARTER
  • 2
    7518196 SCREW
    SCREW
  • 3
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 4
    7546705 NUT, HEX
    NUT, HEX
  • 5
    7080138 CABLE TIE
    CABLE TIE
  • 6
    4011892 BLOCK, TERMINAL
    BLOCK, TERMINAL
  • 7
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 8
    5248659 STRAP, GROUND
    STRAP, GROUND
  • 9
    7512018 SCREW
    SCREW
  • 10
    4014048 CABLE, BATTERY TO SOLENOID
    CABLE, BATTERY TO SOLENOID
  • 11
    2412355 HARNESS, BOX
    HARNESS, BOX
  • 12
    4014566 CABLE, GROUND
    CABLE, GROUND
  • 13
    4010093 CABLE, SOLENOID/STARTER, RED
    CABLE, SOLENOID/STARTER, RED
  • 14
    4014132 BATTERY
    BATTERY
  • 15
    5257827 BRACKET, BATTERY STRAP
    BRACKET, BATTERY STRAP
  • 16
    5258009-458 BRACKET, BATTERY TRAY, MATTE BLACK
    BRACKET, BATTERY TRAY, MATTE BLACK
  • 17
    7518513 BOLT
    BOLT
  • 18
    7177052 DECAL, BATTERY
    DECAL, BATTERY
