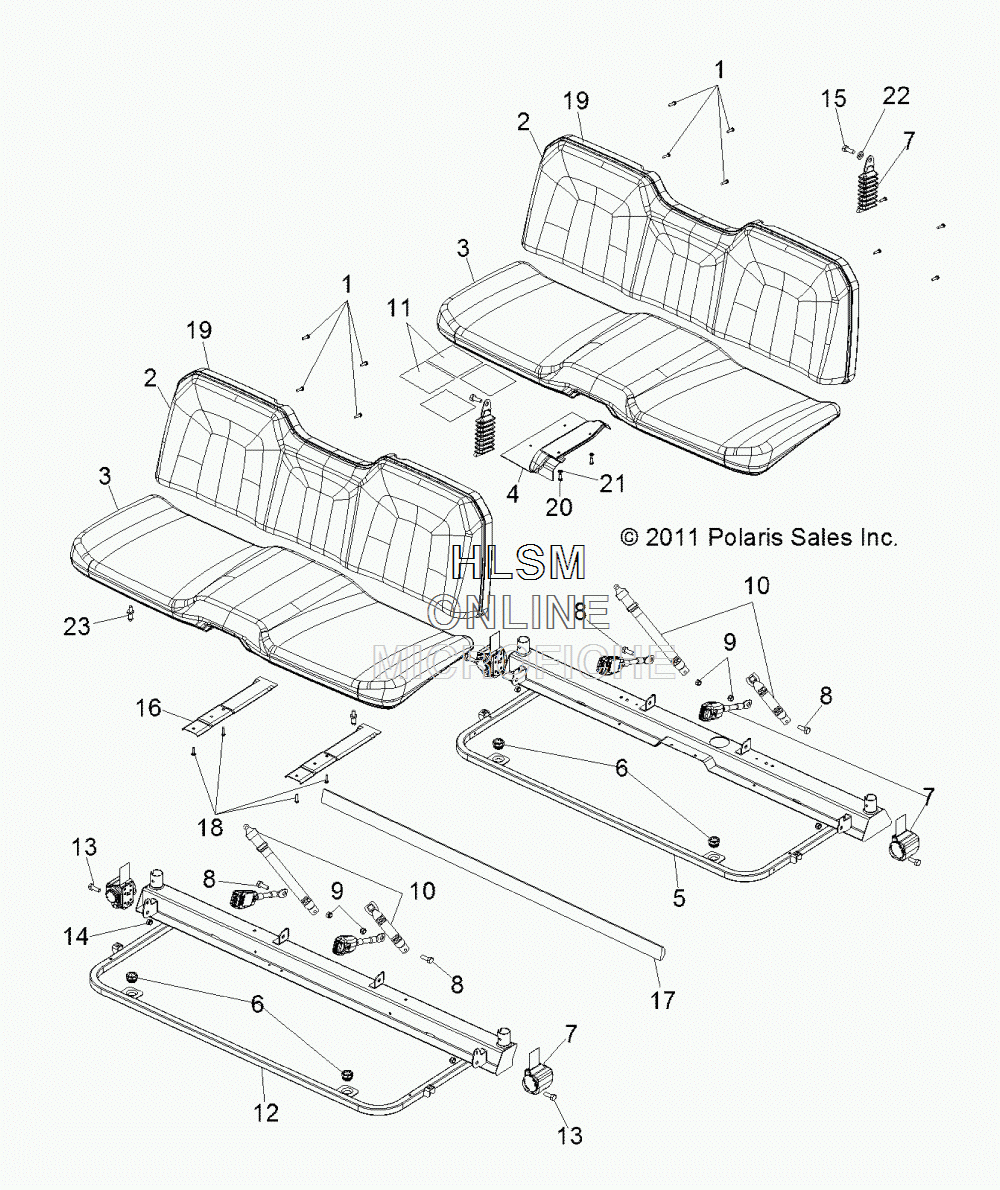

SEAT AND BASE для Polaris RANGER 900 CREW DIESEL SAGE BRUSH (R13WH90DG) - 2013 года выпуска
-
№АртикулНазвание
-
17519274 SCREWSCREW
-
22684885-070 ASM., SEAT, BACK, BLACKASM., SEAT, BACK, BLACK
-
32684884-070 ASM., SEAT, BOTTOM, BLACK (INCL. TAB, RIVET, 23)ASM., SEAT, BOTTOM, BLACK (INCL. TAB, RIVET, 23)
-
35437903 TAB, MOUNT, SEATTAB, MOUNT, SEAT
-
37621479 RIVETRIVET
-
45813738 SHIELD, SEAT BASESHIELD, SEAT BASE
-
51017809-458 BASE, CAB/SEAT, MATTE BLACKBASE, CAB/SEAT, MATTE BLACK
-
65412507 GROMMETGROMMET
-
72634887 ASM., SEAT BELT, 3 POINT (INCL. 13-15)ASM., SEAT BELT, 3 POINT (INCL. 13-15)
-
87512520 SCREWSCREW
-
97547066 NUTNUT
-
102634093 ASM., SEAT BELT, CENTERASM., SEAT BELT, CENTER
-
115812295 FOIL, SEATFOIL, SEAT
-
121017808-458 BASE, CAB/SEAT, FRONT, MATTE BLACKBASE, CAB/SEAT, FRONT, MATTE BLACK
-
157519255 BOLT, SHOULDERBOLT, SHOULDER
-
165253488-329 BRACKET, SUPPORT, SEAT BASE, BLACKBRACKET, SUPPORT, SEAT BASE, BLACK
-
175813241 PAD, SEAT BASE, REARPAD, SEAT BASE, REAR
-
187518158 SCREWSCREW
-
195437641-070 COVER, SEAT BACK, BLACKCOVER, SEAT BACK, BLACK
-
207519290 SCREWSCREW
-
217555859 WASHER, FLATWASHER, FLAT
-
225813829 WASHER, SEAT BELT, RUBBERWASHER, SEAT BELT, RUBBER
-
235632536 PIN, SEAT LATCHPIN, SEAT LATCH
