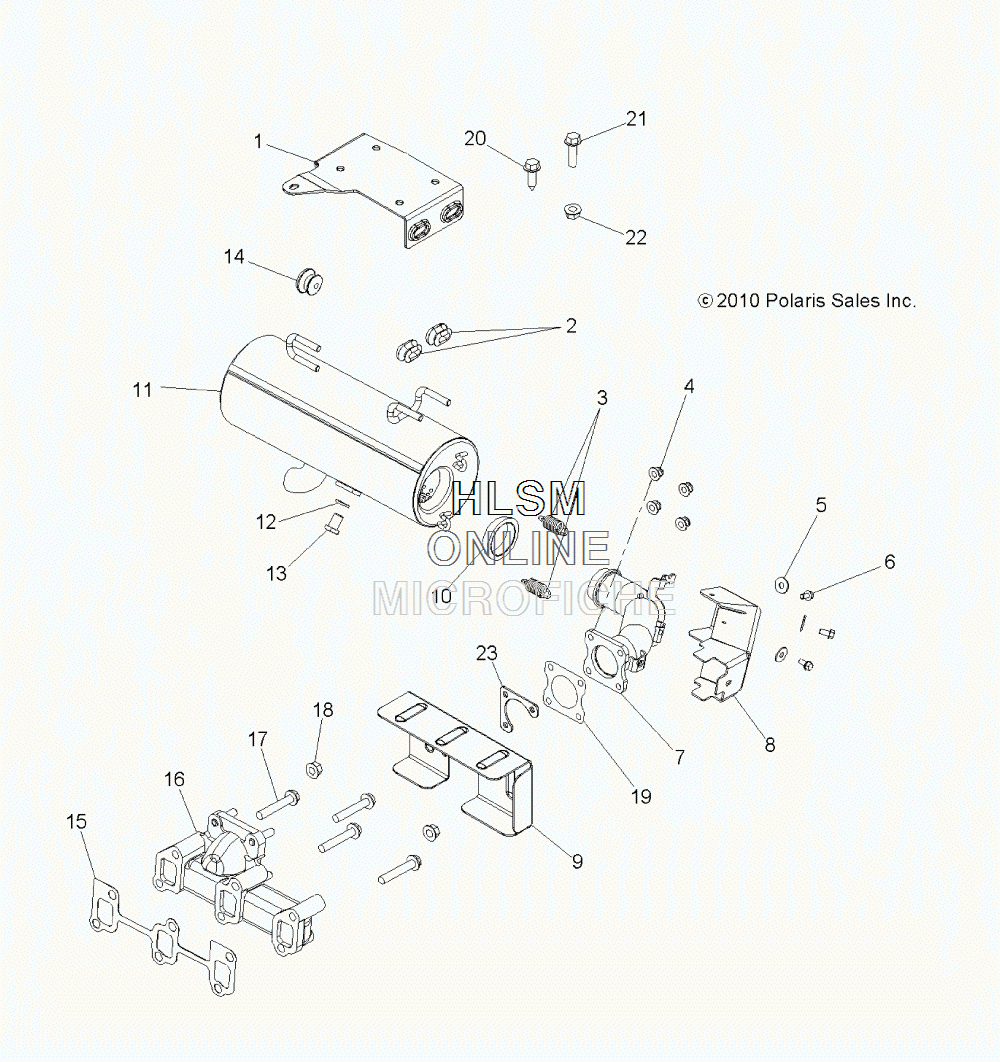

EXHAUST для Polaris RANGER 900 CREW DIESEL SAGE BRUSH (R13WH90DG) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5254657-458 MOUNT, SILENCER, MATTE BLACK
    MOUNT, SILENCER, MATTE BLACK
  • 2
    5436598 GROMMET, SILENCER, MOUNT
    GROMMET, SILENCER, MOUNT
  • 3
    7041804 SPRING, EXHAUST
    SPRING, EXHAUST
  • 4
    7547440 NUT
    NUT
  • 5
    7555935 WASHER
    WASHER
  • 6
    7515197 SCREW
    SCREW
  • 7
    1262206-489 PIPE, EXHAUST, BLACK
    PIPE, EXHAUST, BLACK
  • 8
    5254238 SHIELD, HEAT, EXHAUST, REAR
    SHIELD, HEAT, EXHAUST, REAR
  • 9
    5255378 SHIELD, MANIFOLD
    SHIELD, MANIFOLD
  • 10
    3610181 SEAL, EXHAUST, SOCKET
    SEAL, EXHAUST, SOCKET
  • 11
    1262207-489 SILENCER, BLACK (INCL. 12,13)
    SILENCER, BLACK (INCL. 12,13)
  • 12
    7556230 WASHER, CLEAN OUT
    WASHER, CLEAN OUT
  • 13
    7512666 BOLT
    BOLT
  • 14
    5413377 GROMMET, SILENCER, MOUNT
    GROMMET, SILENCER, MOUNT
  • 15
    3070085 GASKET, MANIFOLD
    GASKET, MANIFOLD
  • 16
    3070084 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 17
    3070087 BOLT
    BOLT
  • 18
    3070089 NUT
    NUT
  • 19
    3070003 GASKET, EXHAUST, MANIFOLD
    GASKET, EXHAUST, MANIFOLD
  • 20
    7518555 BOLT
    BOLT
  • 21
    7518514 BOLT
    BOLT
  • 22
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 23
    5254672 PLATE, MANIFOLD
    PLATE, MANIFOLD
