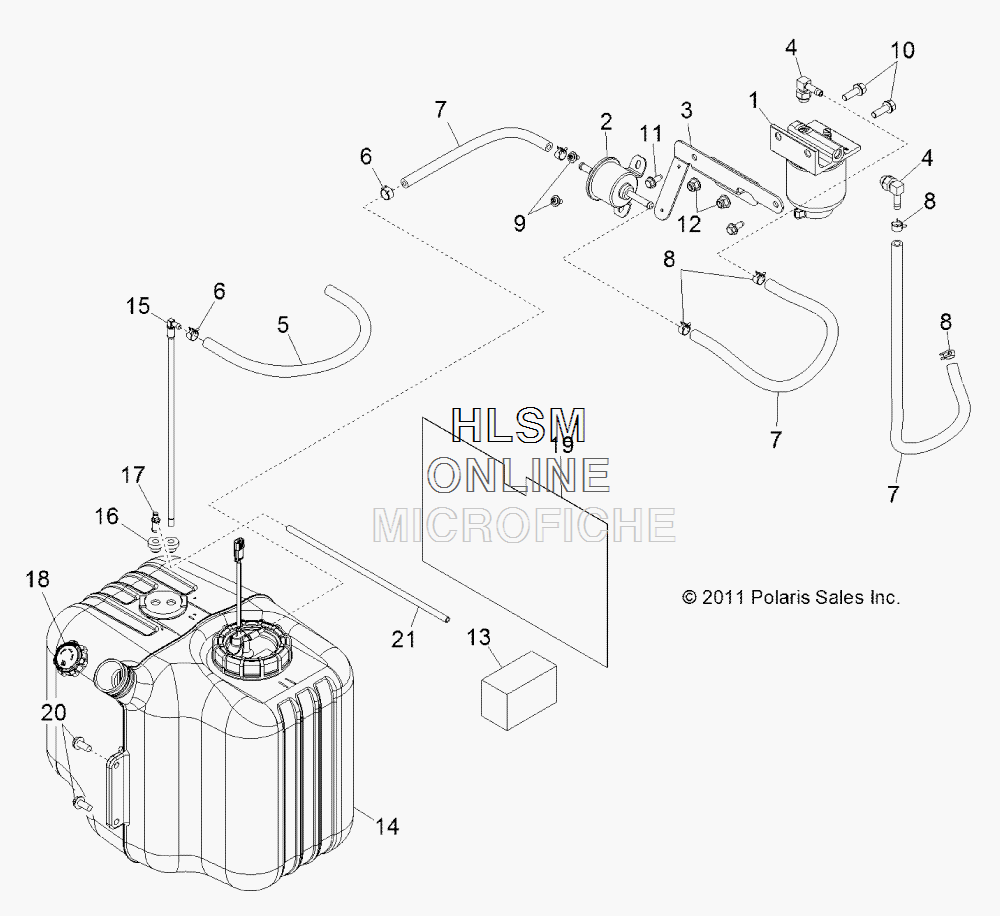

FUEL TANK ASM. для Polaris RANGER 900 CREW DIESEL SAGE BRUSH (R13WH90DG) - 2013 года выпуска
-
№АртикулНазвание
-
12521084 ASM., FUEL, FILTER/WATERASM., FUEL, FILTER/WATER
-
12521087 FILTER, FUEL/WATER SEPARATORFILTER, FUEL/WATER SEPARATOR
-
23070002 PUMP, FUELPUMP, FUEL
-
35254465-329 BRACKET, FUEL SYSTEM MOUNT, BLACKBRACKET, FUEL SYSTEM MOUNT, BLACK
-
47052492 FITTINGFITTING
-
58450117-150 HOSE, FUELHOSE, FUEL
-
67080003 CLAMP, HOSECLAMP, HOSE
-
78450123-153 HOSE, FUELHOSE, FUEL
-
87081432 CLAMP, HOSECLAMP, HOSE
-
97512084 SCREWSCREW
-
107516734 SCREWSCREW
-
117518555 BOLTBOLT
-
127547317 NUTNUT
-
135813554 FILTER, VENT LINEFILTER, VENT LINE
-
142521156 ASM., FUEL TANK, DIESEL W/FILTER (INCL. 15-17)ASM., FUEL TANK, DIESEL W/FILTER (INCL. 15-17)
-
152521026 ASM., FUEL PICK UP W/FILTERASM., FUEL PICK UP W/FILTER
-
167052466 GROMMET, FLANGEDGROMMET, FLANGED
-
177052473 FITTING, ELBOW, VENTFITTING, ELBOW, VENT
-
185438540 CAP, GAS TANK, DIESELCAP, GAS TANK, DIESEL
-
195813854 FOIL, HEAT SHIELDFOIL, HEAT SHIELD
-
207517208 SCREWSCREW
-
218450126-104 LINE, VENTLINE, VENT
