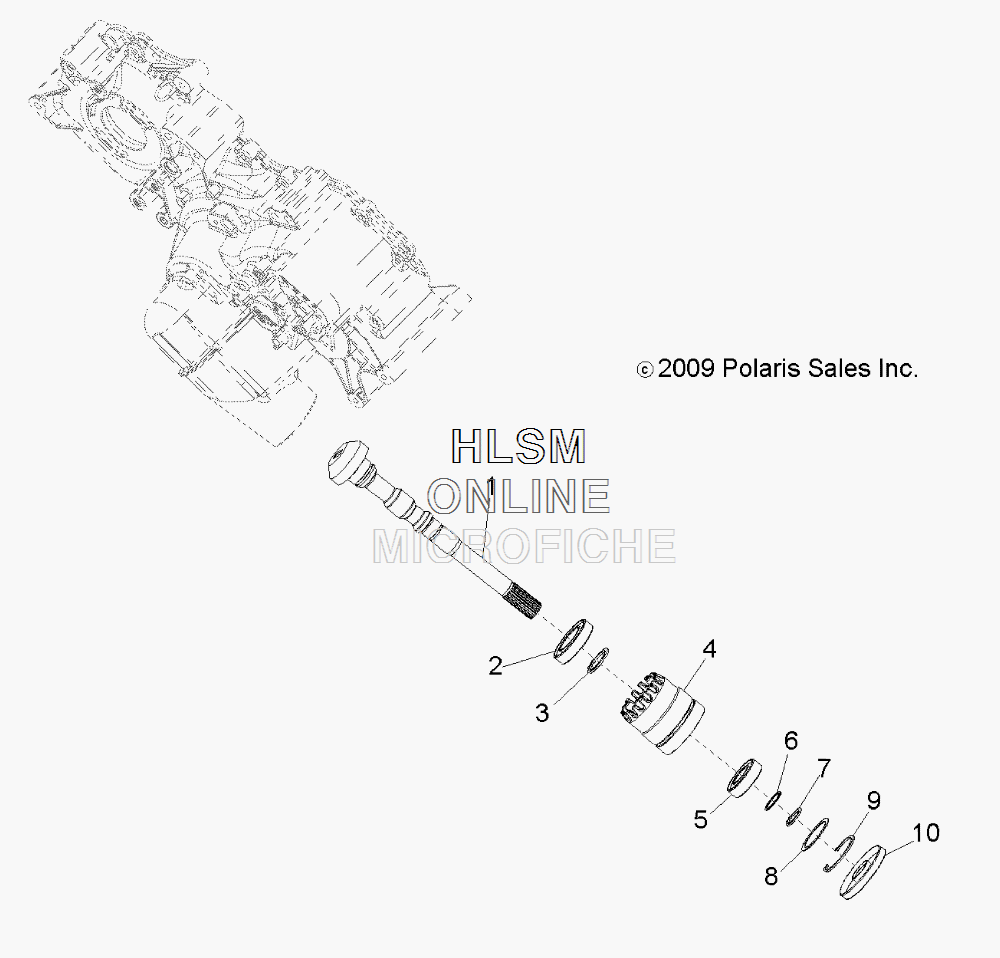

MAIN GEARCASE OUTPUT SHAFT для Polaris RANGER 400 MIDSIZE SAGE GREEN (R13RH45AG) - 2013 года выпуска
‹-+›
-
№АртикулНазвание
-
-1332981 ASM., MAIN GEARCASE (INCL. ALL)ASM., MAIN GEARCASE (INCL. ALL)
-
13235050 GEAR, 13T, SNORKELGEAR, 13T, SNORKEL
-
23233265 BEARING, BALLBEARING, BALL
-
33233364 RING, RETAININGRING, RETAINING
-
43234278 TUBE, SNORKELTUBE, SNORKEL
-
53233019 BEARINGBEARING
-
63234272 SHIMSHIM
-
73233106 RING, SNAPRING, SNAP
-
83234273 SHIMSHIM
-
93234269 RING, RETAININGRING, RETAINING
-
103234113 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
