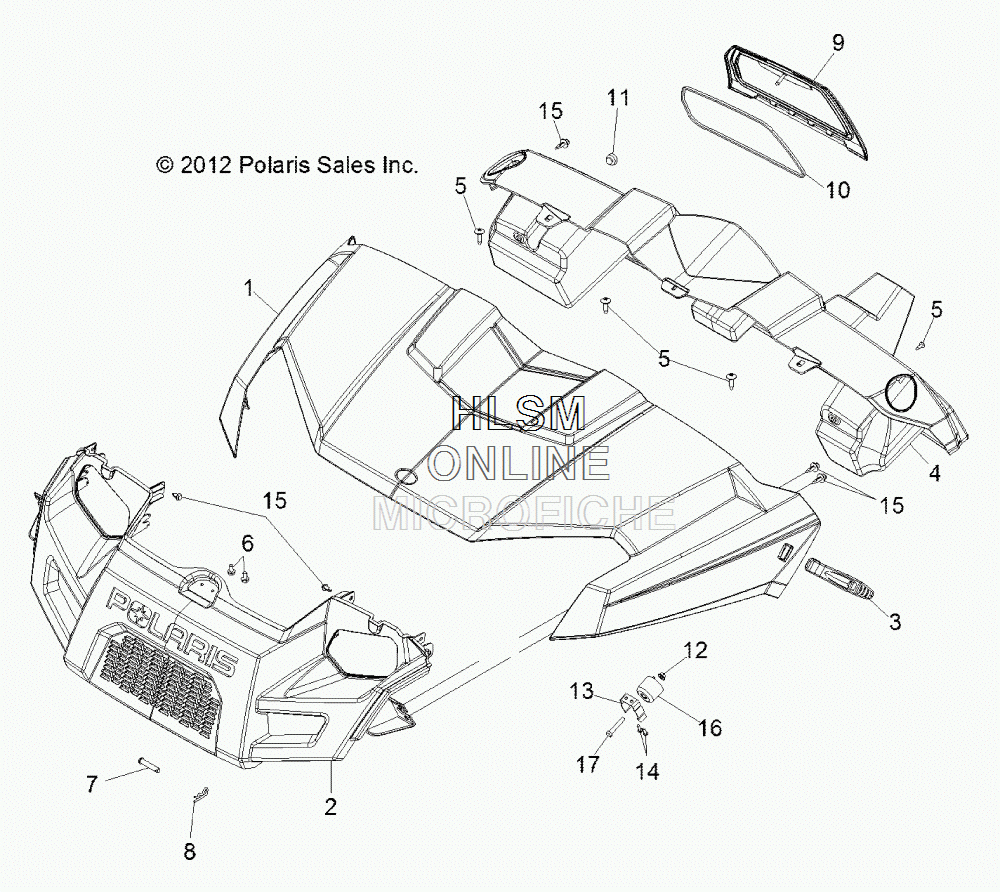

HOOD W/ DASH AND GRILL для Polaris RANGER 400 MIDSIZE SAGE GREEN (R13RH45AG) - 2013 года выпуска`
-
№АртикулНазвание
-
15437949-498 HOOD, SAGE BRUSH GREENHOOD, SAGE BRUSH GREEN
-
25437818-070 GRILLE, HOOD, BLACKGRILLE, HOOD, BLACK
-
35412606 STRAP, HOOD RETAINERSTRAP, HOOD RETAINER
-
45437781-070 DASH, BLACKDASH, BLACK
-
57517685 SCREWSCREW
-
67512095 SCREWSCREW
-
77662139 PIN, HITCHPIN, HITCH
-
87661843 PIN, CLEVISPIN, CLEVIS
-
95438046-070 COVER, GLOVE BOX, BLACKCOVER, GLOVE BOX, BLACK
-
105521789 SEAL, GLOVE BOXSEAL, GLOVE BOX
-
115412504 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
127547440 NUTNUT
-
137661976 CLIP, HOOD MOUNTCLIP, HOOD MOUNT
-
147512026 SCREWSCREW
-
157661855 RIVETRIVET
-
165438280 SPACER, HOOD, CLAMPSPACER, HOOD, CLAMP
-
177519097 SCREWSCREW
