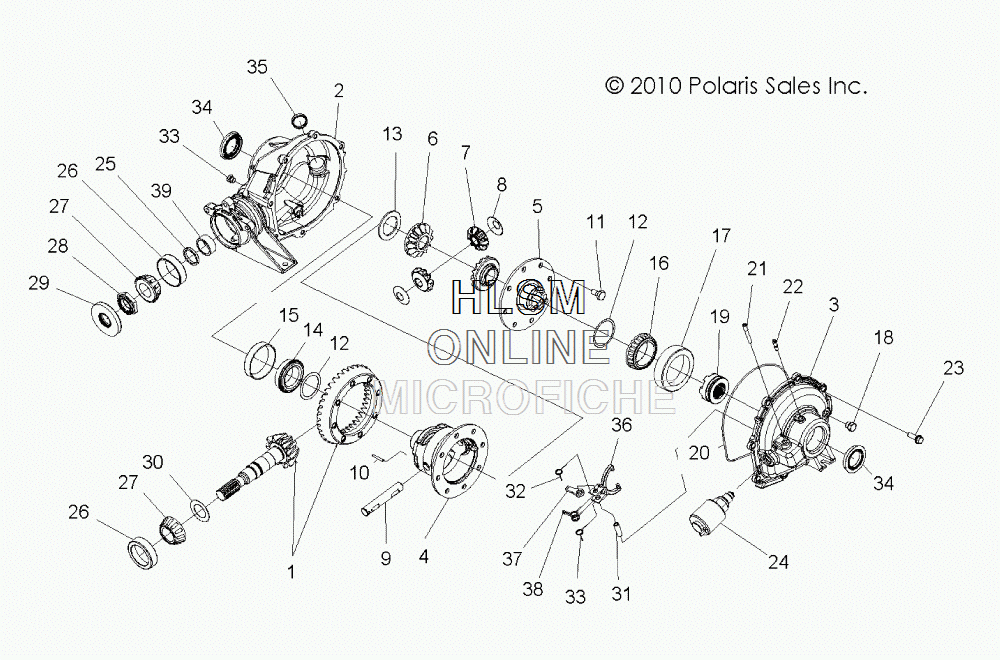

REAR GEARCASE для Polaris RANGER 4X4 900 DIESEL CREW [R12WH90DG] - 2012 года выпуска
-
№АртикулНазвание
-
21332927 ASM., GEARCASE, DIFF, REAR (INCL. ALL)ASM., GEARCASE, DIFF, REAR (INCL. ALL)
-
153235307 KIT, TRANSMISSION HOUSING (INCL. 1,2, 11, 12,25-30, 34,35,39)KIT, TRANSMISSION HOUSING (INCL. 1,2, 11, 12,25-30, 34,35,39)
-
11332714 ASM., HYPOID GEARASM., HYPOID GEAR
-
22204418 HOUSING, CARRIERHOUSING, CARRIER
-
32204377 COVER, CARRIERCOVER, CARRIER
-
45134901 CASE, DIFF, HALFCASE, DIFF, HALF
-
55134906 COVER, DIFF CASE, HALFCOVER, DIFF CASE, HALF
-
65134904 GEAR, DIFF SIDEGEAR, DIFF SIDE
-
75134903 GEAR, DIFF PINION MATEGEAR, DIFF PINION MATE
-
87556347 WASHER, THRUST PINIONWASHER, THRUST PINION
-
95134902 PIN, DIFF CROSSPIN, DIFF CROSS
-
107661164 PIN, DIFF ROLLPIN, DIFF ROLL
-
117518173 BOLT, HEX RING GEARBOLT, HEX RING GEAR
-
122875333 KIT, DIFFERENTIAL SHIMKIT, DIFFERENTIAL SHIM
-
137556346 WASHER, THRUST, SIDE GEARWASHER, THRUST, SIDE GEAR
-
143514434 BEARING, DIFF CONEBEARING, DIFF CONE
-
153514433 BEARING, DIFFBEARING, DIFF
-
162203500 ROLLER, BEARINGROLLER, BEARING
-
172203881 CUP, BEARINGCUP, BEARING
-
185137538 PLUG, FILL/CHECKPLUG, FILL/CHECK
-
195137196 GEAR, CLUTCHGEAR, CLUTCH
-
205412338 O-RINGO-RING
-
212203503 PIN, LOCK ASM.PIN, LOCK ASM.
-
227052334 VENT, TUBEVENT, TUBE
-
237518172 BOLT, HEX, FLANGE, HOUSINGBOLT, HEX, FLANGE, HOUSING
-
242411634 SOLENOID, DIFF LOCKSOLENOID, DIFF LOCK
-
252203505 KIT, SPACERKIT, SPACER
-
263514431 BEARING, CUP, PINIONBEARING, CUP, PINION
-
273514432 BEARING, CONE, PINIONBEARING, CONE, PINION
-
287547433 NUT, PINIONNUT, PINION
-
293610102 SEAL, OIL PINIONSEAL, OIL PINION
-
302203505 BUSHING, LOCK PINBUSHING, LOCK PIN
-
312203507 BUSHING, PIN LOCKBUSHING, PIN LOCK
-
327042210 SPRING, SHIFT RETURNSPRING, SHIFT RETURN
-
335133731 PLUG, DRAINPLUG, DRAIN
-
343610146 SEAL, OIL SHAFTSEAL, OIL SHAFT
-
357052523 PLUGPLUG
-
365133759 YOKE, SHIFTYOKE, SHIFT
-
375133760 LEVER, SHIFTLEVER, SHIFT
-
387042209 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
392203510 SPACER, PINIONSPACER, PINION
