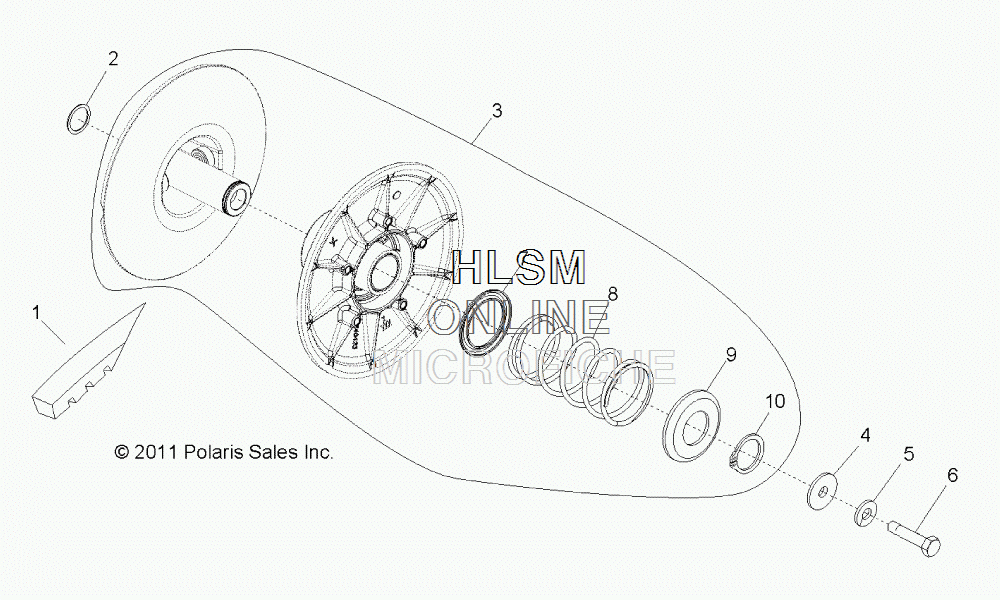

CLUTCH- SECONDARY для Polaris RANGER 4X4 900 DIESEL CREW [R12WH90DG] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3211135 BELT, DRIVE
    BELT, DRIVE
  • 2
    7556120 BUSHING (3 MAX)
    BUSHING (3 MAX)
  • 3
    1322986 ASM., DRIVEN CLUTCH (INCL. 7-10)
    ASM., DRIVEN CLUTCH (INCL. 7-10)
  • 4
    5250562 WASHER, DOMED
    WASHER, DOMED
  • 5
    7552901 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 6
    7518935 BOLT
    BOLT
  • 7
    3234616 RETAINER, SPRING, INNER
    RETAINER, SPRING, INNER
  • 8
    3235317 SPRING, COMPRESSION, BLACK/RED/WHITE
    SPRING, COMPRESSION, BLACK/RED/WHITE
  • 9
    7710563 RETAINER, SPRING, OUTER
    RETAINER, SPRING, OUTER
  • 10
    7710522 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
