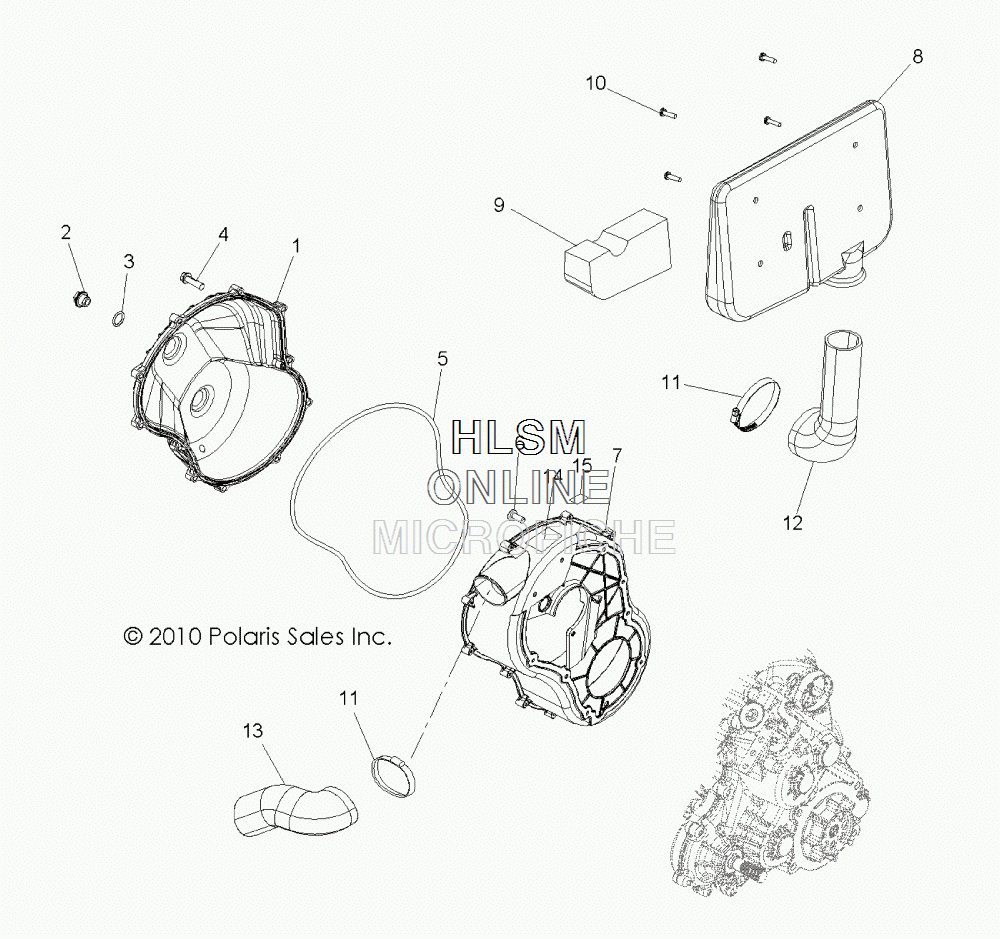

CLUTCH COVER AND DUCTING для Polaris RANGER 4X4 900 DIESEL CREW [R12WH90DG] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    2633919 ASM., COVER, CLUTCH, OUTER (INCL. COVER ,2,3)
    ASM., COVER, CLUTCH, OUTER (INCL. COVER ,2,3)
  • 2
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 3
    5410542 O-RING
    O-RING
  • 4
    7512094 SCREW
    SCREW
  • 5
    5521802 SEAL, CLUTCH COVER
    SEAL, CLUTCH COVER
  • 6
    7518914 SCREW
    SCREW
  • 7
    5438530 COVER, CLUTCH, INNER, BLACK
    COVER, CLUTCH, INNER, BLACK
  • 8
    1240594 ASM., AIRBOX BAFFLE, CLUTCH (INCL. COVER, 9)
    ASM., AIRBOX BAFFLE, CLUTCH (INCL. COVER, 9)
  • 8
    5438550 COVER, BAFFLE, CLUTCH, REAR
    COVER, BAFFLE, CLUTCH, REAR
  • 9
    5813607 FILTER, INTAKE, CLUTCH
    FILTER, INTAKE, CLUTCH
  • 10
    7518185 SCREW
    SCREW
  • 11
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 12
    5414275 HOSE, CLUTCH, INLET
    HOSE, CLUTCH, INLET
  • 13
    5414278 HOSE, CLUTCH, OUTLET
    HOSE, CLUTCH, OUTLET
  • 14
    7175488 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
  • 15
    7175883 DECAL, CLUTCH, RETAINING BOLT
    DECAL, CLUTCH, RETAINING BOLT
