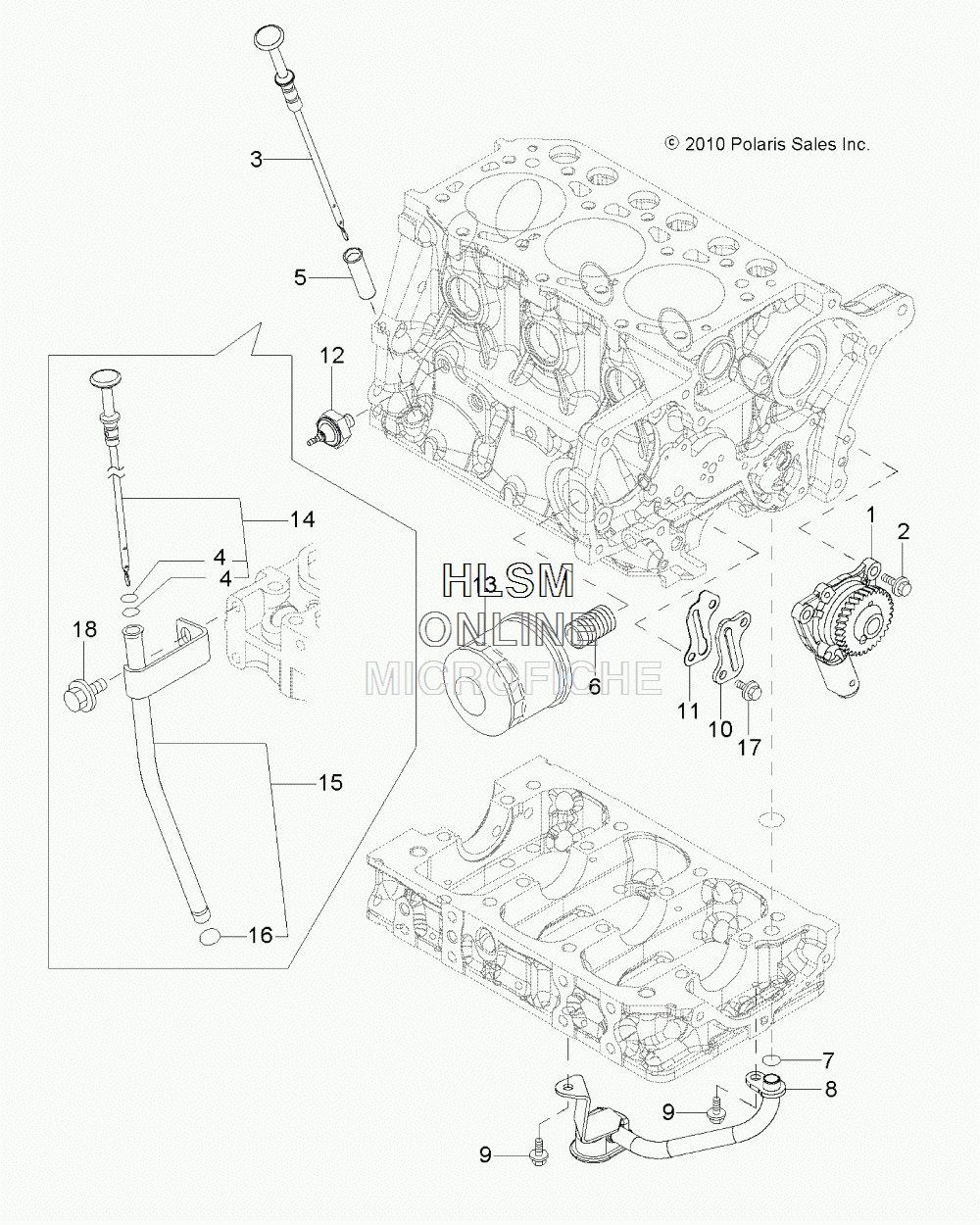

OIL SYSTEM AND DIPSTICK для Polaris RANGER 4X4 900 DIESEL - SAGEBRUSH METALLIC [R11TH90DG] - 2011 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3070118 ASM., OIL PUMP
    ASM., OIL PUMP
  • 2
    3070119 BOLT
    BOLT
  • 3
    3070120 DIPSTICK (BUILT 8/01/10 AND BEFORE)
    DIPSTICK (BUILT 8/01/10 AND BEFORE)
  • 4
    3070121 O-RING
    O-RING
  • 5
    3070122 GUIDE, DIPSTICK (BUILT 8/01/10 AND BEFORE)
    GUIDE, DIPSTICK (BUILT 8/01/10 AND BEFORE)
  • 6
    3070123 STUD
    STUD
  • 7
    3070124 O-RING
    O-RING
  • 8
    3070125 ASM., OIL PIPE
    ASM., OIL PIPE
  • 9
    3070126 BOLT
    BOLT
  • 10
    3070127 COVER
    COVER
  • 11
    3070128 PK
    PK
  • 12
    3070130 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 13
    3070131 ASM., OIL FILTER
    ASM., OIL FILTER
  • 14
    3070377 ASM., DIPSTICK TALL (BUILT 8/02/10 AND AFTER)
    ASM., DIPSTICK TALL (BUILT 8/02/10 AND AFTER)
  • 15
    3070378 GUIDE, DIPSTICK TALL (BUILT 8/02/10 AND AFTER)
    GUIDE, DIPSTICK TALL (BUILT 8/02/10 AND AFTER)
  • 16
    3070379 O-RING
    O-RING
  • 17
    3070126 BOLT, PLATED
    BOLT, PLATED
  • 18
    3070138 BOLT, PLATED
    BOLT, PLATED
