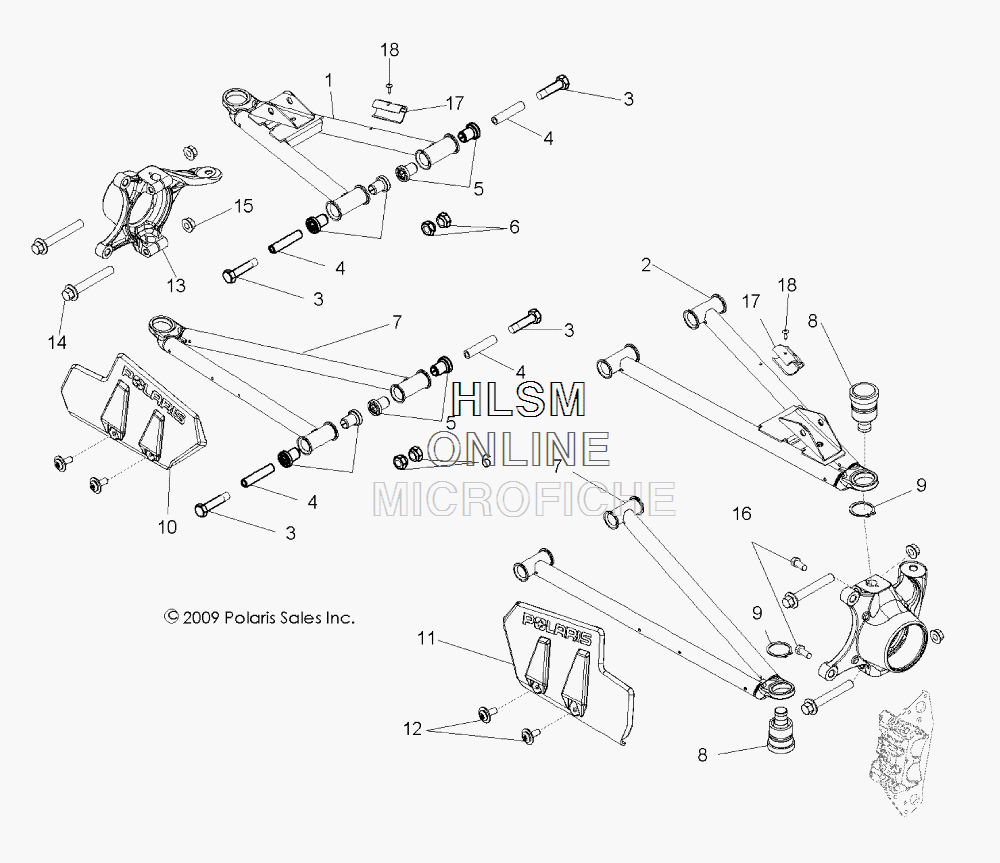

CONTROL ARMS - FRONT для Polaris RANGER 4X4 900 DIESEL - SAGEBRUSH METALLIC [R11TH90DG] - 2011 года выпуска
-
№АртикулНазвание
-
11017352-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 1/17/11 AND BEFORE)ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 1/17/11 AND BEFORE)
-
11018198-067 ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 1/18/11 AND AFTER)ARM, CONTROL, UPPER, FRONT, RIGHT HAND (BLACK) (BUILT 1/18/11 AND AFTER)
-
21017350-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 1/17/11 AND BEFORE)ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 1/17/11 AND BEFORE)
-
21018197-067 ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 1/18/11 AND AFTER)ARM, CONTROL, UPPER, FRONT, LEFT HAND (BLACK) (BUILT 1/18/11 AND AFTER)
-
37519043 SCREWSCREW
-
45335448 TUBE, PIVOT (BUILT 1/01/11 AND BEFORE)TUBE, PIVOT (BUILT 1/01/11 AND BEFORE)
-
45137591 SHAFT, PIVOT (BUILT 1/02/11 AND AFTER)SHAFT, PIVOT (BUILT 1/02/11 AND AFTER)
-
55434548 BUSHING, A-ARM, SHORT (BLACK)BUSHING, A-ARM, SHORT (BLACK)
-
67547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
71017386-067 ARM, CONTROL, LOWER, FRONT (BLACK) (BUILT 1/17/11 AND BEFORE)ARM, CONTROL, LOWER, FRONT (BLACK) (BUILT 1/17/11 AND BEFORE)
-
71018186-067 ARM, CONTROL, LOWER, FRONT (BLACK) (BUILT 1/18/11 AND AFTER)ARM, CONTROL, LOWER, FRONT (BLACK) (BUILT 1/18/11 AND AFTER)
-
87081666 JOINT, BALL, LONG STUDJOINT, BALL, LONG STUD
-
97710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
105437545-070 SHIELD, CV, FRONT, RIGHT HAND (BLACK)SHIELD, CV, FRONT, RIGHT HAND (BLACK)
-
115437544-070 SHIELD, CV, FRONT, LEFT HAND (BLACK)SHIELD, CV, FRONT, LEFT HAND (BLACK)
-
127512084 SCREWSCREW
-
135136948 CARRIER, WHEEL BEARING, LEFT HANDCARRIER, WHEEL BEARING, LEFT HAND
-
135136949 CARRIER, WHEEL BEARING, RIGHT HANDCARRIER, WHEEL BEARING, RIGHT HAND
-
147516733 SCREWSCREW
-
157547405 NUT, NYLOKNUT, NYLOK
-
167518760 BOLT (FRONT CALIPER ATTACH)BOLT (FRONT CALIPER ATTACH)
-
175436594 RETAINER, BRAKE LINERETAINER, BRAKE LINE
-
187512024 SCREWSCREW
