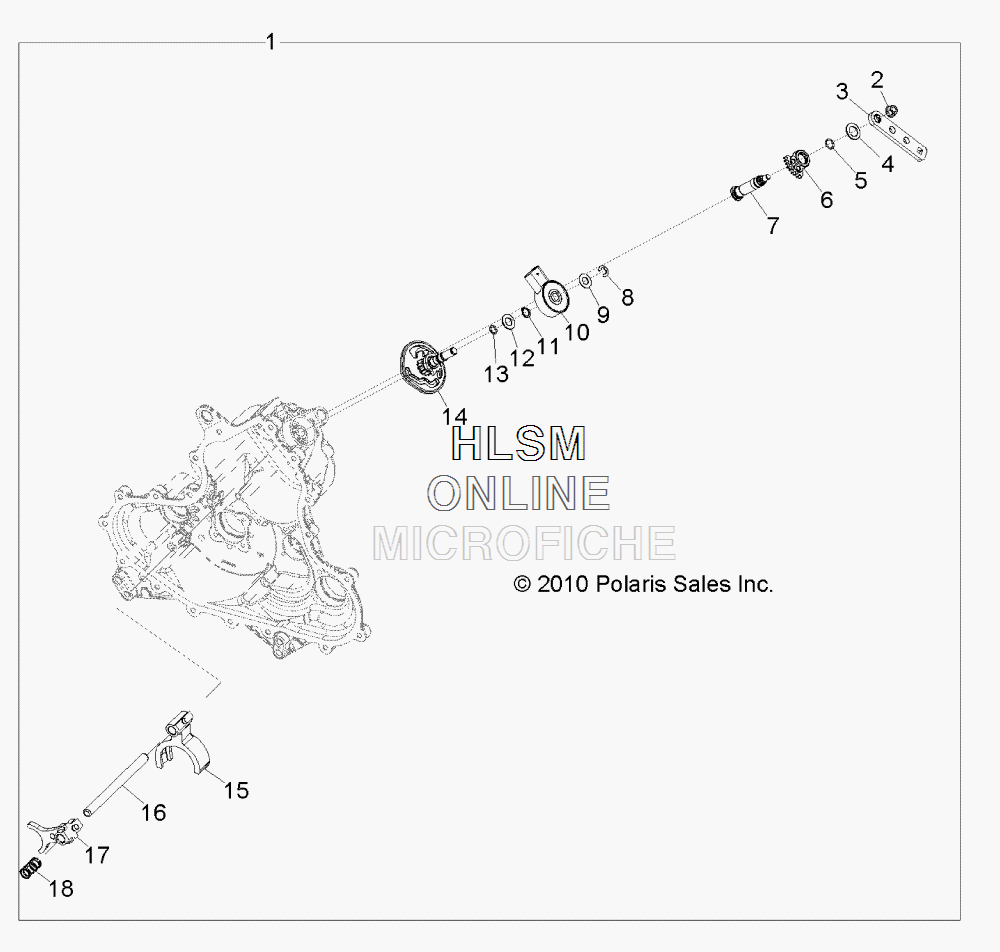

MAIN GEARCASE - SHIFTER ASSEMBLY для Polaris RANGER 4X4 900 DIESEL - SAGEBRUSH METALLIC [R11TH90DG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1332855 ASM., GEARCASE, MAIN (INCL. ALL)
    ASM., GEARCASE, MAIN (INCL. ALL)
  • 2
    3233961 NUT
    NUT
  • 3
    3233825 BELLCRANK
    BELLCRANK
  • 4
    3234637 WASHER, THRUST
    WASHER, THRUST
  • 5
    3233869 O-RING
    O-RING
  • 6
    3234694 GEAR, SECTOR, 38T
    GEAR, SECTOR, 38T
  • 7
    3234712 SHAFT, SHIFT, BELLCRANK
    SHAFT, SHIFT, BELLCRANK
  • 8
    3233834 RING, RETAINING
    RING, RETAINING
  • 9
    3234642 WASHER, THRUST
    WASHER, THRUST
  • 10
    3233835 SWITCH, ROTARY
    SWITCH, ROTARY
  • 11
    3234639 RING, RETAINING
    RING, RETAINING
  • 12
    3234636 WASHER, THRUST
    WASHER, THRUST
  • 13
    3234730 O-RING
    O-RING
  • 14
    3235244 SUBASM., SWITCH, SHAFT
    SUBASM., SWITCH, SHAFT
  • 15
    3234766 FORK, SHIFT
    FORK, SHIFT
  • 16
    3234714 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 17
    3234763 FORK, SHIFT
    FORK, SHIFT
  • 18
    3234687 SPRING, COMPRESSION
    SPRING, COMPRESSION
