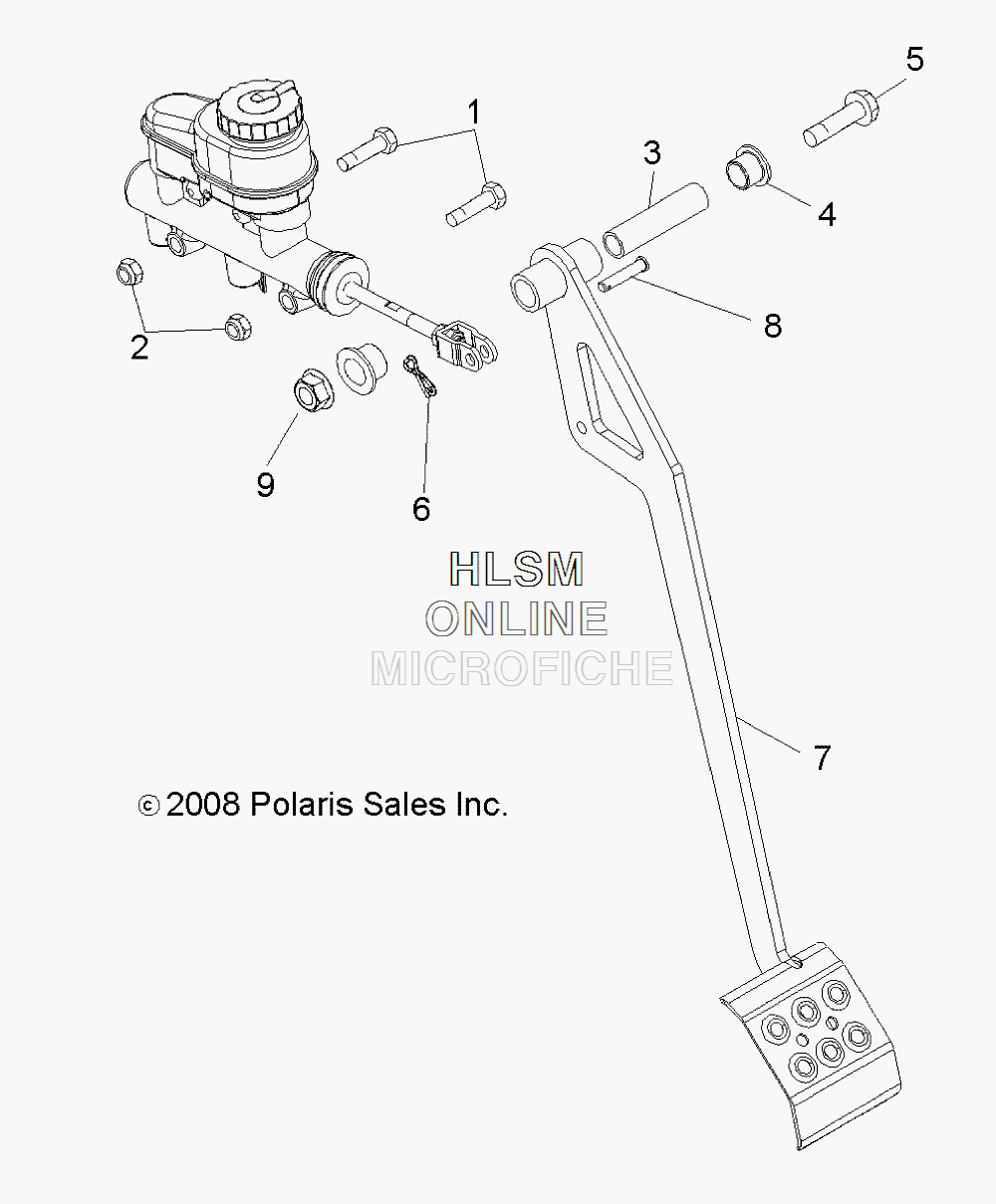

MASTER CYLINDER MOUNTING AND PEDAL для Polaris RANGER 4X4 500 CREW - SAGEBRUSH GREEN METALLIC [R11WH50AG] - 2011 года выпуска
-
№АртикулНазвание
-
17517281 SCREWSCREW
-
27547317 NUT-M8X1.25, HXFLG, NYLON INSNUT-M8X1.25, HXFLG, NYLON INS
-
35335739 TUBE, BRAKE PEDAL BUSHINGTUBE, BRAKE PEDAL BUSHING
-
45433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
57515417 SCREWSCREW
-
67661140 PIN, CLIP 14MMPIN, CLIP 14MM
-
71016684 PEDAL, BRAKE (BLACK)PEDAL, BRAKE (BLACK)
-
87661843 PIN-CLEVIS, 1/4 X 3/4 -YPIN-CLEVIS, 1/4 X 3/4 -Y
-
97542439 NUT, NYLOKNUT, NYLOK
