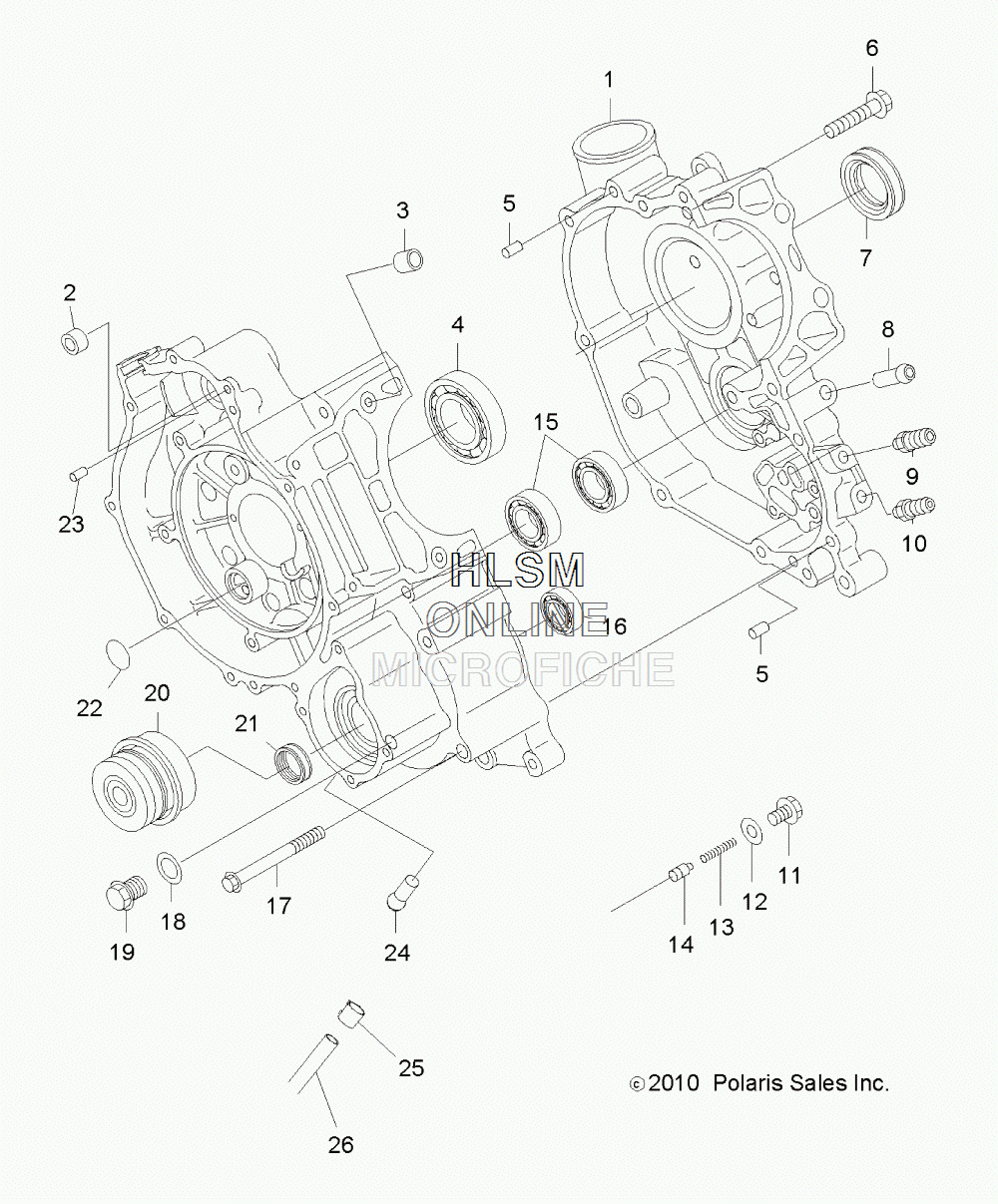

CRANKCASE для Polaris RANGER 4X4 500 CREW - SAGEBRUSH GREEN METALLIC [R11WH50AG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3089240 ASM., CRANKCASE (INCL. 2, 4, 5, 7, 8, 15-17, 20, 21, 23, 24)
    ASM., CRANKCASE (INCL. 2, 4, 5, 7, 8, 15-17, 20, 21, 23, 24)
  • 2
    3083669 BUSHING, STARTER
    BUSHING, STARTER
  • 3
    3087266 PIPE, KNOCK
    PIPE, KNOCK
  • 4
    3080676 BEARING, BALL
    BEARING, BALL
  • 5
    3084840 PIN, DOWEL
    PIN, DOWEL
  • 6
    3084205 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 7
    3084839 SEAL, OIL
    SEAL, OIL
  • 8
    3085525 PIPE, AIR BREATHER
    PIPE, AIR BREATHER
  • 9
    3087154 UNION
    UNION
  • 10
    3084842 UNION
    UNION
  • 11
    3084845 PLUG
    PLUG
  • 12
    3089450 GASKET, ALUMINUM
    GASKET, ALUMINUM
  • 13
    3084844 SPRING
    SPRING
  • 14
    3086810 VALVE, ONE WAY
    VALVE, ONE WAY
  • 15
    3084834 BEARING, BALL
    BEARING, BALL
  • 16
    3084835 BEARING, BALL
    BEARING, BALL
  • 17
    3084841 BOLT, FLANGE
    BOLT, FLANGE
  • 18
    3082956 GASKET
    GASKET
  • 19
    3086749 PLUG
    PLUG
  • 20
    3084837 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 21
    3084836 SEAL, OIL
    SEAL, OIL
  • 22
    3084847 O-RING
    O-RING
  • 23
    3086838 PIN, DOWEL
    PIN, DOWEL
  • 24
    3083798 PIPE, PULSE
    PIPE, PULSE
  • 25
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
