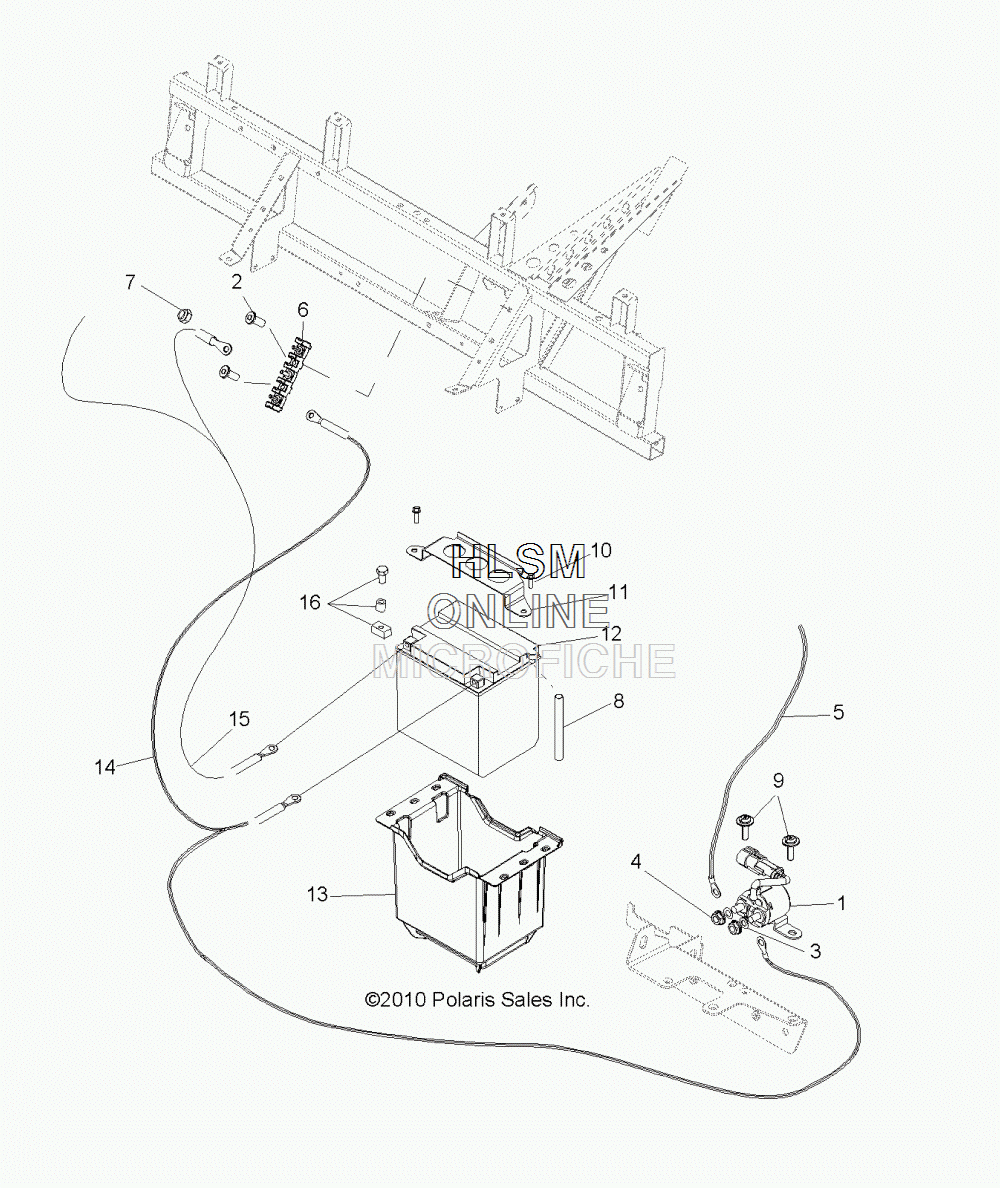

BATTERY для Polaris RANGER 4X4 500 CREW - SAGEBRUSH GREEN METALLIC [R11WH50AG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    4012001 SOLENOID, STARTER
    SOLENOID, STARTER
  • 2
    7518529 SCREW-M6X1.0X20, HXHD, FLG, TDFM, BL
    SCREW-M6X1.0X20, HXHD, FLG, TDFM, BL
  • 3
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 4
    7547270 NUT, HEX
    NUT, HEX
  • 5
    4012340 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 6
    4011892 BLOCK, TERMINAL
    BLOCK, TERMINAL
  • 7
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 8
    5435030 TUBE, BATTERY VENT
    TUBE, BATTERY VENT
  • 9
    7512084 SCREW
    SCREW
  • 10
    7518513 BOLT-M6X1.0X15, HXFLG, TAP/R-OD
    BOLT-M6X1.0X15, HXFLG, TAP/R-OD
  • 11
    5253552 BRACKET, BATTERY STRAP
    BRACKET, BATTERY STRAP
  • 12
    4012622 BATTERY-14AH, DRY W/O ACID
    BATTERY-14AH, DRY W/O ACID
  • 13
    5434037 BOX, BATTERY
    BOX, BATTERY
  • 14
    4011497 CABLE, BATTERY TO SOLENOID TERMINAL
    CABLE, BATTERY TO SOLENOID TERMINAL
  • 15
    4012339 CABLE, GROUND, SPLIT
    CABLE, GROUND, SPLIT
  • 16
    2204132 KIT-BATTERY BOLT
    KIT-BATTERY BOLT
