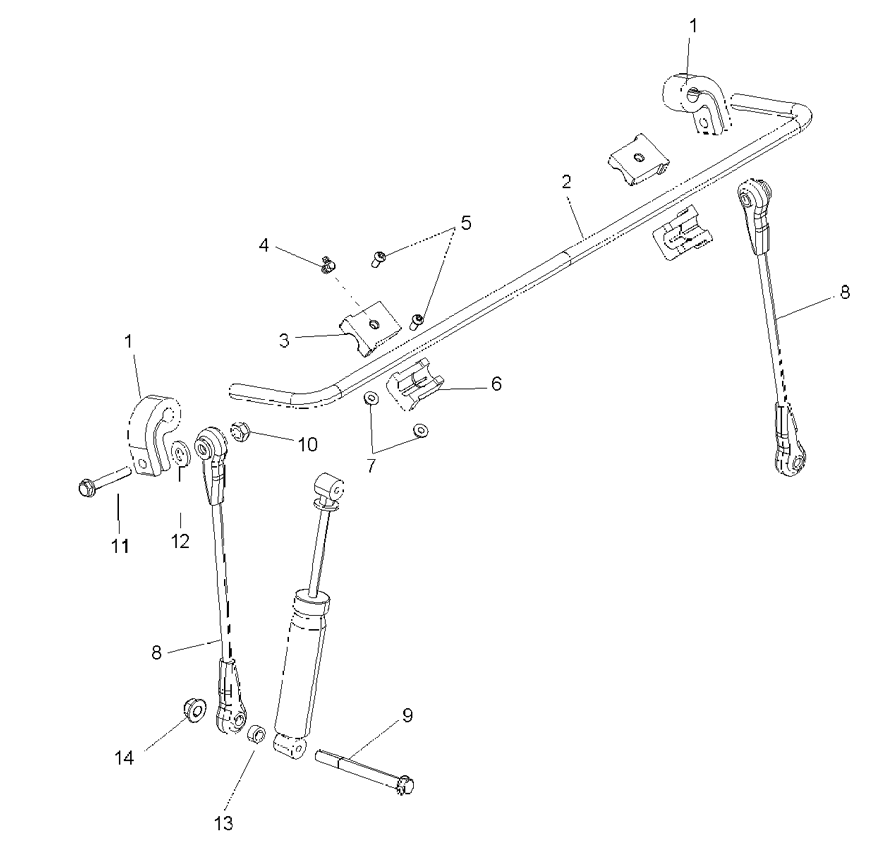

STABILIZER BAR - FRONT для Polaris RANGER 800 EFI RZG I.RED [R08VH76AD] - 2008 года выпуска
-
№АртикулНазвание
-
15135395 CLAMP-STAB BAR, FRTCLAMP-STAB BAR, FRT
-
25334947-329 BAR-STABILIZER, FRONTBAR-STABILIZER, FRONT
-
35436480 BUSHING-SWAY BARBUSHING-SWAY BAR
-
47080438 FITTING, LUBE.FITTING, LUBE.
-
57518656 BOLT-M6X1.0X15,PH/TX-OLIVE DBOLT-M6X1.0X15,PH/TX-OLIVE D
-
65436513 BUSHING-SWAYBAR,LOWERBUSHING-SWAYBAR,LOWER
-
77547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
-
81521115 ASM-LINK,SWAY BARASM-LINK,SWAY BAR
-
97518466 BOLT-M10X1.5X85,HX HD FLGBOLT-M10X1.5X85,HX HD FLG
-
107547385 NUT-NY INS,M10X1.5,HEX,ZINC,YWNUT-NY INS,M10X1.5,HEX,ZINC,YW
-
117518474 BOLT-M10X1.5X55,HX HD FLGBOLT-M10X1.5X55,HX HD FLG
-
127555806 WASHER,FLATWASHER,FLAT
-
135334945 SPACER-.625X.407X.375SPACER-.625X.407X.375
-
147547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
