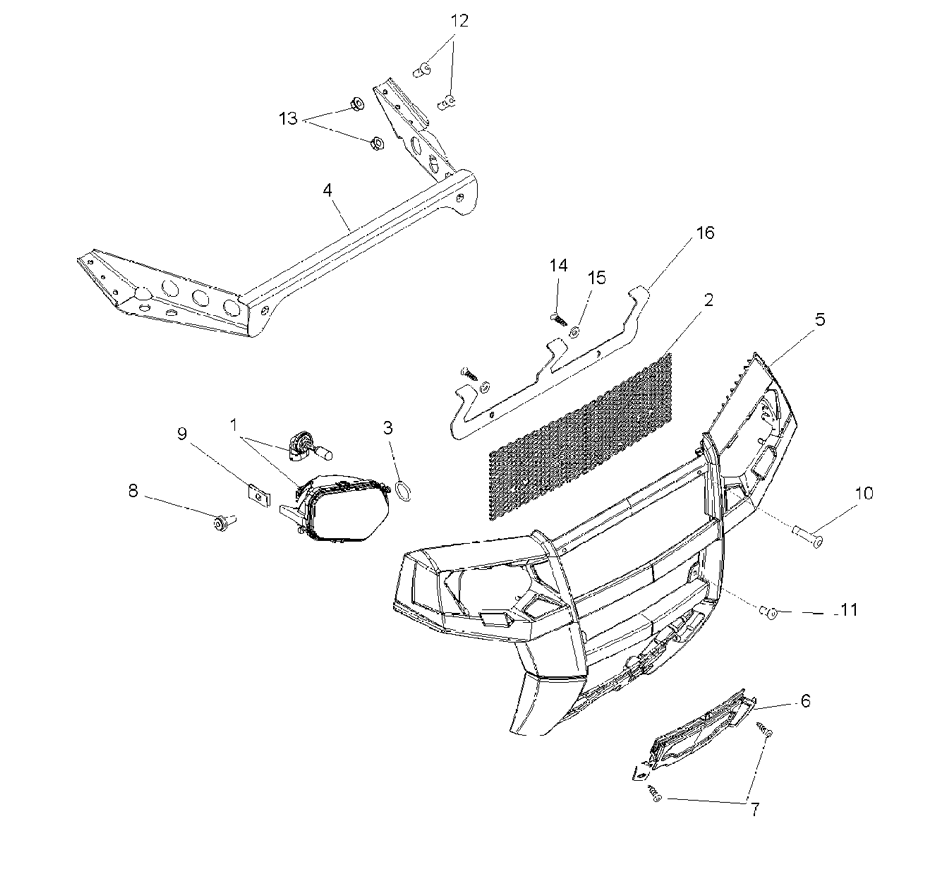

FRONT SUPPORT AND HEADLIGHTS для Polaris RANGER 800 EFI RZG I.RED [R08VH76AD] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2410615 ASM-HEADLIGHT,BUMPER, LEFT HAND
    ASM-HEADLIGHT,BUMPER, LEFT HAND
  • 1
    4010253 BULB-HEADLIGHT,50 WATT
    BULB-HEADLIGHT,50 WATT
  • 1
    2410616 ASM-HEADLIGHT,BUMPER, RIGHT HAND
    ASM-HEADLIGHT,BUMPER, RIGHT HAND
  • 2
    5250339-458 BRKT-SCREEN,RADIATOR,MATTE BLACK
    BRKT-SCREEN,RADIATOR,MATTE BLACK
  • 3
    5410163 O RING
    O RING
  • 4
    1015856-329 WELD-BUMPER SUPPORT,FRT,E-COAT
    WELD-BUMPER SUPPORT,FRT,E-COAT
  • 5
    2633417-070 ASM-BUMPER,FR, BLACK
    ASM-BUMPER,FR, BLACK
  • 6
    5436611-070 COVER-WINCH POCKET, BLACK
    COVER-WINCH POCKET, BLACK
  • 7
    7512026 SCREW
    SCREW
  • 8
    7518196 SCR-10-24X3/4 PH/TX/TRI-SEMS Y
    SCR-10-24X3/4 PH/TX/TRI-SEMS Y
  • 9
    7670112 NUT-#10,U-TYPE,A(.065-.087)
    NUT-#10,U-TYPE,A(.065-.087)
  • 10
    7518375 SCR-1/4-20X1.50 TR/TX-M
    SCR-1/4-20X1.50 TR/TX-M
  • 11
    7518280 SCR-1/4-20X.75,TR/TX-M
    SCR-1/4-20X.75,TR/TX-M
  • 12
    7518656 BOLT-M6X1.0X15,PH/TX-OLIVE D
    BOLT-M6X1.0X15,PH/TX-OLIVE D
  • 13
    7547339 NUT-M6X1.0,FLG-NYLOC-OLIVE D
    NUT-M6X1.0,FLG-NYLOC-OLIVE D
  • 14
    7517441 SCREW, .75
    SCREW, .75
  • 15
    7556034 WASHER
    WASHER
  • 16
    5251992 BRKT-BUMPER,RETAINER,YZ
    BRKT-BUMPER,RETAINER,YZ
