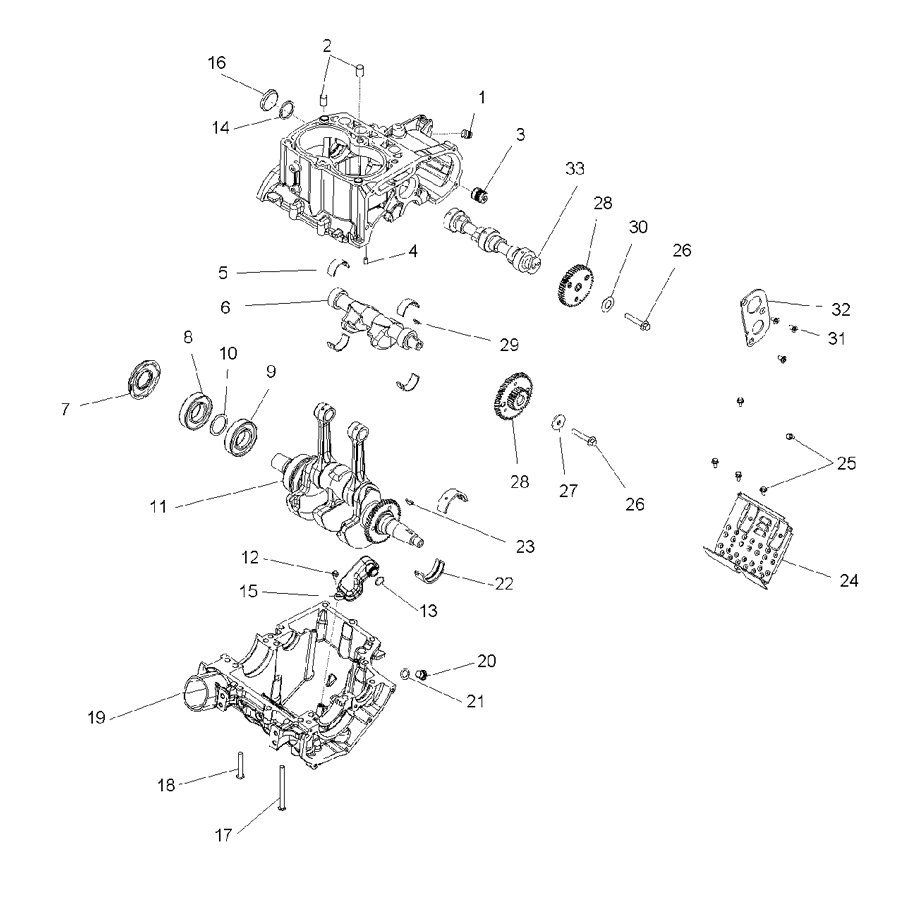

CRANKCASE / CRANKSHAFT для Polaris RANGER 800 EFI RZG I.RED [R08VH76AD] - 2008 года выпуска`
-
№АртикулНазвание
-
-2203305 KIT-SHORT BLOCK 800 EFIKIT-SHORT BLOCK 800 EFI
-
17051531 PLUG,EXPANSION,9MM,500PSIPLUG,EXPANSION,9MM,500PSI
-
27661175 DOWEL-HOL,M16X12DOWEL-HOL,M16X12
-
37052288 PLUGPLUG
-
47663001 PIN, DOWELPIN, DOWEL
-
55132753 BEARING-JOURNAL BAL SHAFTBEARING-JOURNAL BAL SHAFT
-
65134837 SHAFT-BALANCESHAFT-BALANCE
-
75412676 SEAL-FLANGE 35X72X7 REPSEAL-FLANGE 35X72X7 REP
-
83514361 BEARING-BALL,DP GRVBEARING-BALL,DP GRV
-
93514318 BEARING,BALLBEARING,BALL
-
107556194 BUSHING-35X44X3.00 MM-BBUSHING-35X44X3.00 MM-B
-
112203068 KIT-CRANKSHAFTKIT-CRANKSHAFT
-
127516603 BOLT(1)BOLT(1)
-
135413013 O-RING,0.551X0.070O-RING,0.551X0.070
-
147710512 RING-RETAINING,1 5/8RING-RETAINING,1 5/8
-
151203255 ASM-OIL PICKUPASM-OIL PICKUP
-
163060004 PLUG,EXPANSION,48MMPLUG,EXPANSION,48MM
-
177517792 SCR-M8X1.25X90 HX/FL-YSCR-M8X1.25X90 HX/FL-Y
-
187517793 SCR-M8X1.25X50 HX/FL-YSCR-M8X1.25X50 HX/FL-Y
-
192203301 KIT-CRANKCASEKIT-CRANKCASE
-
207052306 PLUG-SOCKET,M12X1.5 DIN 908APLUG-SOCKET,M12X1.5 DIN 908A
-
215812232 WASHER-19X12X1.3-COPPERWASHER-19X12X1.3-COPPER
-
223585704 BEARING,MAIN JOURNALBEARING,MAIN JOURNAL
-
237721117 KEY,WOODRUFFKEY,WOODRUFF
-
245249837 PLATE-BAFFLE,CRANKCASEPLATE-BAFFLE,CRANKCASE
-
257518045 SCR-M5X.80X8-HX/FL-Y/DSCR-M5X.80X8-HX/FL-Y/D
-
267517865 SCREW,M8X1.25X45 HX/FL-DSCREW,M8X1.25X45 HX/FL-D
-
277555982 WASHER,RETAINING,8.5X28X3WASHER,RETAINING,8.5X28X3
-
282203106 KIT-GEAR SET ATVKIT-GEAR SET ATV
-
297721131 KEY-WOOD RUFF,#404KEY-WOOD RUFF,#404
-
307556183 WASHER-SPRING,1.1X.559X.0315WASHER-SPRING,1.1X.559X.0315
-
317517598 SCREWSCREW
-
325244286 PLATE-THRUSTPLATE-THRUST
-
332202918 KIT-CAMSHAFT (INC CAM AND LIFTERS)KIT-CAMSHAFT (INC CAM AND LIFTERS)
