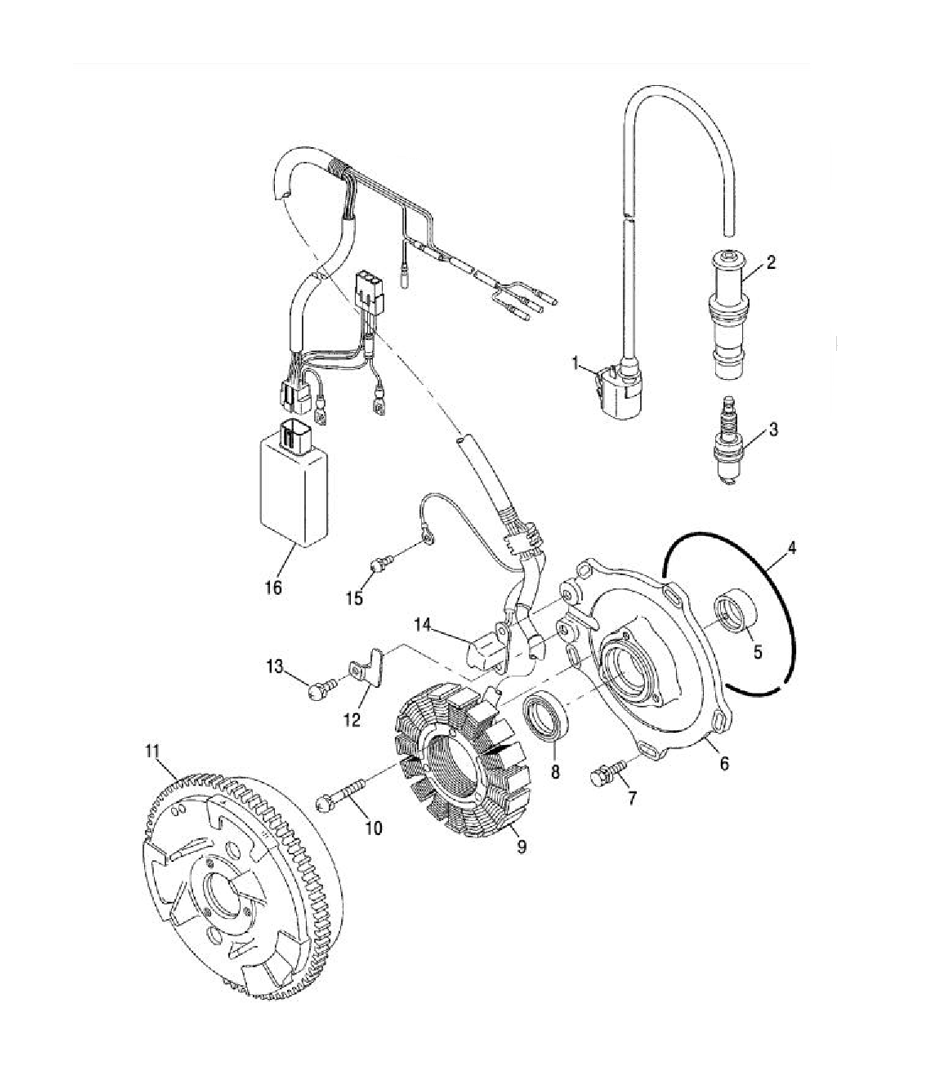

MAGNETO для Polaris RANGER 500 4X4 [R06RB50AA] - 2006 года выпуска
-
№АртикулНазвание
-
13089239 ASM., IGNITION COIL (INCL. 1,2)ASM., IGNITION COIL (INCL. 1,2)
-
23084980 SPARK PLUG CAPSPARK PLUG CAP
-
33070175 SPARKPLUG, BKR5E(4)SPARKPLUG, BKR5E(4)
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63089577 ASM., PLATE (INCL. 5,6,8-10,12-15)ASM., PLATE (INCL. 5,6,8-10,12-15)
-
63089248 PLATEPLATE
-
73081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
83084973 SEAL, OILSEAL, OIL
-
93089579 STATOR (INCL. 14)STATOR (INCL. 14)
-
103089547 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
113089544 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
-
123089250 BAND-PULSEBAND-PULSE
-
133084976 SCREWANDWASHER ASM.SCREWANDWASHER ASM.
-
143085360 COIL, PULSERCOIL, PULSER
-
153081256 SCREWANDWASHER ASMSCREWANDWASHER ASM
-
163089238 CDI SYSTEMCDI SYSTEM
