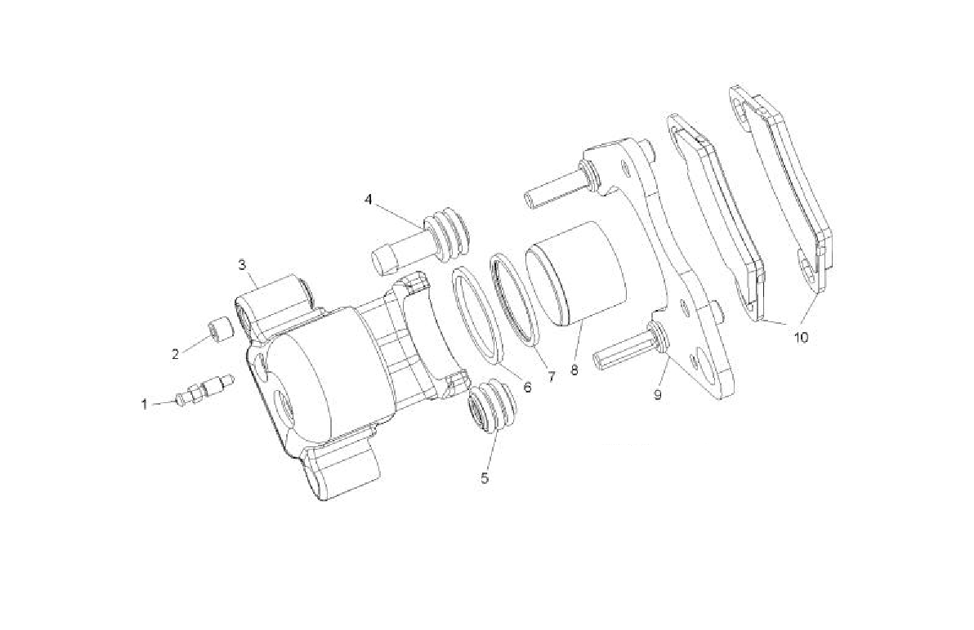

BRAKE CALIPER - FRONT для Polaris RANGER 500 4X4 [R06RB50AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1910843 ASM-CALIPER, BRAKE,1.5, RIGHT HAND
    ASM-CALIPER, BRAKE,1.5, RIGHT HAND
  • 1910844 ASM-CALIPER, BRAKE,1.5, LEFT HAND
    ASM-CALIPER, BRAKE,1.5, LEFT HAND
  • 1
    7080352 SCREW, BLEEDER
    SCREW, BLEEDER
  • 2
    7515489 SCR-3/8-24X5/16 SOC SET-Y
    SCR-3/8-24X5/16 SOC SET-Y
  • 3
    5134717 ASM-CALIPER, BRAKE,1.5,LH
    ASM-CALIPER, BRAKE,1.5,LH
  • 3
    5134718 ASM-CALIPER, BRAKE,1.5,RH
    ASM-CALIPER, BRAKE,1.5,RH
  • 3
    1930642 KIT, BOOT,FRONT BRAKE
    KIT, BOOT,FRONT BRAKE
  • 4
    5410495 BOOT-PIN BUSHING (BUILT BEFORE 10/17/05)
    BOOT-PIN BUSHING (BUILT BEFORE 10/17/05)
  • 4
    5412505 BOOT-PIN BUSHING (BUILT AFTER 10/17/05)
    BOOT-PIN BUSHING (BUILT AFTER 10/17/05)
  • 5
    5410494 BOOT-PIN SEAL (BUILT AFTER 10/17/05)
    BOOT-PIN SEAL (BUILT AFTER 10/17/05)
  • 5
    5412506 BOOT-PIN SEAL (BUILT AFTER 10/17/05)
    BOOT-PIN SEAL (BUILT AFTER 10/17/05)
  • 6
    5412010 SEAL-CALIPER INNER, 1.50''
    SEAL-CALIPER INNER, 1.50''
  • 7
    5412011 SEAL-CALIPER, OUTER,1.50''
    SEAL-CALIPER, OUTER,1.50''
  • 8
    5132829 PISTON-BRAKE, 1.500
    PISTON-BRAKE, 1.500
  • 9
    1910513 ASM-CALIPER MOUNT
    ASM-CALIPER MOUNT
  • 10
    2202413 KIT-BRAKE PAD, ASM,1.5
    KIT-BRAKE PAD, ASM,1.5
