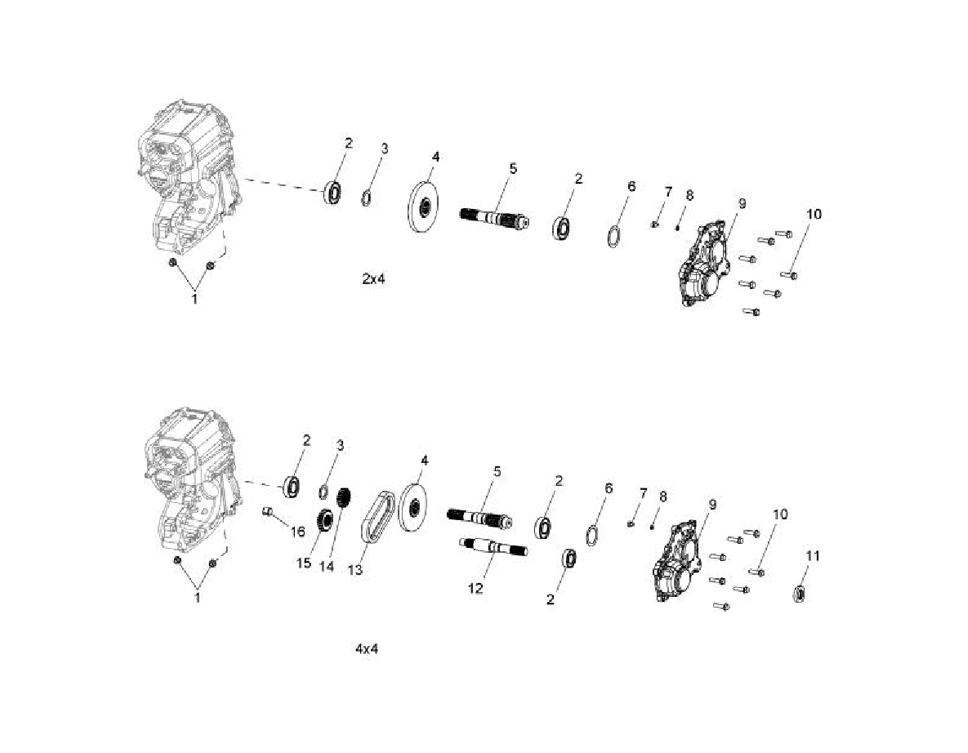

GEARCASE - OUTPUT SHAFT для Polaris RANGER 500 4X4 [R06RB50AA] - 2006 года выпуска

  • №
    Артикул
    Название
  • -
    1332351 GEARCASE ASM, MAIN
    GEARCASE ASM, MAIN
  • 1
    3234043 NUT
    NUT
  • 2
    3233019 BEARING (QTY. 4 FOR 4X4)
    BEARING (QTY. 4 FOR 4X4)
  • 3
    3233619 WASHER, THRUST
    WASHER, THRUST
  • 4
    3230001 SUBASM-LAPPED BEVEL, GEAR SET (INCL. 29 FROM GEARCASE, INTERNAL)
    SUBASM-LAPPED BEVEL, GEAR SET (INCL. 29 FROM GEARCASE, INTERNAL)
  • 4
    3234361 SUBASM-LAPPED BEVEL, GEAR SET (INCL. 29 FROM GEARCASE, INTERNAL)
    SUBASM-LAPPED BEVEL, GEAR SET (INCL. 29 FROM GEARCASE, INTERNAL)
  • 6
    3233611 SHIM
    SHIM
  • 7
    3233583 SHIM .450 X .265
    SHIM .450 X .265
  • 8
    3233582 BUTTON, THRUST
    BUTTON, THRUST
  • 9
    3234132 COVER-FRONT OUTPUT, MACH
    COVER-FRONT OUTPUT, MACH
  • 10
    3234114 SCR-TAPPING HEX WASHER HD 5/16
    SCR-TAPPING HEX WASHER HD 5/16
  • 11
    3233842 SEAL-VITON, TRIPLE LIP
    SEAL-VITON, TRIPLE LIP
  • 12
    3233625 SHAFT, FRONT OUTPUT
    SHAFT, FRONT OUTPUT
  • 13
    3233408 CHAIN, SILENT,40P,11W
    CHAIN, SILENT,40P,11W
  • 14
    3233843 SPROCKET-19T
    SPROCKET-19T
  • 15
    3233844 SPROCKET-22T
    SPROCKET-22T
  • 16
    3233552 BUSHING, GARLOCK
    BUSHING, GARLOCK
