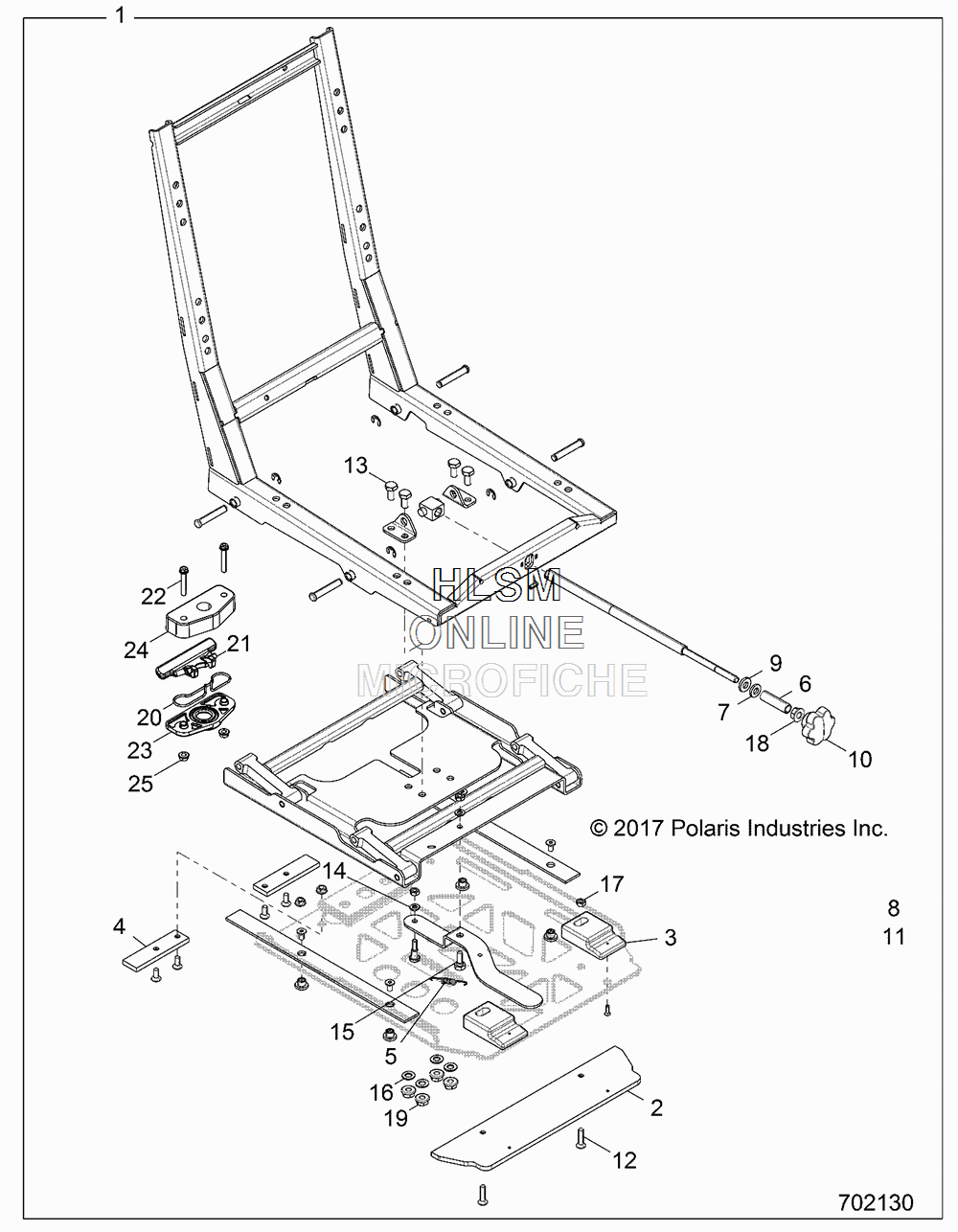

SEAT BASE ADJUSTER для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска
-
№АртикулНазвание
-
11023801-458 ASM-SEAT ADJUSTER RZR, BLACK (INCL.2-19)ASM-SEAT ADJUSTER RZR, BLACK (INCL.2-19)
-
25454511 SPACER FRONT,SPACER FRONT,
-
35454513 SEAT LOCK SUPPORT FRONT,SEAT LOCK SUPPORT FRONT,
-
45454514 SPACER REAR,SPACER REAR,
-
55140951 SPRING 40MMSPRING 40MM
-
65140952 SPACER-M8X9MMSPACER-M8X9MM
-
75454711 WASHER 8.4X16.7WASHER 8.4X16.7
-
87547926 NUT-HXFLGHD, M6NUT-HXFLGHD, M6
-
97557120 WASHER 8.4X18WASHER 8.4X18
-
105454788 KNOB M8KNOB M8
-
117710906 RING-RETAINING M7RING-RETAINING M7
-
127520572 SCR-HEX COUNTERSUNK HEAD M6X25SCR-HEX COUNTERSUNK HEAD M6X25
-
137520573 SCR-HEXAGONAL M8X16 0702794SCR-HEXAGONAL M8X16 0702794
-
147557011 WASHER-6.4X12WASHER-6.4X12
-
157520575 BOLT-SOLDER M8X18BOLT-SOLDER M8X18
-
167557010 WASHER-M8.4X1.6WASHER-M8.4X1.6
-
177547850 NUT-HEXAGONAL M6X5.2X1NUT-HEXAGONAL M6X5.2X1
-
187547847 NUT-M8X1.25NUT-M8X1.25
-
197547849 NUT-FLANGE HEX M8X8X1.25NUT-FLANGE HEX M8X8X1.25
-
207081466 SPRING-LATCH, SEAT?SPRING-LATCH, SEAT?
-
215453437 LEVER-LATCH, SEAT?LEVER-LATCH, SEAT?
-
227519280 SCR-HXFL, M6X1.0X35, W/PATCHLOKSCR-HXFL, M6X1.0X35, W/PATCHLOK
-
235437120 CAP-LATCH, SEAT?CAP-LATCH, SEAT?
-
245437119 BODY-LATCH, SEAT?BODY-LATCH, SEAT?
-
257547270 NUT-HXFLGHD, M6, SERRATEDNUT-HXFLGHD, M6, SERRATED
