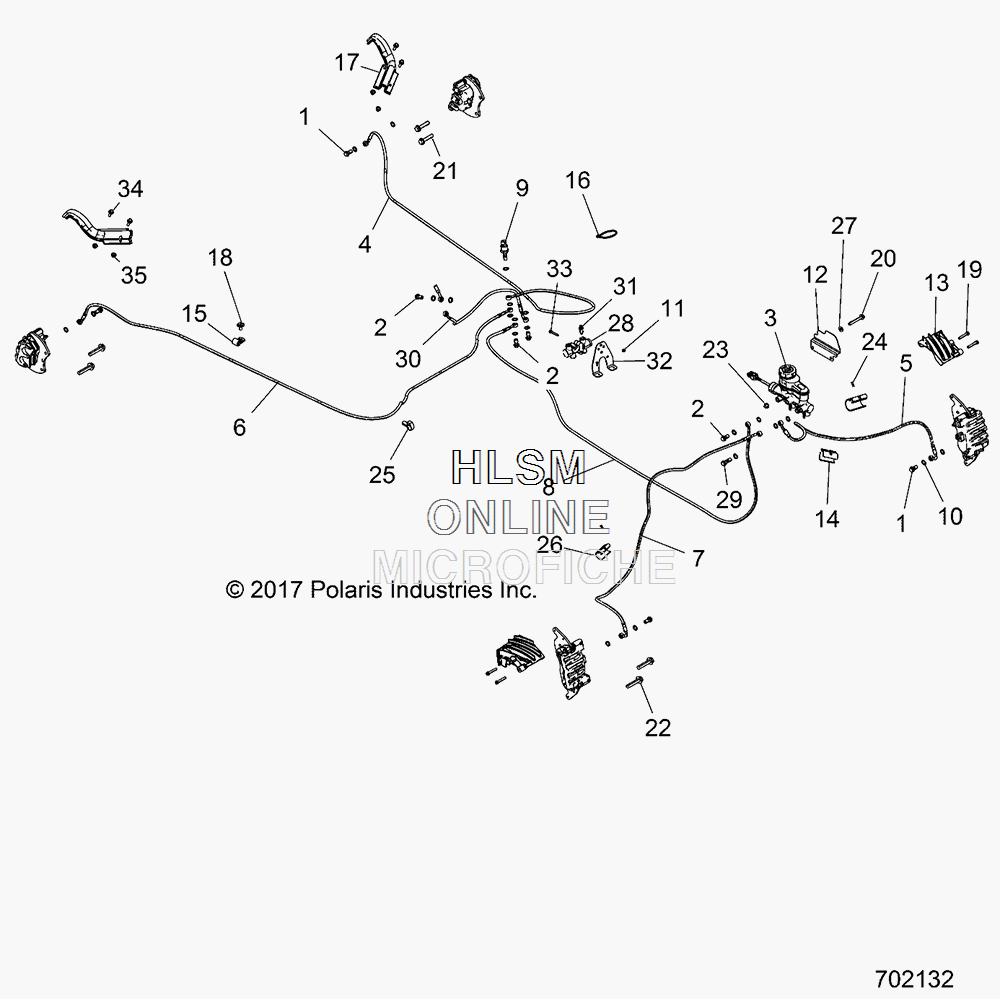

BRAKE LINES AND MASTER CYLINDER для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1910499 BOLT, BANJO, 10MMX1.00
    BOLT, BANJO, 10MMX1.00
  • 2
    1910958 BOLT, BANJO, 10MM X 1.25-6G
    BOLT, BANJO, 10MM X 1.25-6G
  • 3
    1911982 ASM., TANDEM MASTER CYLINDER
    ASM., TANDEM MASTER CYLINDER
  • 4
    1912834 LINE-BRAKE, RL, 70, 0B, 20SB, 270°
    LINE-BRAKE, RL, 70, 0B, 20SB, 270°
  • 5
    1912845 LINE-BRK, FL, 35", 20B, 90SB, 123°,
    LINE-BRK, FL, 35", 20B, 90SB, 123°,
  • 6
    1912835 LINE-BRAKE, RR, 81.5, 0B, 20SB, 250°
    LINE-BRAKE, RR, 81.5, 0B, 20SB, 250°
  • 7
    1912846 LINE-BRK, FR, 45.1, 70B, 90SB, 160°,
    LINE-BRK, FR, 45.1, 70B, 90SB, 160°,
  • 8
    1912836 LINE-BRAKE, MCT, 68.39", 0SB, 20SB
    LINE-BRAKE, MCT, 68.39", 0SB, 20SB
  • 9
    4014262 SWITCH, BRAKE, DOUBLE, SEALED
    SWITCH, BRAKE, DOUBLE, SEALED
  • 10
    5413212 SEAL, STAT
    SEAL, STAT
  • 11
    7542122 NUT-1/4-20-(NYLOK)-Y
    NUT-1/4-20-(NYLOK)-Y
  • 12
    5259049 SHIELD, MASTER CYLINDER
    SHIELD, MASTER CYLINDER
  • 13
    5633829 SCRAPER, RZR, T, FRONT, LEFT HAND
    SCRAPER, RZR, T, FRONT, LEFT HAND
  • 13
    5633830 SCRAPER, RZR, T, FRONT, RIGHT HAND
    SCRAPER, RZR, T, FRONT, RIGHT HAND
  • 14
    5451487 CLIP, BRAKE LINE
    CLIP, BRAKE LINE
  • 15
    7081246 CLAMP-WIRE/TUBE .25 DIA
    CLAMP-WIRE/TUBE .25 DIA
  • 16
    7080761 CABLE TIE, 14 IN
    CABLE TIE, 14 IN
  • 17
    5454095 GUIDE, RZR, XP, REAR, LEFT HAND
    GUIDE, RZR, XP, REAR, LEFT HAND
  • 17
    5454096 GUIDE, RZR, XP, REAR, RIGHT HAND
    GUIDE, RZR, XP, REAR, RIGHT HAND
  • 18
    7518176 SCREW
    SCREW
  • 19
    7519280 SCR-HXFL, M6X1.0X35, W/PATCHLOK
    SCR-HXFL, M6X1.0X35, W/PATCHLOK
  • 20
    7519298 SCREW
    SCREW
  • 21
    7518559 BOLT, HEX FLANGE
    BOLT, HEX FLANGE
  • 22
    7518760 BOLT, HEX FLANGE W/PATCH
    BOLT, HEX FLANGE W/PATCH
  • 23
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 24
    7621323 RIVET
    RIVET
  • 25
    7670102 CLIP
    CLIP
  • 26
    5451488 CLIP, BRAKE LINE, INNER
    CLIP, BRAKE LINE, INNER
  • 27
    7555954 WASHER
    WASHER
  • 28
    1911185 BLOCK-DIST, BRAKE, LONG PISTON
    BLOCK-DIST, BRAKE, LONG PISTON
  • 29
    1911194 BOLT-DOUBLE BANJO, M10X1.25
    BOLT-DOUBLE BANJO, M10X1.25
  • 30
    1912837 LINE-BRAK, MCR, 19.09", 70SB, 20SB
    LINE-BRAK, MCR, 19.09", 70SB, 20SB
  • 31
    1912838 BOLT-BLEEDER, SHORT
    BOLT-BLEEDER, SHORT
  • 32
    5263649-458 BRKT BLOCK-DIST, BRAKE, BLACK
    BRKT BLOCK-DIST, BRAKE, BLACK
  • 33
    7512130 SCR-HH-1/4-20X1.75 GR5 ZY3
    SCR-HH-1/4-20X1.75 GR5 ZY3
  • 34
    7519121 SCR-HXFL-M6X1.0X20 8.8 RIE
    SCR-HXFL-M6X1.0X20 8.8 RIE
  • 35
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
