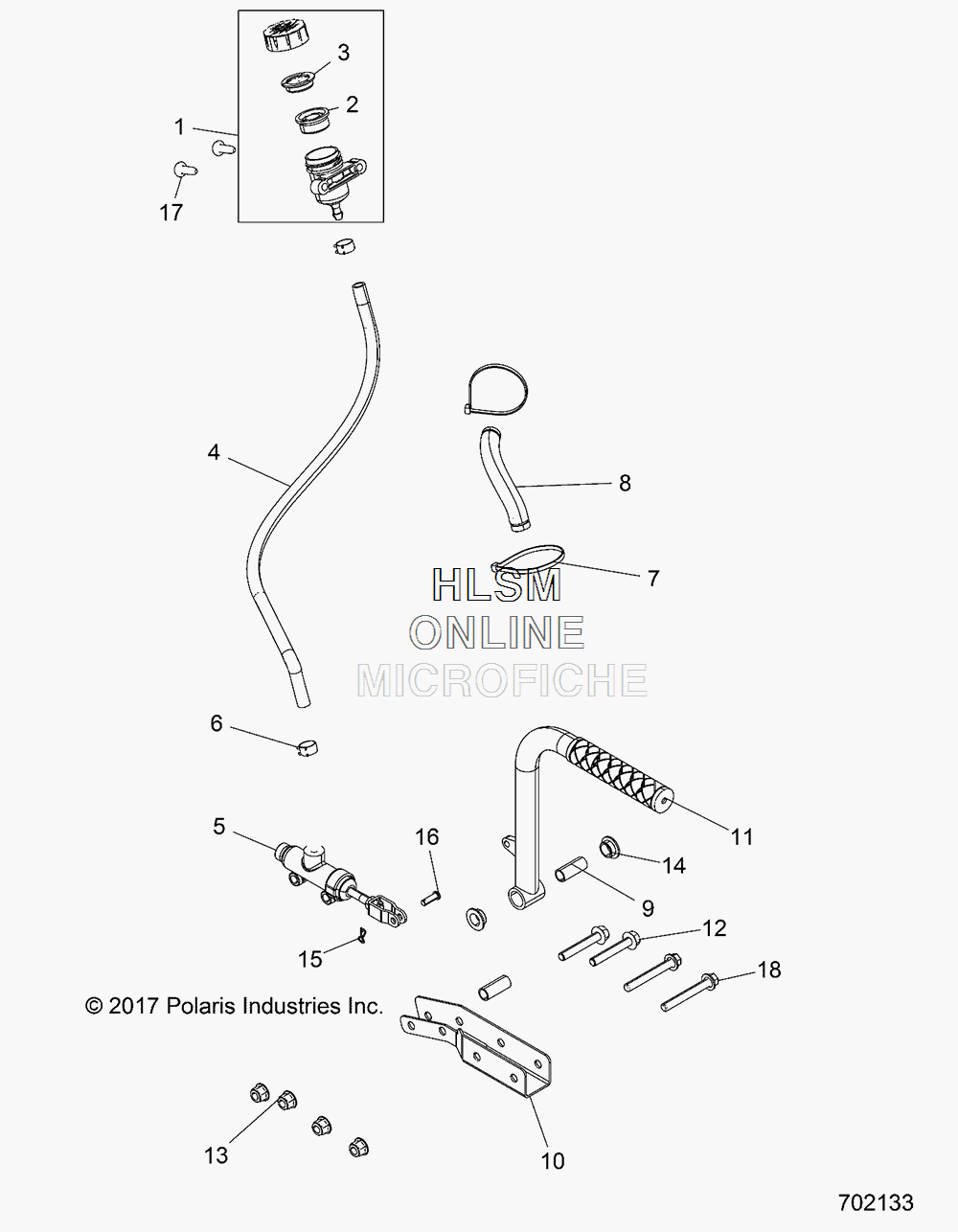

BRAKE - PARK для Polaris RZR XP TURBO TRCT [Z18VDS92CU] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911224 ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. 2-3)
    ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. 2-3)
  • 2
    5413262 DIAPHRAGM-RESERVOIR, BRAKE
    DIAPHRAGM-RESERVOIR, BRAKE
  • 3
    5437041 RING-RESERVOIR, BRAKE
    RING-RESERVOIR, BRAKE
  • 4
    1911267-400 HOSE-RESERVOIR, BRAKE, 400MM
    HOSE-RESERVOIR, BRAKE, 400MM
  • 5
    1911551 ASM-M/CYL FOOT, 3/4 IN, MT, DOWN
    ASM-M/CYL FOOT, 3/4 IN, MT, DOWN
  • 6
    7080003 HOSE CLAMP, RED
    HOSE CLAMP, RED
  • 7
    7080138 PANDUIT STRAP
    PANDUIT STRAP
  • 8
    8360052-13 TUBING-CONVOLUTED, .50 ID, 13CM
    TUBING-CONVOLUTED, .50 ID, 13CM
  • 9
    5135720 SPACER-12.7X10.2X30.5MM
    SPACER-12.7X10.2X30.5MM
  • 10
    5263350-458 BRACKET, SCNDRY BK, RZR T, TR, BLACK
    BRACKET, SCNDRY BK, RZR T, TR, BLACK
  • 11
    5416240-070 GRIP-HANDLEBAR, TR, BLACK
    GRIP-HANDLEBAR, TR, BLACK
  • 12
    7516732 SCR-M8X1.25X45-HX/FL-Y
    SCR-M8X1.25X45-HX/FL-Y
  • 13
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 14
    5439274 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 15
    7661140 PIN-CLIP, 14MM
    PIN-CLIP, 14MM
  • 16
    7661843 PIN-CLEVIS, 1/4 X 3/4 -Y
    PIN-CLEVIS, 1/4 X 3/4 -Y
  • 17
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 18
    7517281 SCR-M8X1.25X55, HX/FL-Y
    SCR-M8X1.25X55, HX/FL-Y
