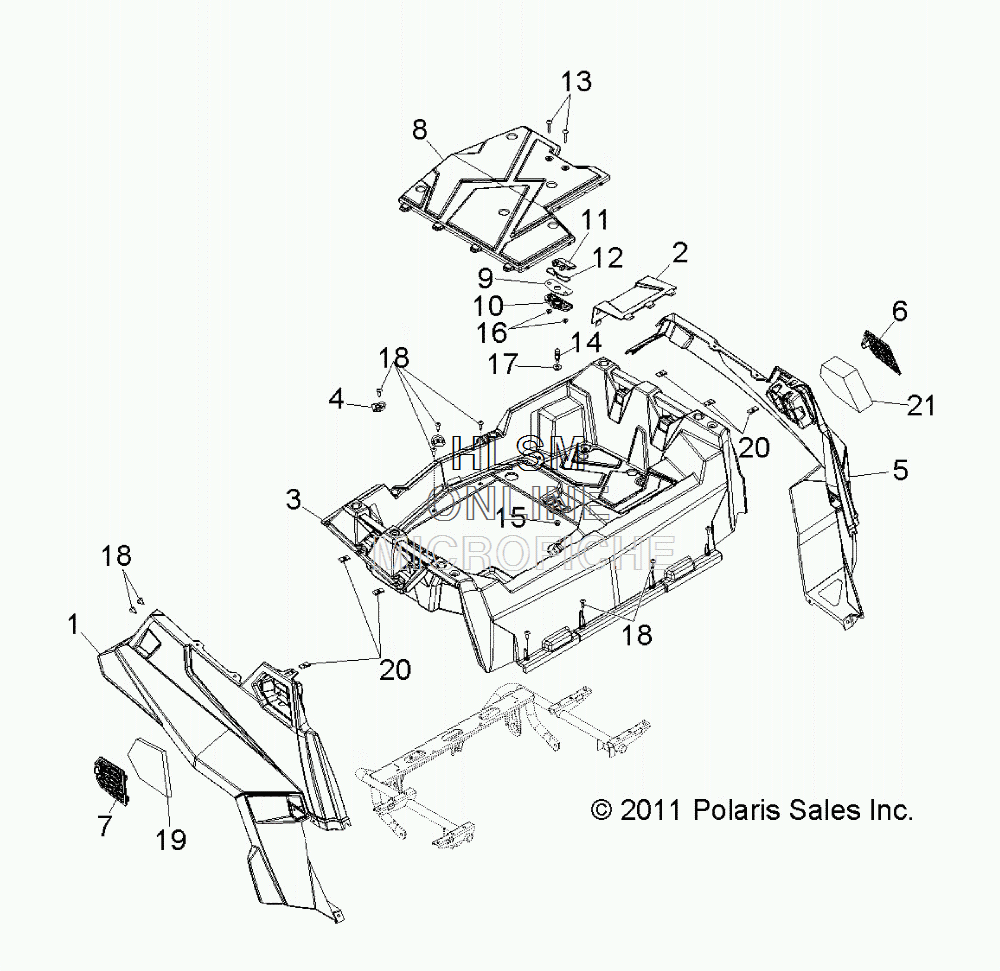

REAR RACK AND FENDERS для Polaris RZR 900 INDY RED [Z14JT87AD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    5438732-070 PANEL, FLAIR, BOX SIDE, RIGHT HAND, BLACK
    PANEL, FLAIR, BOX SIDE, RIGHT HAND, BLACK
  • 2
    5438733-070 LID, MAINT, BOX, REAR
    LID, MAINT, BOX, REAR
  • 3
    2634612-070 ASM., BOX, MAIN, REAR, BLACK (INCL. WARNING DECALS)
    ASM., BOX, MAIN, REAR, BLACK (INCL. WARNING DECALS)
  • 4
    7081195 RING, TIEDOWN
    RING, TIEDOWN
  • 5
    5438729-070 PANEL, FLAIR, BOX SIDE, LEFT HAND, BLACK
    PANEL, FLAIR, BOX SIDE, LEFT HAND, BLACK
  • 6
    5438798-070 GRILL, INTAKE COVER, LEFT HAND, BLACK
    GRILL, INTAKE COVER, LEFT HAND, BLACK
  • 7
    5438799-070 GRILL, INTAKE COVER, RIGHT HAND, BLACK
    GRILL, INTAKE COVER, RIGHT HAND, BLACK
  • 8
    5438409-070 BOX, MAINT. PANEL, REMOVABLE, BLACK
    BOX, MAINT. PANEL, REMOVABLE, BLACK
  • 9
    5251162 PLATE, LATCH, SEAT (BUILT 9/01/13 AND BEFORE)
    PLATE, LATCH, SEAT (BUILT 9/01/13 AND BEFORE)
  • 9
    5258647 PLATE, LATCH, SEAT (BUILT 9/02/13 AND AFTER)
    PLATE, LATCH, SEAT (BUILT 9/02/13 AND AFTER)
  • 10
    5437120 CAP, LATCH, SEAT
    CAP, LATCH, SEAT
  • 11
    5437121 LEVER, LATCH, SEAT
    LEVER, LATCH, SEAT
  • 12
    7081466 SPRING, LATCH, SEAT
    SPRING, LATCH, SEAT
  • 13
    7519001 SCREW
    SCREW
  • 14
    5137680 PLUNGER, BOX, LATCH
    PLUNGER, BOX, LATCH
  • 15
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 16
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 17
    7556216 WASHER, FLAT
    WASHER, FLAT
  • 18
    7517685 SCREW
    SCREW
  • 19
    5813675 FILTER, FOAM, INLET
    FILTER, FOAM, INLET
  • 20
    7670057 NUT, U TYPE SPEED
    NUT, U TYPE SPEED
  • 21
    5813640 FILTER, FOAM, INLET
    FILTER, FOAM, INLET
