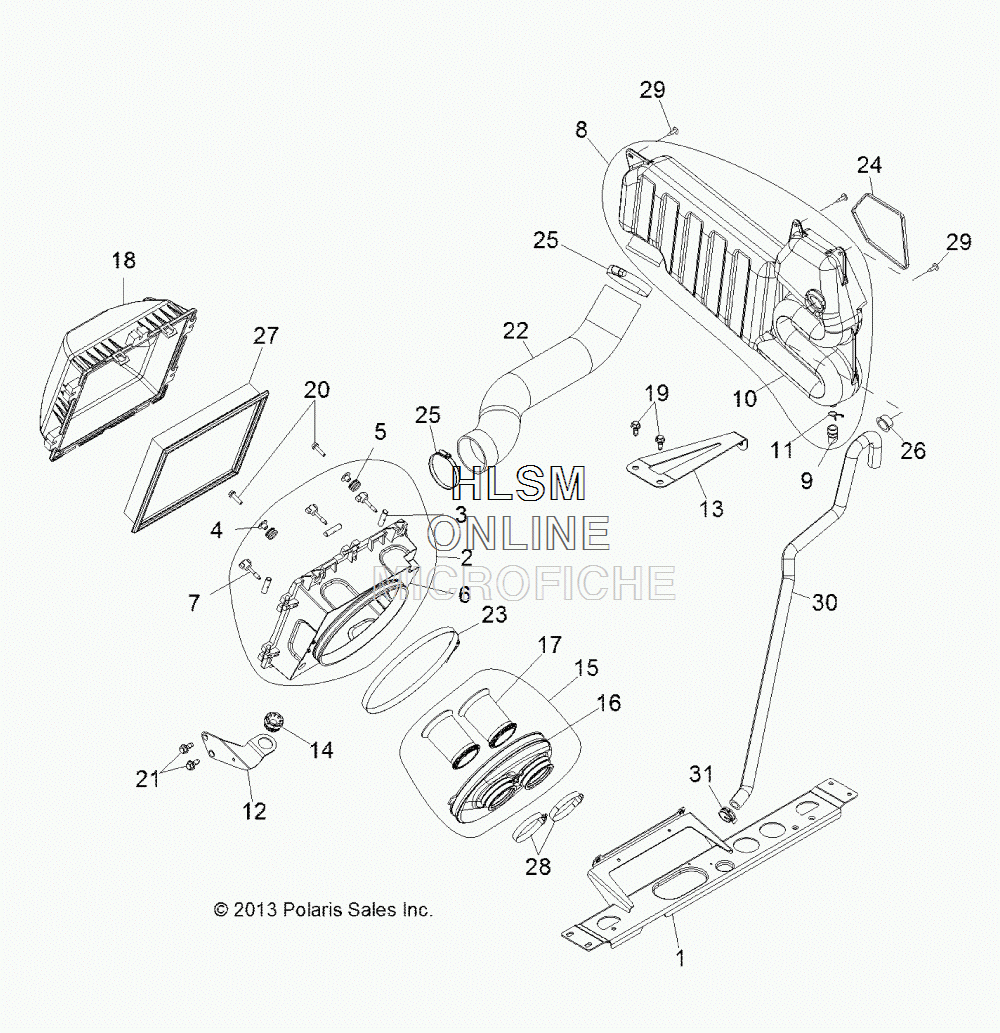

AIR INTAKE SYSTEM W/CLUTCH для Polaris RZR 900 INDY RED [Z14JT87AD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1017918-329 SUPPORT, AIRBOX, BLACK
    SUPPORT, AIRBOX, BLACK
  • 2
    1240698 ASM., AIR INTAKE, MAIN (INCL. 3-7)
    ASM., AIR INTAKE, MAIN (INCL. 3-7)
  • 3
    5138692 ROD, NUT, PIVOT (BUILT 10/16/12 AND AFTER)
    ROD, NUT, PIVOT (BUILT 10/16/12 AND AFTER)
  • 4
    5137652 BUSHING, FLANGE
    BUSHING, FLANGE
  • 5
    5414160 GROMMET, BASE, TOP
    GROMMET, BASE, TOP
  • 6
    5439632 BASE, AIRBOX
    BASE, AIRBOX
  • 7
    7081690 KNOB
    KNOB
  • 8
    1240634 ASM., INTAKE, RESONATOR (INCL. 9-11)
    ASM., INTAKE, RESONATOR (INCL. 9-11)
  • 9
    5412960 CAP, DRAIN
    CAP, DRAIN
  • 10
    5438704 BOX, INTAKE
    BOX, INTAKE
  • 11
    7081488 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    5254608 BRACKET, MOUNT, AIRBOX, LOWER
    BRACKET, MOUNT, AIRBOX, LOWER
  • 13
    5254859 BRACKET, INTAKE BOX (BUILT 9/01/13 AND BEFORE)
    BRACKET, INTAKE BOX (BUILT 9/01/13 AND BEFORE)
  • 13
    5258645 BRACKET, SUPPORT (BUILT 9/02/13 AND AFTER)
    BRACKET, SUPPORT (BUILT 9/02/13 AND AFTER)
  • 14
    5412507 GROMMET
    GROMMET
  • 15
    5413981 ASM., BOOT, TWIN TB, RND (INCL. 16,17)
    ASM., BOOT, TWIN TB, RND (INCL. 16,17)
  • 16
    5413982 BOOT, TWIN TB, RND
    BOOT, TWIN TB, RND
  • 17
    5438562 TUBE, INTAKE
    TUBE, INTAKE
  • 18
    5438322 LID, AIRBOX
    LID, AIRBOX
  • 19
    7518555 BOLT
    BOLT
  • 20
    7519342 SCREW
    SCREW
  • 21
    7518513 BOLT
    BOLT
  • 22
    5414284 HOSE, INTAKE, LONG
    HOSE, INTAKE, LONG
  • 23
    7081672 CLAMP, BAND
    CLAMP, BAND
  • 24
    5813750 SEAL, INTAKE, FOAM
    SEAL, INTAKE, FOAM
  • 25
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 26
    7081697 BUSHING, PANEL, SNAP
    BUSHING, PANEL, SNAP
  • 27
    7081889 ASM., FILTER, INTAKE
    ASM., FILTER, INTAKE
  • 28
    7080413 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 29
    7517685 SCREW
    SCREW
  • 30
    5414497 LINE, CRANKCASE VENT
    LINE, CRANKCASE VENT
  • 31
    7080841 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
