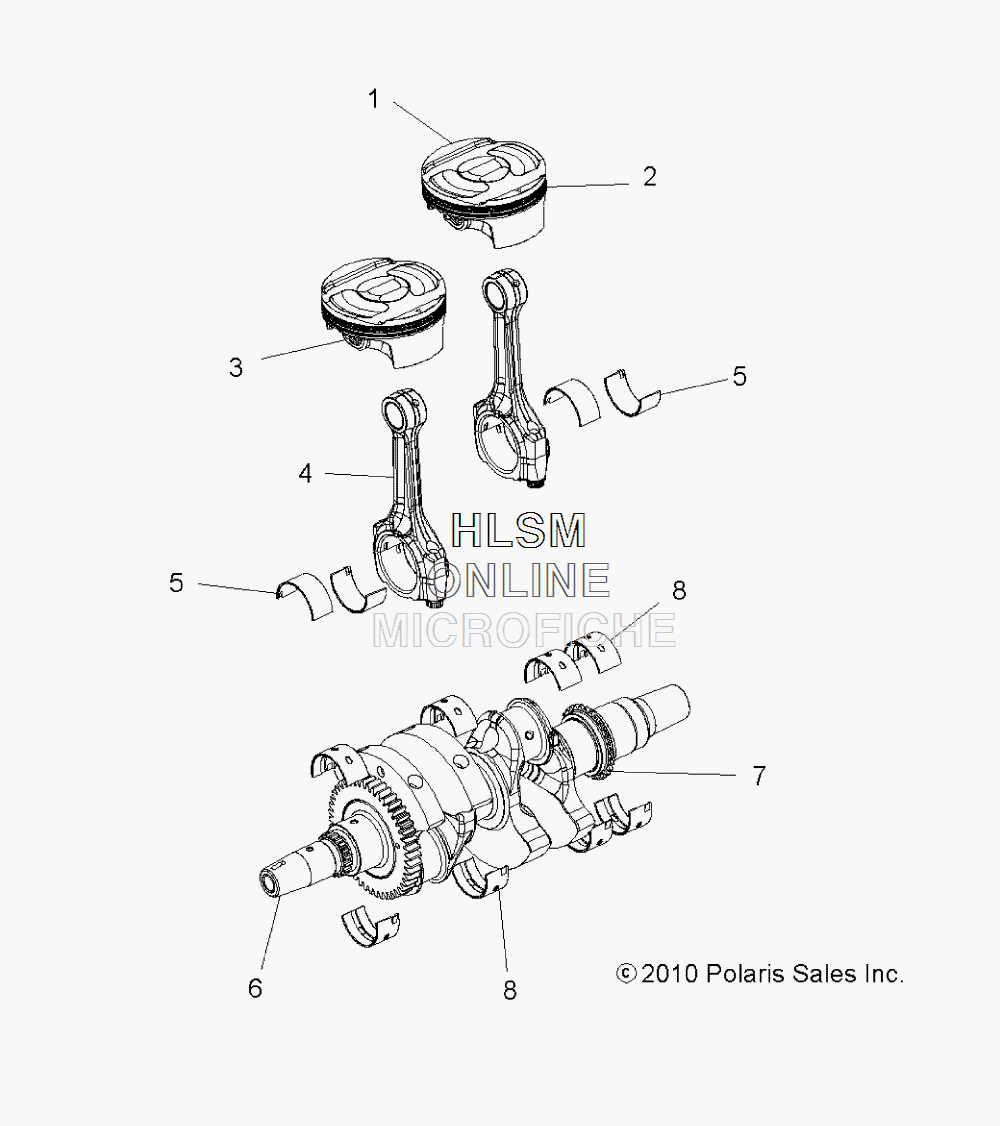

CRANKSHAFT AND PISTON для Polaris RZR 900 INDY RED [Z14JT87AD] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2204637 KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)
    KIT, PISTON (INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS)
  • 2
    2204509 KIT, PISTON RING (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)
    KIT, PISTON RING (INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING)
  • 3
    3022190 PIN, PISTON
    PIN, PISTON
  • 3
    3022328 CIRCLIP, PISTON
    CIRCLIP, PISTON
  • 4
    1204403 ASM., CONNECTING ROD (INCL. ROD, CAP, 2 BOLTS)
    ASM., CONNECTING ROD (INCL. ROD, CAP, 2 BOLTS)
  • 5
    3514663-001 BEARING, CONNECTIN ROD, WHITE
    BEARING, CONNECTIN ROD, WHITE
  • 5
    3514663-002 BEARING, CONNECTIN ROD, BLUE
    BEARING, CONNECTIN ROD, BLUE
  • 5
    3514663-003 BEARING, CONNECTIN ROD, GREEN
    BEARING, CONNECTIN ROD, GREEN
  • 5
    3514663-004 BEARING, CONNECTIN ROD, YELLOW
    BEARING, CONNECTIN ROD, YELLOW
  • 6
    1204599 ASM., CRANKSHAFT (INCL. CRANK, 7)
    ASM., CRANKSHAFT (INCL. CRANK, 7)
  • 7
    3222187 SPROCKET, AUXILLARY DRIVE
    SPROCKET, AUXILLARY DRIVE
  • 8
    3514662-001 BEARING, MAIN, WHITE
    BEARING, MAIN, WHITE
  • 8
    3514662-002 BEARING, MAIN, BLUE
    BEARING, MAIN, BLUE
  • 8
    3514662-003 BEARING, MAIN, GREEN
    BEARING, MAIN, GREEN
  • 8
    3514662-004 BEARING, MAIN, YELLOW
    BEARING, MAIN, YELLOW
  • 8
    3514662-005 BEARING, MAIN, RED
    BEARING, MAIN, RED
