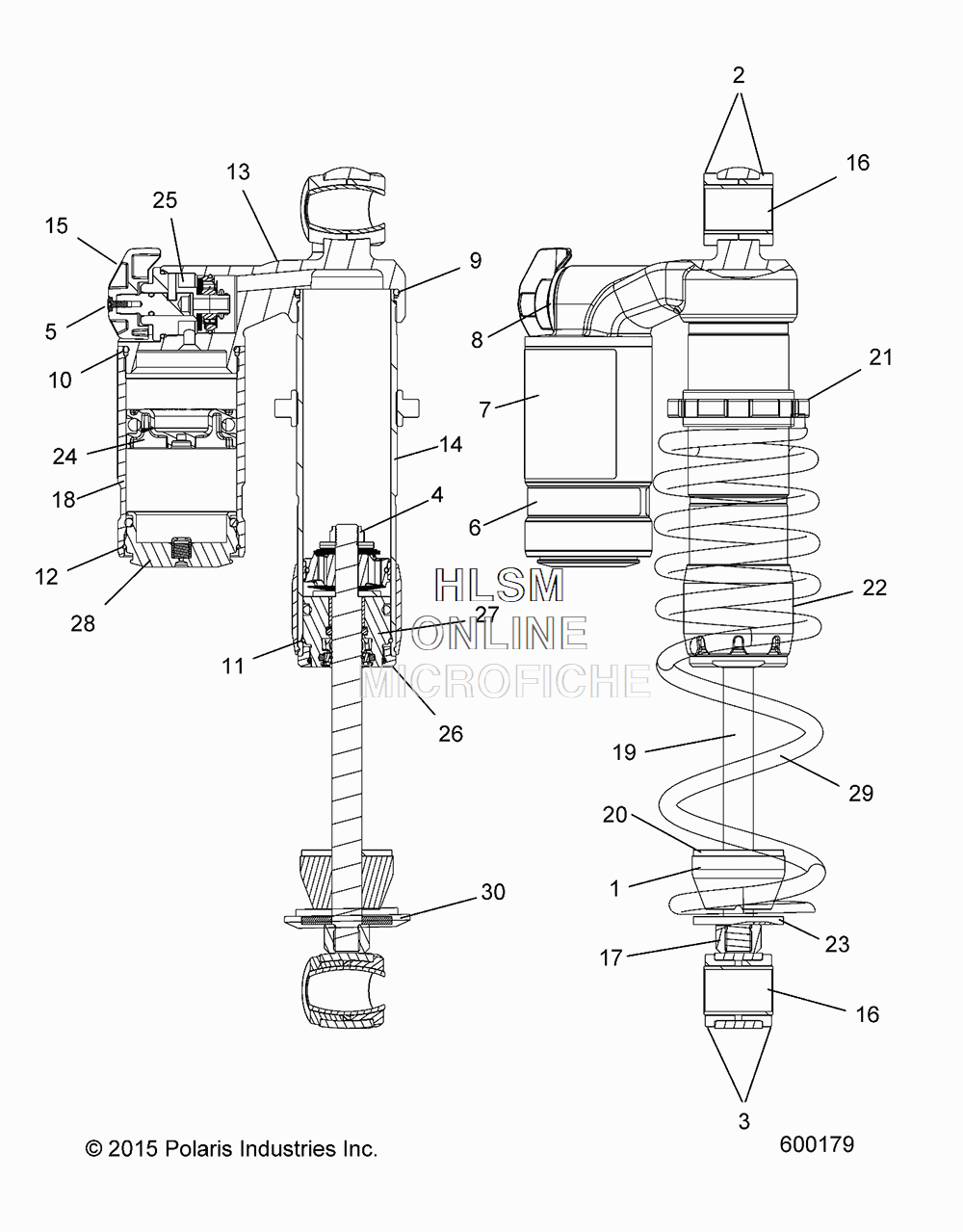

SUSPENSION - FRONT SHOCK TRACK (7044389) для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска
-
№АртикулНазвание
-
-1501190 KIT, REBUILD, ZERO 1.5KIT, REBUILD, ZERO 1.5
-
-7044389 SHOCK, FTSHOCK, FT
-
-5452842 SHIELD-SHOCKSHIELD-SHOCK
-
11501102 BUMPER, .498X.40TLGBUMPER, .498X.40TLG
-
21500103 BUSHING- .35X.82X.58BUSHING- .35X.82X.58
-
31501103 BUSHING, .150 WIDEBUSHING, .150 WIDE
-
41500016 NUT, LOCK, 3/8-24NUT, LOCK, 3/8-24
-
51501011 SCREW, #4 SS PANSCREW, #4 SS PAN
-
61501012 DECAL, PERF. SERIESDECAL, PERF. SERIES
-
71501104 DECAL, RES., P SERIESDECAL, RES., P SERIES
-
81501105 DECAL, BASE VALVE, 3 POS.DECAL, BASE VALVE, 3 POS.
-
91500108 O-RING, .103W-1.55IDO-RING, .103W-1.55ID
-
101500623 O-RINGO-RING
-
111500097 RING, RETAINING, WIRERING, RETAINING, WIRE
-
121501015 RING, RETAINING, WIRERING, RETAINING, WIRE
-
131501106 BODY CAP, PIGGYBACKBODY CAP, PIGGYBACK
-
141501107 BODY, .459X6.10TLGBODY, .459X6.10TLG
-
151501108 KNOB, DAMP. ADJ, BLACKKNOB, DAMP. ADJ, BLACK
-
161500852 SLEEVESLEEVE
-
171500889 EYELET, SHAFTEYELET, SHAFT
-
181501109 RESERVOIR, BLACKRESERVOIR, BLACK
-
191501110 SHAFT, .498X7.10TLGSHAFT, .498X7.10TLG
-
201501111 SPACER, .100TLGSPACER, .100TLG
-
211500707 RING, SPRING PRELOADRING, SPRING PRELOAD
-
221500930 GUIDE, SPRINGGUIDE, SPRING
-
231500896 WASHERWASHER
-
241501112 PISTON, FLOATINGPISTON, FLOATING
-
251501113 ASM., BRNG CAP, W/O-RINGASM., BRNG CAP, W/O-RING
-
261501114 ASM., BEARING, FISTASM., BEARING, FIST
-
271501027 ASM., END CAP, RES.ASM., END CAP, RES.
-
281501116 ASM., DAMP. ADJ.ASM., DAMP. ADJ.
-
297043957-133 SPRING, COMP., 95/280#, WHITESPRING, COMP., 95/280#, WHITE
-
305020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
