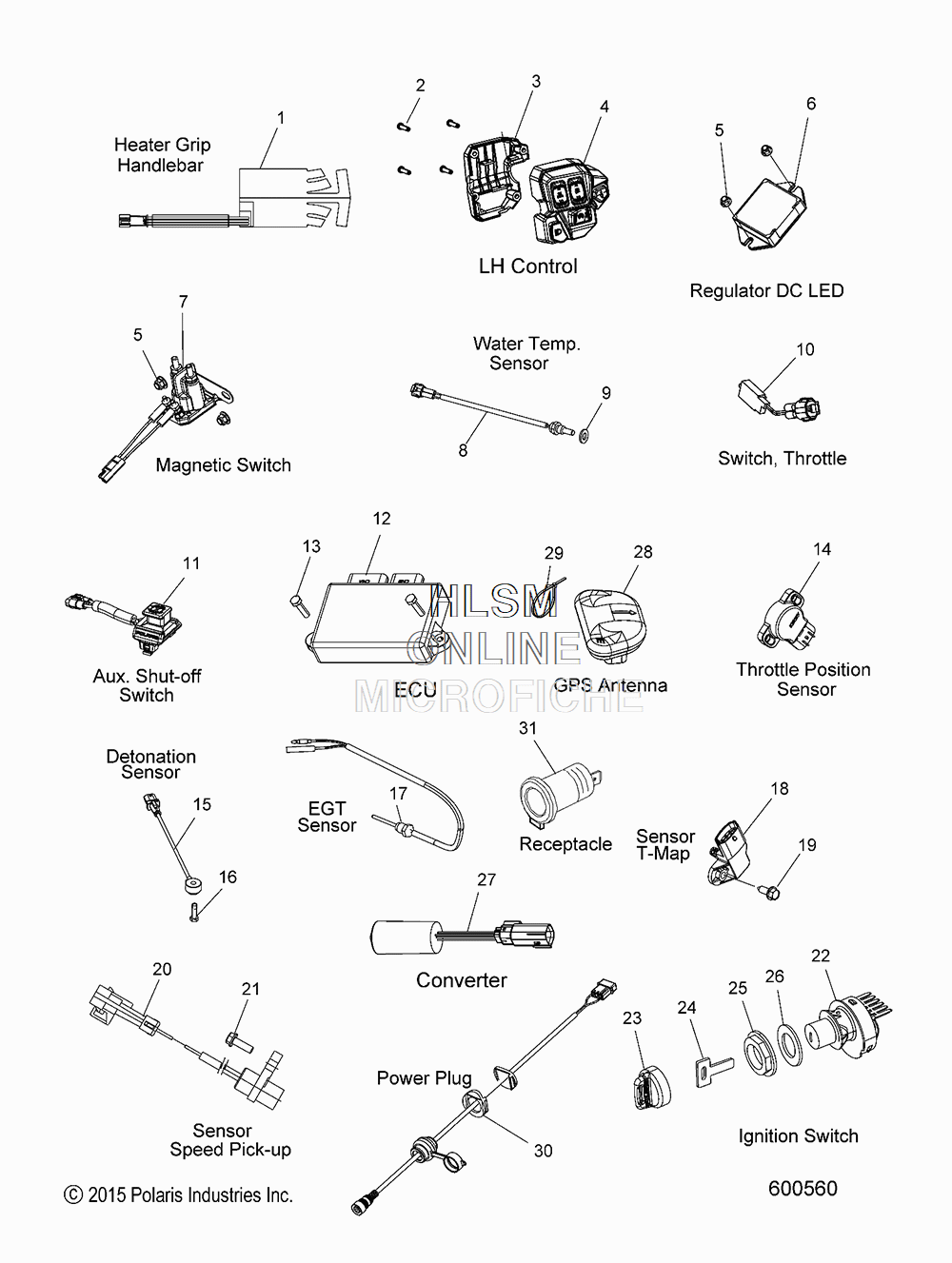

ELECTRICAL - SENSORS AND SWITCHES для Polaris 800 SWITCHBACK ADVENTURE 137 ES (S18DDE8PSL) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2413778 GRIP, HEATER, LO/MED/HI, LEFT HAND
    GRIP, HEATER, LO/MED/HI, LEFT HAND
  • 1
    2413779 GRIP, HEATER, LO/MED/HI, RIGHT HAND
    GRIP, HEATER, LO/MED/HI, RIGHT HAND
  • 2
    7518227 SCREW
    SCREW
  • 3
    5450542 COVER, CONTROL, LEFT HAND
    COVER, CONTROL, LEFT HAND
  • 4
    2010409 ASM., LEFT HAND CONTROL
    ASM., LEFT HAND CONTROL
  • 5
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 6
    4015642 REGULATOR, DC LED
    REGULATOR, DC LED
  • 7
    4015817 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 8
    4012115 SENSOR, WATER TEMP
    SENSOR, WATER TEMP
  • 9
    7556357 WASHER, COPPER
    WASHER, COPPER
  • 10
    4015245 SWITCH, THROTTLE
    SWITCH, THROTTLE
  • 11
    4015321 SWITCH., AUX. SHUTOFF
    SWITCH., AUX. SHUTOFF
  • 12
    4016143 ECU-BASE, KOK,DC-SDI CH
    ECU-BASE, KOK,DC-SDI CH
  • 13
    7516823 SCREW
    SCREW
  • 14
    3131751 SENSOR, THROTTLE POSITION
    SENSOR, THROTTLE POSITION
  • 15
    2410369 SENSOR, DETONATION
    SENSOR, DETONATION
  • 16
    7517262 SCREW
    SCREW
  • 17
    4016024 SENSOR, EGT
    SENSOR, EGT
  • 18
    2410422 SENSOR, T-MAP
    SENSOR, T-MAP
  • 19
    7512098 SCREW
    SCREW
  • 20
    2412968 SENSOR, SPEED PICKUP, LG
    SENSOR, SPEED PICKUP, LG
  • 21
    7518280 SCREW
    SCREW
  • 22
    4012165 SWITCH, KEY, 3 POSITION (INCL. 23-25)
    SWITCH, KEY, 3 POSITION (INCL. 23-25)
  • 23
    5433534 COVER, KEY
    COVER, KEY
  • 24
    4010278 KEY, BLANK (NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY
    KEY, BLANK (NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY
  • 25
    5433733 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
  • 26
    7556327 WASHER, NYLON
    WASHER, NYLON
  • 27
    4014356 CONVERTER, PWM TO ANALOG
    CONVERTER, PWM TO ANALOG
  • 28
    4014811 GPS ANTENNA
    GPS ANTENNA
  • 29
    7080138 CABLE TIE
    CABLE TIE
  • 30
    2411708 ASM., RCA PWR PLUG, W/COVER, AC
    ASM., RCA PWR PLUG, W/COVER, AC
  • 31
    4010638 RECEPTACLE, 12 VOLT
    RECEPTACLE, 12 VOLT
