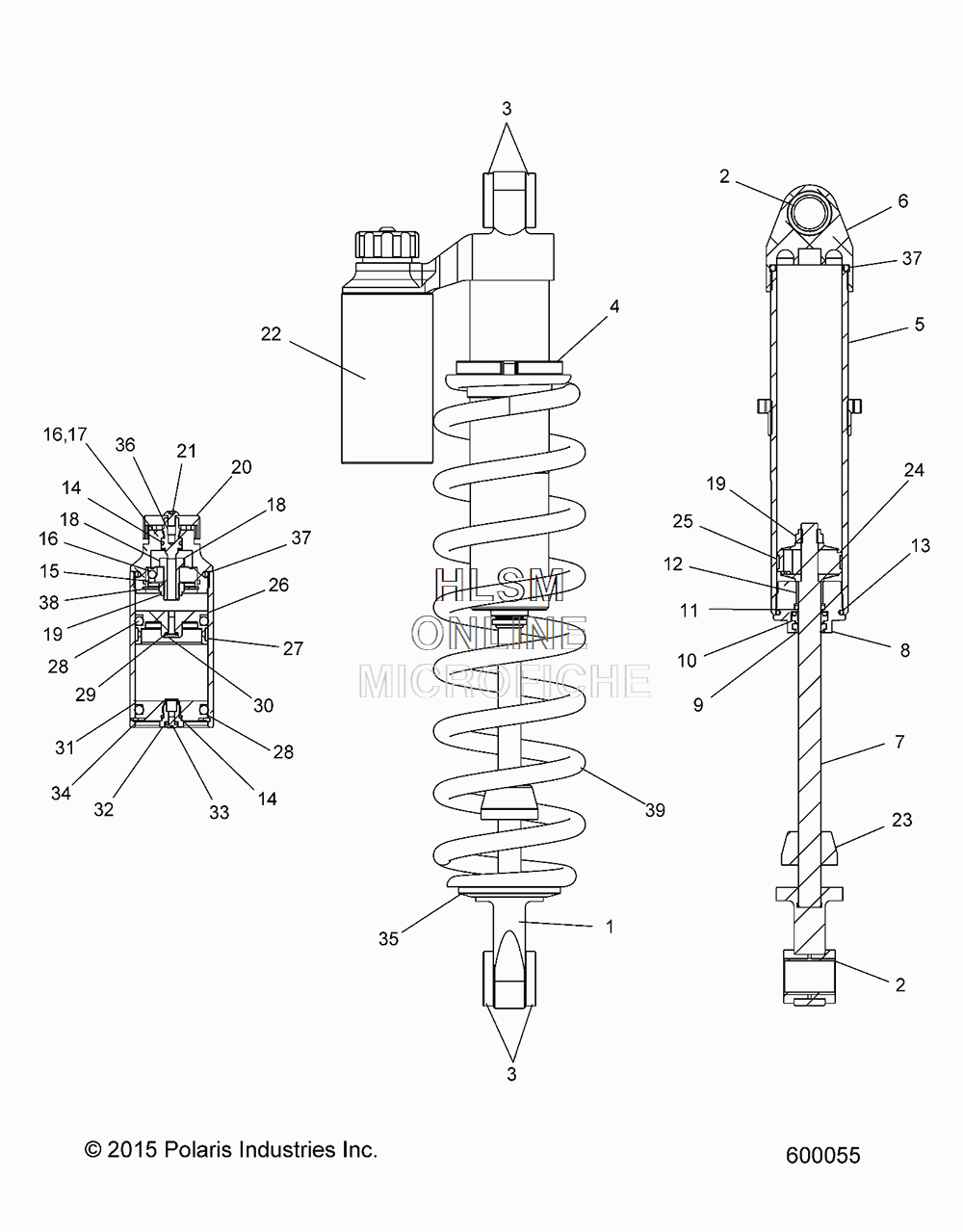

SUSPENSION - REAR SHOCK TRACK для Polaris 800 AXYS SKS 155 (S18EFS8P) - 2018 года выпуска

  • №
    Артикул
    Название
  • -
    7044301 SHOCK, RT
    SHOCK, RT
  • 1
    1800726 LOOP, SHAFT
    LOOP, SHAFT
  • 2
    1800405 SLEEVE
    SLEEVE
  • 3
    1800406 BUSHING
    BUSHING
  • 4
    1800046 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 5
    1800729 BODY, RT, BLACK, 7.84 IN
    BODY, RT, BLACK, 7.84 IN
  • 6
    1800413 PIGGYBACK, 90DEG
    PIGGYBACK, 90DEG
  • 7
    1800730 SHAFT
    SHAFT
  • 8
    1800403 SEAL HEAD
    SEAL HEAD
  • 9
    1800295 SEAL, WIPER
    SEAL, WIPER
  • 10
    1800294 SEAL, U-CUP
    SEAL, U-CUP
  • 11
    1800095 O-RING
    O-RING
  • 12
    1800292 BUSHING, SHAFT
    BUSHING, SHAFT
  • 13
    1800027 O-RING, BODY
    O-RING, BODY
  • 14
    1800215 O-RING, STUD
    O-RING, STUD
  • 15
    1800353 PISTON, CLICKER
    PISTON, CLICKER
  • 16
    1800127 BALL, D-TENT
    BALL, D-TENT
  • 17
    1800128 SPRING, D-TENT
    SPRING, D-TENT
  • 18
    1800354 BOLT, CLICKER
    BOLT, CLICKER
  • 19
    1800031 NUT, CRIMP, 3/8 IN
    NUT, CRIMP, 3/8 IN
  • 20
    1800418 KNOB, CLICKER, BLACK
    KNOB, CLICKER, BLACK
  • 21
    1800357 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 22
    1800419 BODY, RESERVOIR
    BODY, RESERVOIR
  • 23
    1800462 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • 24
    1800001 PISTON, CONVEX, .063 BLEED
    PISTON, CONVEX, .063 BLEED
  • 25
    1800297 BAND, WEAR
    BAND, WEAR
  • 26
    1800355 PISTON, RESERVOIR, 2 IN
    PISTON, RESERVOIR, 2 IN
  • 27
    1800185 BAND, PISTON
    BAND, PISTON
  • 28
    1800184 O-RING
    O-RING
  • 29
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 30
    1800043 SCREW, COUNTER SUNK
    SCREW, COUNTER SUNK
  • 31
    1800420 CAP, END, RESERVOIR, BLACK, 2 IN
    CAP, END, RESERVOIR, BLACK, 2 IN
  • 32
    1800329 VALVE, NEEDLE
    VALVE, NEEDLE
  • 33
    1800109 SCREW, BUTTON HEAD
    SCREW, BUTTON HEAD
  • 34
    1800159 RING, SNAP
    RING, SNAP
  • 35
    1800116 RETAINER, SPRING CLIP
    RETAINER, SPRING CLIP
  • 36
    1800352 STUD, CLICKER
    STUD, CLICKER
  • 37
    1800030 O-RING, BODY
    O-RING, BODY
  • 38
    1800359 RING, SNAP, CLICKER
    RING, SNAP, CLICKER
  • 39
    7043714-458 SPRING, COMPRESSION, 210# BLACK (SNOW CHECK)
    SPRING, COMPRESSION, 210# BLACK (SNOW CHECK)
  • 39
    7043714-133 SPRING, COMPRESSION, 210# WHITE (STOCK)
    SPRING, COMPRESSION, 210# WHITE (STOCK)
