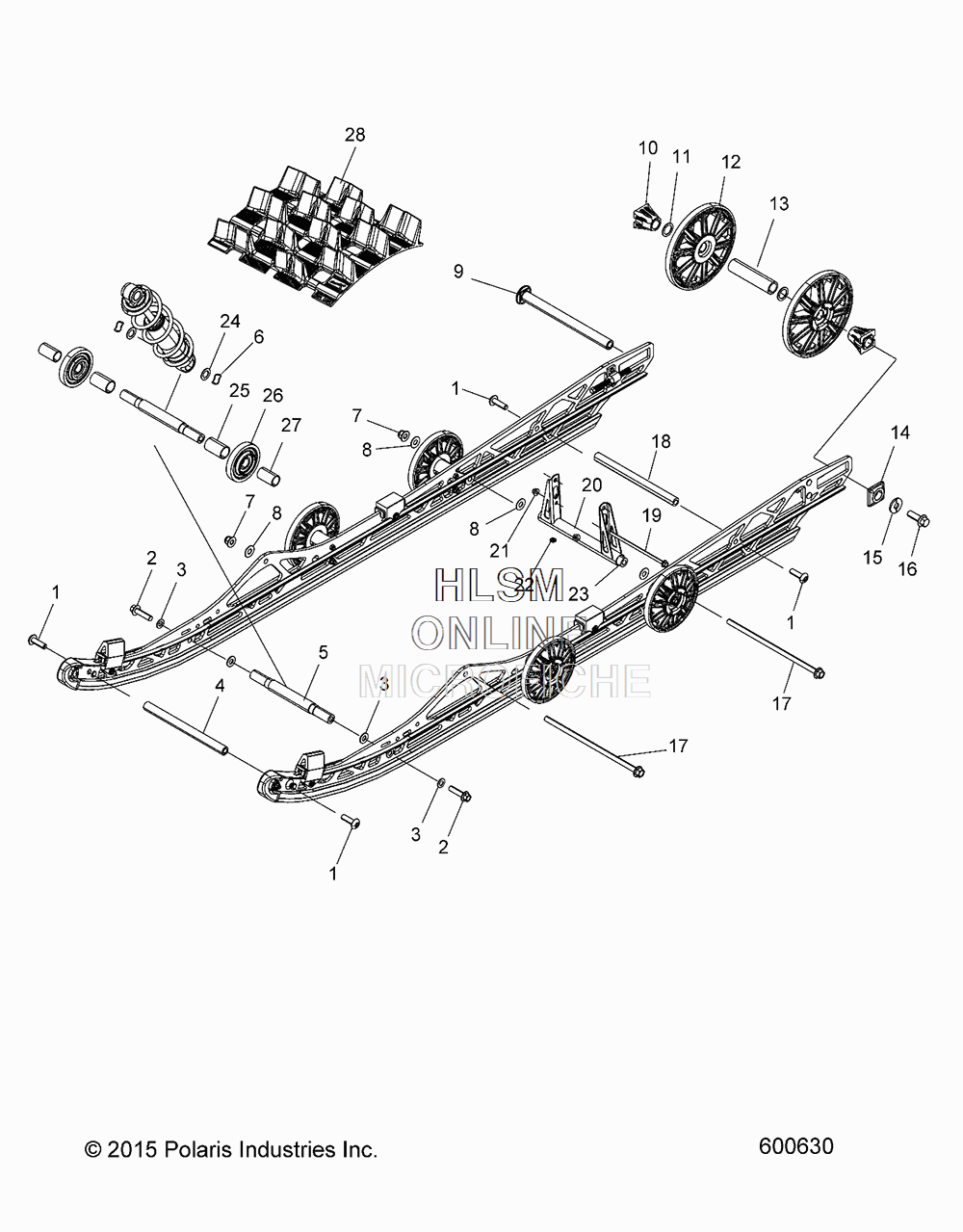

SUSPENSION - REAR для Polaris 800 AXYS SKS 155 (S18EFS8P) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7520369 SCREW
    SCREW
  • 2
    7519216 SCREW
    SCREW
  • 3
    7556155 WASHER
    WASHER
  • 4
    5136572 SHAFT
    SHAFT
  • 5
    5140954 SHAFT
    SHAFT
  • 6
    7556063 WASHER, WAVE
    WASHER, WAVE
  • 7
    7547333 NUT
    NUT
  • 8
    7556545 WASHER
    WASHER
  • 9
    5139411 SHAFT, IDLER, REAR
    SHAFT, IDLER, REAR
  • 10
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 11
    7555918 BUSHING
    BUSHING
  • 12
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 12
    1590431-070 ASM., WHEEL, BLACK
    ASM., WHEEL, BLACK
  • 12
    3514384 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 13
    5338618 SPACER, IDLER, CENTER, LWT
    SPACER, IDLER, CENTER, LWT
  • 14
    5436496 SPACER, IDLER
    SPACER, IDLER
  • 15
    7556929 WASHER, DOMED
    WASHER, DOMED
  • 16
    7520123 SCREW
    SCREW
  • 17
    7519327 SCREW
    SCREW
  • 18
    5139172 SHAFT, CROSS
    SHAFT, CROSS
  • 19
    7519201 BOLT
    BOLT
  • 20
    1542906-329 ARM, REAR PIVOT, BLACK
    ARM, REAR PIVOT, BLACK
  • 21
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 22
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 23
    5137418 SHAFT, CROSS
    SHAFT, CROSS
  • 24
    7556210 WASHER
    WASHER
  • 25
    5337107 SPACER, INSIDE
    SPACER, INSIDE
  • 26
    3514777 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 26
    7710700 RING, RETAINING-1.658 IN (1 PER WHEEL)
    RING, RETAINING-1.658 IN (1 PER WHEEL)
  • 26
    1590509 ASM., WHEEL, BOGIE
    ASM., WHEEL, BOGIE
  • 27
    5337106 SPACER, OUTSIDE
    SPACER, OUTSIDE
  • 28
    5415002 TRACK, 155 X 2.25 IN, PEAK (SNOW CHECK)
    TRACK, 155 X 2.25 IN, PEAK (SNOW CHECK)
  • 28
    5415391 TRACK, 155 X 2.6 IN SERIES 6 (SNOW CHECK)
    TRACK, 155 X 2.6 IN SERIES 6 (SNOW CHECK)
  • 28
    5413622 TRACK, 155 X 2.4 IN, SINGLE LAYER (STOCK AND SNOW CHECK)
    TRACK, 155 X 2.4 IN, SINGLE LAYER (STOCK AND SNOW CHECK)
