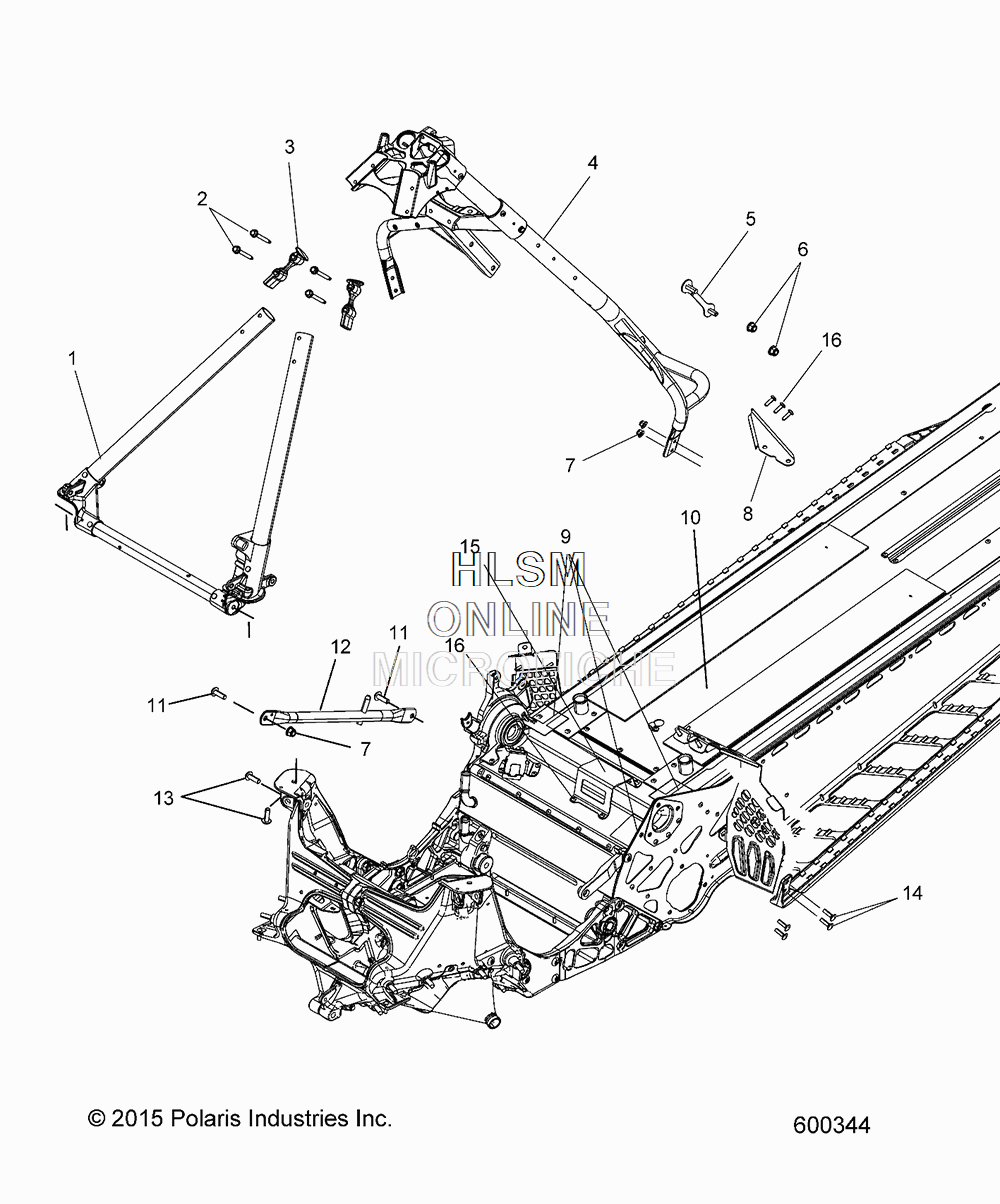

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 AXYS SKS 155 (S18EFS8P) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1020589 ASM., FRAME, TUBE, FRONT, RMK, ALUM
    ASM., FRAME, TUBE, FRONT, RMK, ALUM
  • 2
    7519967 SCREW
    SCREW
  • 3
    5633122 SPACER, TUBE CAST, 27.00 DIA
    SPACER, TUBE CAST, 27.00 DIA
  • 4
    1019339 ASM., FRAME, TUBULAR, REAR, RMK
    ASM., FRAME, TUBULAR, REAR, RMK
  • 5
    1019337 ASM., STUD PLATE, 91MM
    ASM., STUD PLATE, 91MM
  • 6
    7547332 NUT
    NUT
  • 7
    7547453 NUT
    NUT
  • 8
    5262012 BRKT., SUPPORT, TOE STOP
    BRKT., SUPPORT, TOE STOP
  • 9
    5814353 PAD-40X63.5
    PAD-40X63.5
  • 9
    5814424 PAD-40X90
    PAD-40X90
  • 10
    1021441-705 ASM., CHASSIS, MTN., 155 W/COOLER, TITANIUM (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, TITANIUM (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1021441-647 ASM-CHASSIS MNT155W/COOLER ORANGE BURST (INCL. BULKHEAD AND CHAINCASE)
    ASM-CHASSIS MNT155W/COOLER ORANGE BURST (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1021441-689 ASM., CHASSIS, MTN., 155 W/COOLER, VELOCITY BLUE (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, VELOCITY BLUE (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1019350-705 ASM., TUNNEL, 155 SERVICE, TITANIUM
    ASM., TUNNEL, 155 SERVICE, TITANIUM
  • 10
    1019350-647 ASM., TUNNEL, 155 SERVICE, ORANGE BURST
    ASM., TUNNEL, 155 SERVICE, ORANGE BURST
  • 10
    1019350-689 ASM., TUNNEL, 155 SERVICE, NATURAL
    ASM., TUNNEL, 155 SERVICE, NATURAL
  • 10
    1021441-458 ASM., CHASSIS, MTN., 155 W/COOLER, MATTE BLACK (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, MATTE BLACK (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1019350-458 ASM., TUNNEL, 155 SERVICE, MATTE BLACK
    ASM., TUNNEL, 155 SERVICE, MATTE BLACK
  • 10
    1021441-485 ASM., CHASSIS, MTN., 155 W/COOLER, MIDNITE BLUE (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, MIDNITE BLUE (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1019350-485 ASM., TUNNEL, 155 SERVICE, MIDNITE BLUE
    ASM., TUNNEL, 155 SERVICE, MIDNITE BLUE
  • 10
    1021441-309 ASM., CHASSIS, MTN., 155 W/COOLER, NATURAL (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, NATURAL (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1019350-309 ASM., TUNNEL, 155 SERVICE, NATURAL
    ASM., TUNNEL, 155 SERVICE, NATURAL
  • 10
    1021441-293 ASM., CHASSIS, MTN., 155 W/COOLER, INDY RED (INCL. BULKHEAD AND CHAINCASE)
    ASM., CHASSIS, MTN., 155 W/COOLER, INDY RED (INCL. BULKHEAD AND CHAINCASE)
  • 10
    1019350-293 ASM., TUNNEL, 155 SERVICE, INDY RED
    ASM., TUNNEL, 155 SERVICE, INDY RED
  • 11
    7518906 SCREW
    SCREW
  • 12
    1019861-067 WELD-TUBE BRACE RIGHT HAND BLACK
    WELD-TUBE BRACE RIGHT HAND BLACK
  • 13
    7519070 SCREW
    SCREW
  • 14
    7519338 SCREW
    SCREW
  • 15
    5258618 BRKT., AIR BOX SUPPPORT
    BRKT., AIR BOX SUPPPORT
  • 16
    7661637 RIVET
    RIVET
