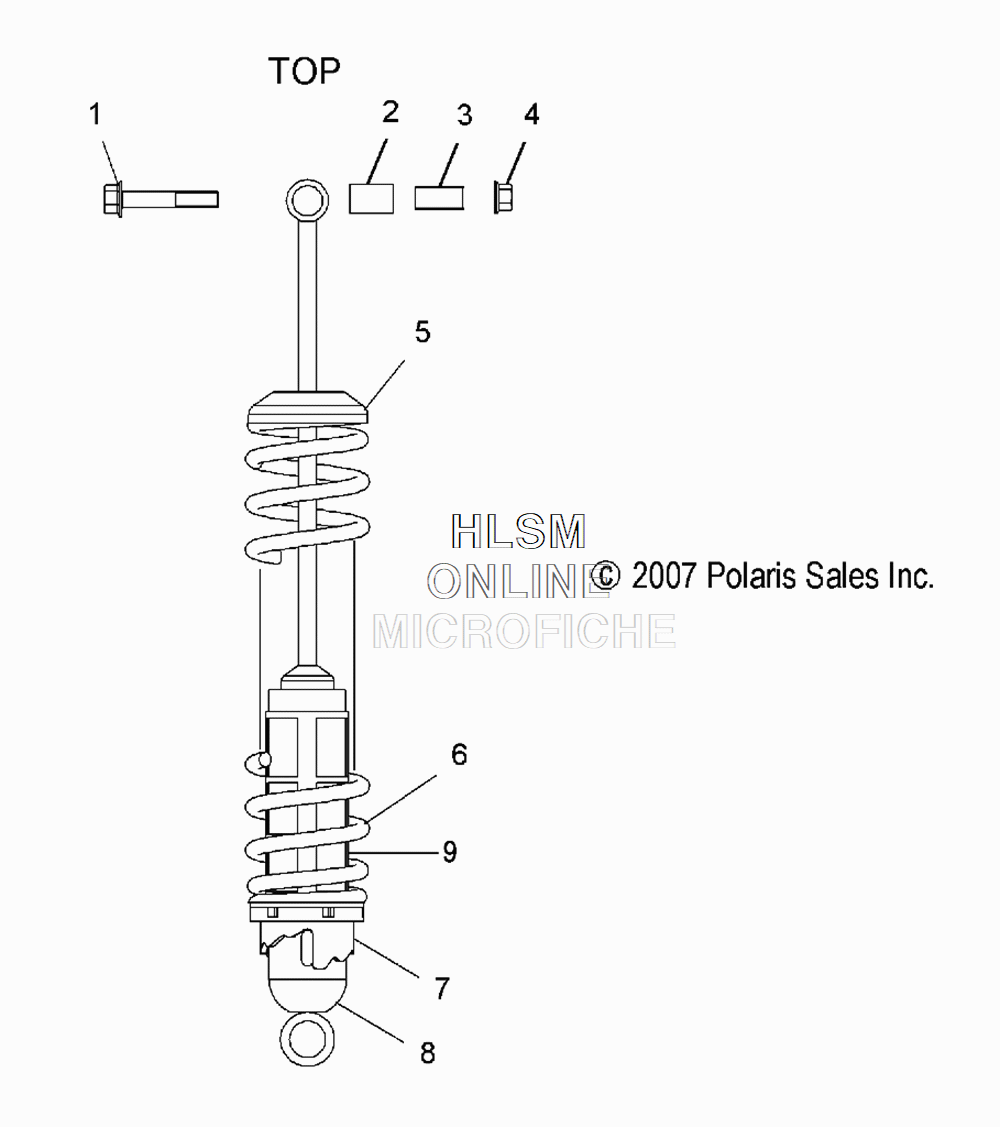

SUSPENSION - REAR SHOCK TRACK для Polaris 550 WIDETRAK LX ES (S18SJA5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
17512329 SCREWSCREW
-
25430537 BUSHINGBUSHING
-
35332631 SPACERSPACER
-
47542324 NUT, NYLOKNUT, NYLOK
-
55220225 RETAINER, SPRING COILRETAINER, SPRING COIL
-
67041261-067 SPRING, COMPRESSION, BLACKSPRING, COMPRESSION, BLACK
-
75630334 CAM, ADJUSTING, SPRINGCAM, ADJUSTING, SPRING
-
87042309 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
95431032 SLEEVE, SPRING PROTECTORSLEEVE, SPRING PROTECTOR
