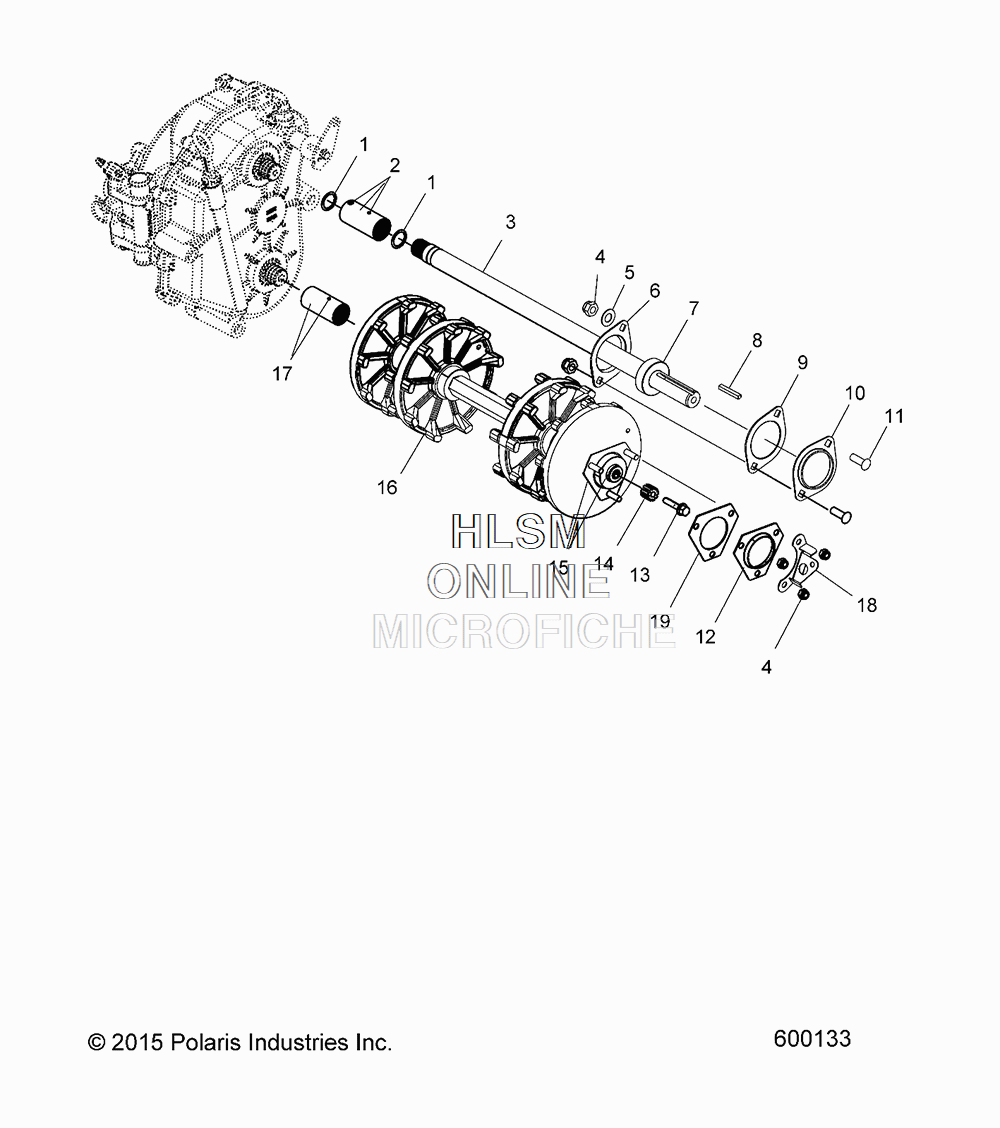

DRIVE SHAFT ASSY. для Polaris 550 WIDETRAK LX ES (S18SJA5BSL) - 2018 года выпуска`
-
№АртикулНазвание
-
15410630 O-RINGO-RING
-
27080437 FITTING, LUBRICATIONFITTING, LUBRICATION
-
27517446 SCREWSCREW
-
21332219 ASM., COUPLER W/GREASE (INCL. FITTING & SCREW)ASM., COUPLER W/GREASE (INCL. FITTING & SCREW)
-
31332256 ASM., JACKSHAFT (INCL. 7)ASM., JACKSHAFT (INCL. 7)
-
47542324 NUT, NYLOKNUT, NYLOK
-
57558402 WASHER, FLATWASHER, FLAT
-
65222393 FLANGETTE, 2 BOLTFLANGETTE, 2 BOLT
-
73514525 BEARINGBEARING
-
87721132 KEYKEY
-
95830135 GASKET, JACKSHAFT, 2-BOLTGASKET, JACKSHAFT, 2-BOLT
-
105222647 FLANGETTE W/GREASE GROOVE, 2-BOLTFLANGETTE W/GREASE GROOVE, 2-BOLT
-
117512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
125243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
137518425 BOLTBOLT
-
145136619 WHEEL, PICKUPWHEEL, PICKUP
-
153514448 BEARINGBEARING
-
151012945 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
161590478 ASM., DRIVE SHAFT (INCL. 13-15, 17)ASM., DRIVE SHAFT (INCL. 13-15, 17)
-
177080437 FITTING, LUBRICATIONFITTING, LUBRICATION
-
171332260 ASM., COUPLER W/GREASE ZERKASM., COUPLER W/GREASE ZERK
-
185251857 HOUSING, DRIVE PICKUPHOUSING, DRIVE PICKUP
-
195830012 GASKETGASKET
