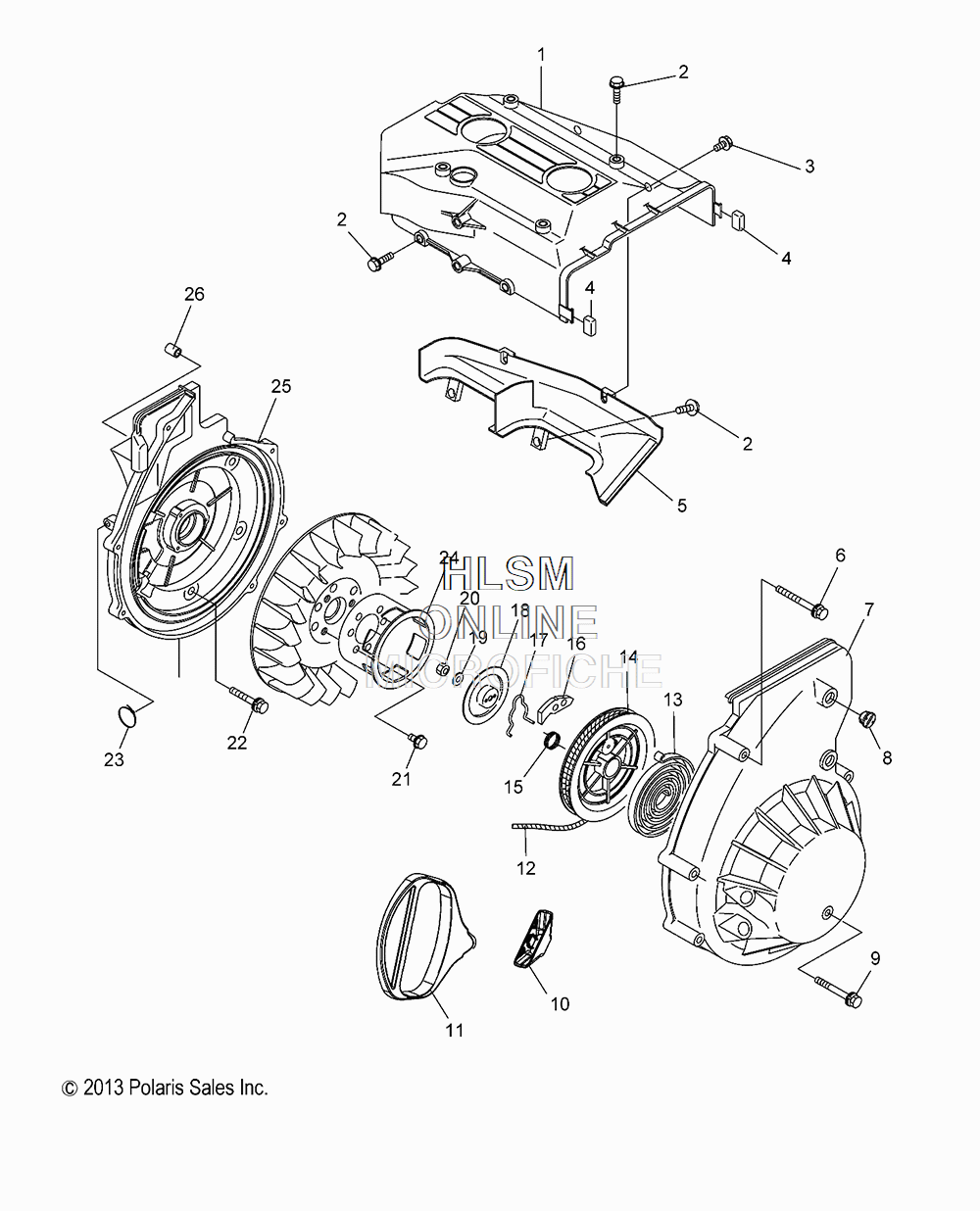

RECOIL STARTER W/BLOWER HOUSING для Polaris 550 WIDETRAK LX ES (S18SJA5BSL) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3090387 ASM., BAFFLE, CYLINDER, 1
    ASM., BAFFLE, CYLINDER, 1
  • 2
    3084566 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    3085693 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    3085690 CAP, CYLINDER BAFFLE
    CAP, CYLINDER BAFFLE
  • 5
    3085691 CYLINDER, BAFFLE 2
    CYLINDER, BAFFLE 2
  • 6
    3083550 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 7
    3090194 STARTER, CASE COMPLETE
    STARTER, CASE COMPLETE
  • 7
    3090179 ASM., STARTER, RECOIL (INCL. 12-20)
    ASM., STARTER, RECOIL (INCL. 12-20)
  • 8
    3086792 PLUG, RUBBER
    PLUG, RUBBER
  • 9
    3082030 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 10
    5414288 ISOLATOR
    ISOLATOR
  • 11
    5435154-070 HANDLE, RECOIL, BLACK
    HANDLE, RECOIL, BLACK
  • 12
    2870621 ROPE, STARTER (100 FT.)
    ROPE, STARTER (100 FT.)
  • 13
    3083376 SPRING, SPIRAL
    SPRING, SPIRAL
  • 14
    3083377 ASM., REEL
    ASM., REEL
  • 15
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 16
    3087207 RATCHET
    RATCHET
  • 17
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 18
    3090195 PLATE, FRICTION
    PLATE, FRICTION
  • 19
    3090250 WASHER
    WASHER
  • 20
    3090251 NUT, HEX
    NUT, HEX
  • 21
    3085688 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 22
    3084225 ASM., BOLT AND WASHER
    ASM., BOLT AND WASHER
  • 23
    3084823 BAND, WIRE
    BAND, WIRE
  • 24
    3087181 PULLEY, STARTING
    PULLEY, STARTING
  • 25
    3087020 HOUSING, BLOWER
    HOUSING, BLOWER
  • 26
    3084857 PIN, STRAIGHT
    PIN, STRAIGHT
