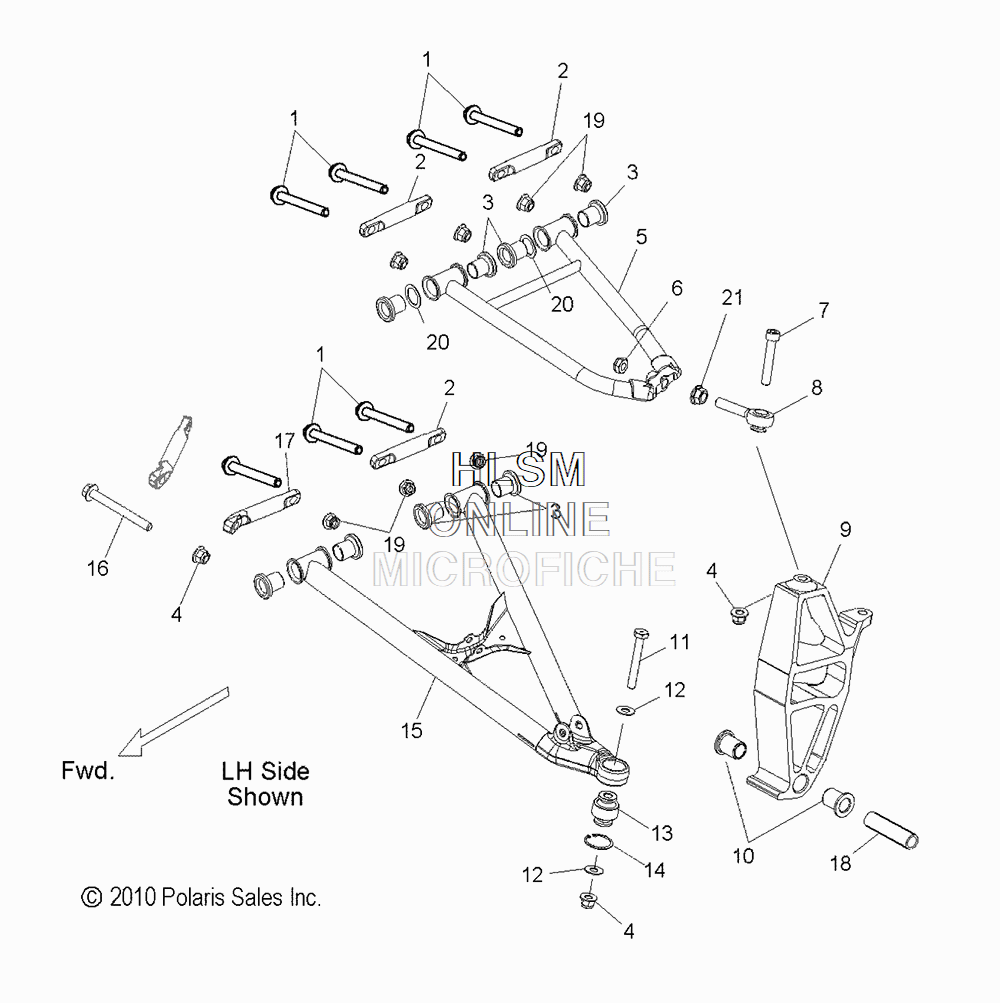

CONTROL ARMS W/SPINDLE для Polaris 550 VOYAGEUR 144 ES (INDY RED) (S18CEF5BSL) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7519204 STUD, WHEEL
    STUD, WHEEL
  • 2
    5141028 SHAFT, PIVOT
    SHAFT, PIVOT
  • 3
    5437539 BUSHING, PIVOT
    BUSHING, PIVOT
  • 4
    7547423 NUT, NYLOK
    NUT, NYLOK
  • 5
    1823582-067 UPPER CONTROL ARM, LEFT HAND, BLACK (CONTROL ARM ONLY)
    UPPER CONTROL ARM, LEFT HAND, BLACK (CONTROL ARM ONLY)
  • 5
    1823583-067 UPPER CONTROL ARM, RIGHT HAND, BLACK (CONTROL ARM ONLY)
    UPPER CONTROL ARM, RIGHT HAND, BLACK (CONTROL ARM ONLY)
  • 6
    7547464 NUT, HEX NYL
    NUT, HEX NYL
  • 7
    7519246 SCREW
    SCREW
  • 8
    7061178 ROD END, 30°
    ROD END, 30°
  • 9
    1823908 ASM., SPINDLE, LEFT HAND (INCL. 10)
    ASM., SPINDLE, LEFT HAND (INCL. 10)
  • 9
    1823909 ASM., SPINDLE, RIGHT HAND (INCL. 10)
    ASM., SPINDLE, RIGHT HAND (INCL. 10)
  • 10
    5133983 BUSHING, SKI PIVOT
    BUSHING, SKI PIVOT
  • 11
    7519015 SCREW
    SCREW
  • 12
    7555806 WASHER
    WASHER
  • 13
    2204229 KIT, SPHERICAL BEARING, LOWER, 10MM
    KIT, SPHERICAL BEARING, LOWER, 10MM
  • 14
    7710539 RING, RETAINING
    RING, RETAINING
  • 15
    1823534-067 LOWER CONTROL ARM, RIGHT HAND, BLACK (CONTROL ARM ONLY)
    LOWER CONTROL ARM, RIGHT HAND, BLACK (CONTROL ARM ONLY)
  • 15
    1823533-067 LOWER CONTROL ARM, LEFT HAND, BLACK (CONTROL ARM ONLY)
    LOWER CONTROL ARM, LEFT HAND, BLACK (CONTROL ARM ONLY)
  • 16
    7518917 SCREW
    SCREW
  • 17
    5141029 SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
    SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
  • 18
    5136910 BUSHING
    BUSHING
  • 19
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 20
    7571605 WASHER, SPRING
    WASHER, SPRING
  • 21
    7547490 NUT
    NUT
