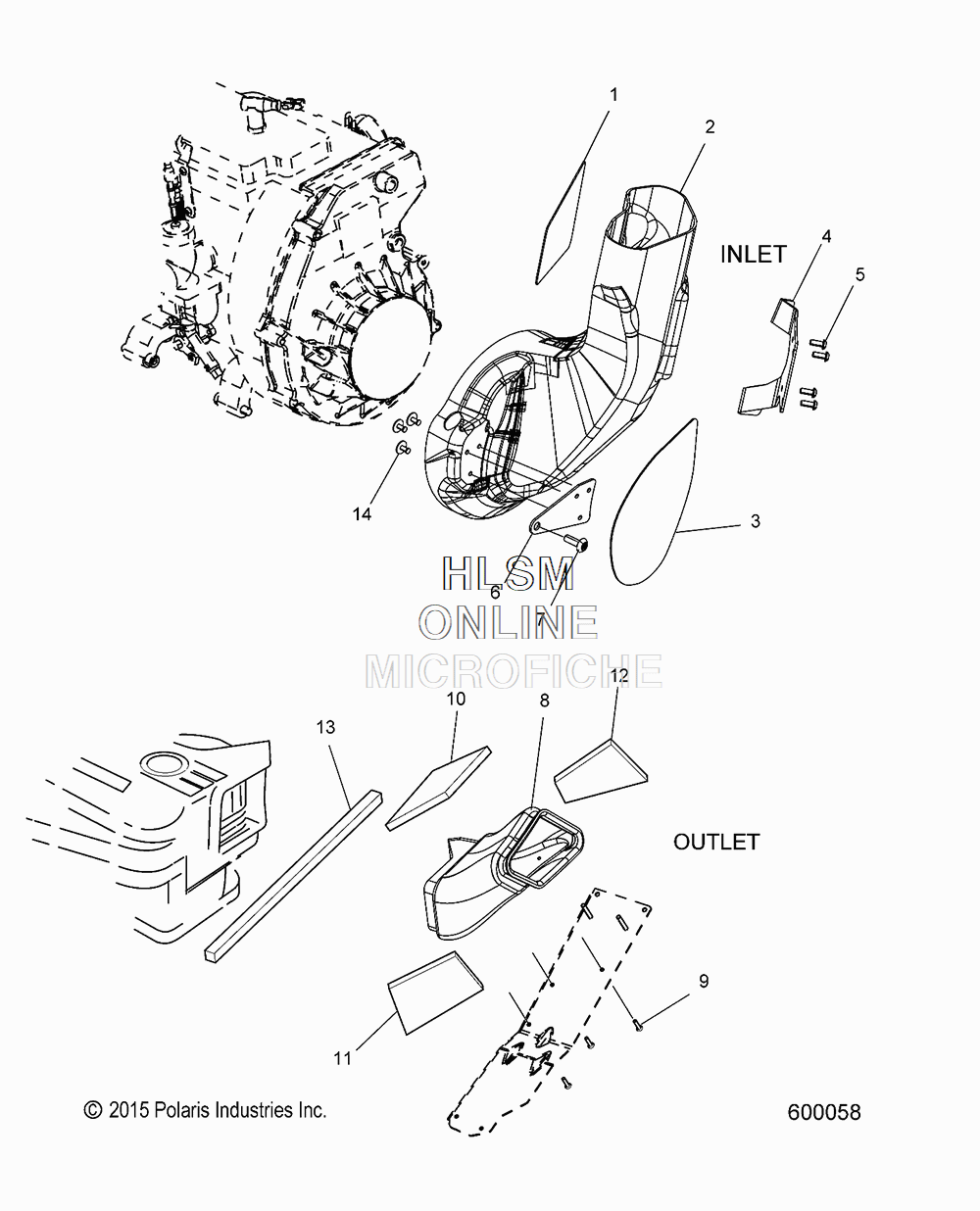

AIR INLET AND OUTLET DUCTS для Polaris 550 VOYAGEUR 144 ES (INDY RED) (S18CEF5BSL) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5813990 FOIL, INLET DUCT, UPPER
    FOIL, INLET DUCT, UPPER
  • 2
    2635709 ASM., DUCT, INLET W/FOIL (INCL.1-7, 14)
    ASM., DUCT, INLET W/FOIL (INCL.1-7, 14)
  • 3
    5814300 FOIL, INLET DUCT, LOWER
    FOIL, INLET DUCT, LOWER
  • 4
    1021177 ASM., SIDE BRKT., UPPER
    ASM., SIDE BRKT., UPPER
  • 5
    7518656 BOLT
    BOLT
  • 6
    5260417 BRACKET, LOWER
    BRACKET, LOWER
  • 7
    7518906 SCREW
    SCREW
  • 8
    2634934 ASM., AIR OUTLET DUCT (INCL. 10-12)
    ASM., AIR OUTLET DUCT (INCL. 10-12)
  • 9
    7621489 RIVET, AL BULBEX
    RIVET, AL BULBEX
  • 10
    5813926 FOAM, AIR OUT, TOP
    FOAM, AIR OUT, TOP
  • 11
    5813927 FOAM, AIR OUT, FRONT
    FOAM, AIR OUT, FRONT
  • 12
    5813928 FOAM, AIR OUT, REAR
    FOAM, AIR OUT, REAR
  • 13
    5813744 FOAM, DUCT
    FOAM, DUCT
  • 14
    7621472 RIVET
    RIVET
