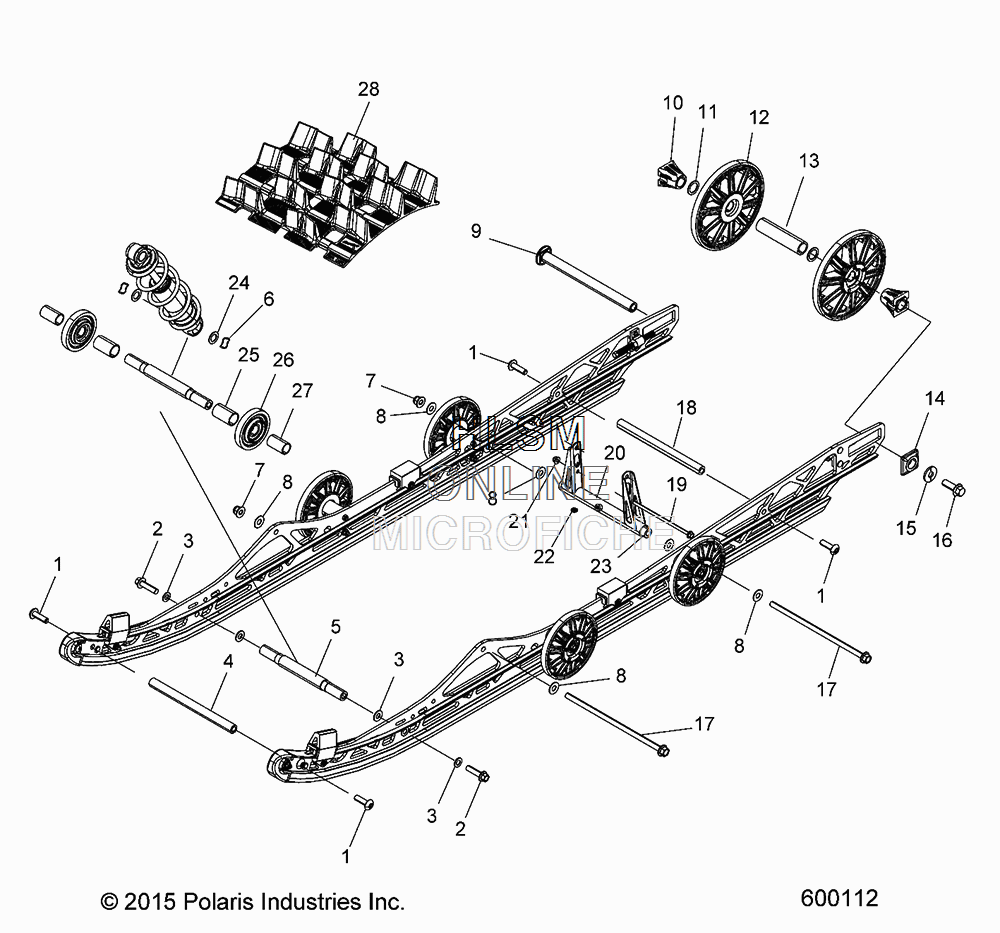

SUSPENSION - REAR для Polaris 800 SKS 155 SNOWCHECK SELECT [S17EFS8PS] - 2017 года выпуска
-
№АртикулНазвание
-
17520369 SCREWSCREW
-
27519216 SCREWSCREW
-
37556155 WASHERWASHER
-
45136572 SHAFTSHAFT
-
55137936 SHAFTSHAFT
-
67556063 WASHER, WAVEWASHER, WAVE
-
77547423 NUTNUT
-
87556545 WASHERWASHER
-
95139411 SHAFT, IDLER, REARSHAFT, IDLER, REAR
-
105432535 SPACER, IDLERSPACER, IDLER
-
117555918 BUSHINGBUSHING
-
127710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
121590431-070 ASM., WHEEL, BLACKASM., WHEEL, BLACK
-
123514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
135338618 SPACER, IDLER, CENTER, LWTSPACER, IDLER, CENTER, LWT
-
145436496 SPACER, IDLERSPACER, IDLER
-
157556929 WASHER, DOMEDWASHER, DOMED
-
167520123 SCREWSCREW
-
177519198 SCREWSCREW
-
185139172 SHAFT, CROSSSHAFT, CROSS
-
197519201 BOLTBOLT
-
201542906-329 ARM, REAR PIVOT, (BLACK)ARM, REAR PIVOT, (BLACK)
-
217547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
227080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
235137418 SHAFT, CROSSSHAFT, CROSS
-
247556210 WASHERWASHER
-
255337107 SPACER, INSIDESPACER, INSIDE
-
263514777 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
267710700 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
261590509 ASM., WHEEL, BOGIEASM., WHEEL, BOGIE
-
275337106 SPACER, OUTSIDESPACER, OUTSIDE
-
285415002 TRACK, 155 X 2.25", PEAK (SNOW CHECK OPTION)TRACK, 155 X 2.25", PEAK (SNOW CHECK OPTION)
-
285415391 TRACK, 155 X 2.6" SERIES 6 (SNOW CHECK OPTION)TRACK, 155 X 2.6" SERIES 6 (SNOW CHECK OPTION)
-
285413622 TRACK, 155 X 2.4", SINGLE LAYER (STOCK AND SNOW CHECK OPTION)TRACK, 155 X 2.4", SINGLE LAYER (STOCK AND SNOW CHECK OPTION)
