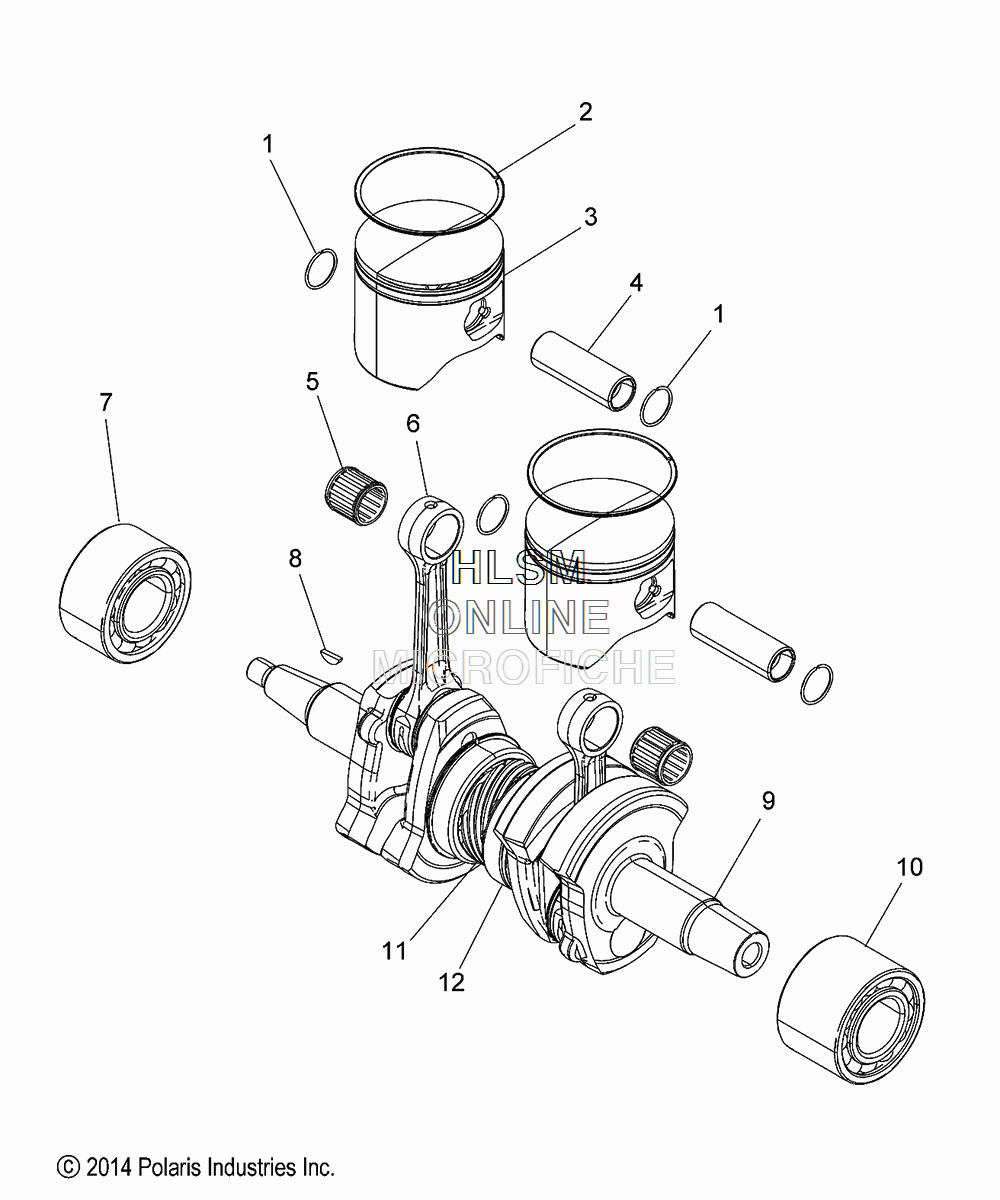

CRANKSHAFT ASSY. W/ PISTON для Polaris 800 SKS 155 SNOWCHECK SELECT [S17EFS8PS] - 2017 года выпуска
-
№АртикулНазвание
-
13022830 CIRCLIP, PISTONCIRCLIP, PISTON
-
22206375 KIT, PISTON RINGS, 800LE [INCL. 2 RINGS]KIT, PISTON RINGS, 800LE [INCL. 2 RINGS]
-
32206374 KIT, PISTON, 800CH [INCL. 1,2,4]KIT, PISTON, 800CH [INCL. 1,2,4]
-
53514357 BEARINGBEARING
-
62206470 KIT, CONNECTING ROD [INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS]KIT, CONNECTING ROD [INCL. CRANKWEB,CONN. ROD, BEARING,WASHERS]
-
73514499 BEARING, BALL, DOUBLE ROWBEARING, BALL, DOUBLE ROW
-
87721117 KEY, WOODRUFFKEY, WOODRUFF
-
92206373 KIT, CRANKSHAFT [INCL. 5,6,7,10 ]KIT, CRANKSHAFT [INCL. 5,6,7,10 ]
-
103514908 BEARING, BALLBEARING, BALL
-
115138548 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
127710528 RING, SNAPRING, SNAP
-
123090284 BEARING, BALL, W/RING FJBEARING, BALL, W/RING FJ
-
123090283 BEARING, BALLBEARING, BALL
