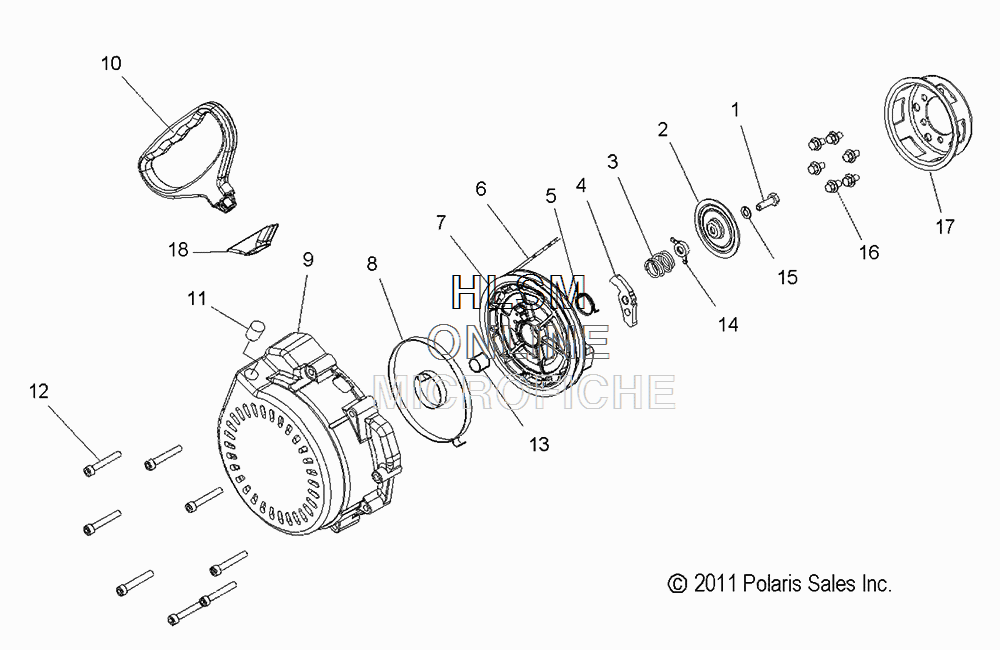

STARTER - RECOIL ASSEMBLY для Polaris 800 SKS 155 SNOWCHECK SELECT [S17EFS8PS] - 2017 года выпуска`
-
№АртикулНазвание
-
-1204331 ASM., RECOIL [INCL. 1-9,11]ASM., RECOIL [INCL. 1-9,11]
-
17517984 SCREWSCREW
-
23021650 PLATE, FRICTIONPLATE, FRICTION
-
33022313 SPRING, FRICTIONSPRING, FRICTION
-
45247844 RATCHETRATCHET
-
53022314 SPRING, RETURNSPRING, RETURN
-
63040169 ROPE, STARTERROPE, STARTER
-
73022317 REEL, RECOILREEL, RECOIL
-
83021648 SPRING, SPIRALSPRING, SPIRAL
-
95632494 HOUSING, RECOIL STARTERHOUSING, RECOIL STARTER
-
105435154-070 HANDLE, RECOIL, (BLACK)HANDLE, RECOIL, (BLACK)
-
113040171 BUSHING, ROPE SLIDEBUSHING, ROPE SLIDE
-
127510005 SCREWSCREW
-
133022316 BUSHING, CENTERBUSHING, CENTER
-
143022324 GUIDE, RATCHETGUIDE, RATCHET
-
157556319 WASHERWASHER
-
167517278 SCREWSCREW
-
173021618 PULLEY, STARTER, RECOILPULLEY, STARTER, RECOIL
-
185414288 ISOLATOR, RECOIL HANDLEISOLATOR, RECOIL HANDLE
