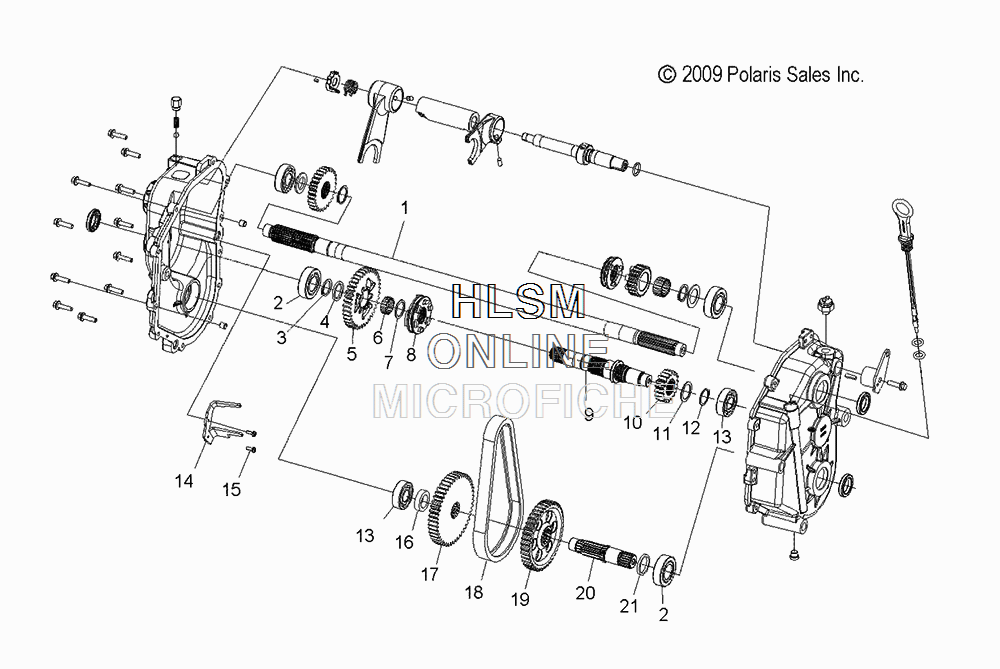

GEARCASE ASSEMBLY (2 OF 2) для Polaris 600 WIDETRAK IQ (BLACK) [PJA6NSL/NEL] - 2017 года выпуска`
-
№АртикулНазвание
-
-1332776 ASM., GEARCASE, PERC [INCL. 1-21 AND ALL FROM DRIVE TRAIN, GEARCASE [1 OF 2] PAGE.]ASM., GEARCASE, PERC [INCL. 1-21 AND ALL FROM DRIVE TRAIN, GEARCASE [1 OF 2] PAGE.]
-
16230393 JACKSHAFTJACKSHAFT
-
23514304 BEARING W/O SEALBEARING W/O SEAL
-
37710602 RING, RETAINERRING, RETAINER
-
47556434 WASHER, THRUSTWASHER, THRUST
-
53233511 GEAR, 39TGEAR, 39T
-
63514589 BEARING, NEEDLEBEARING, NEEDLE
-
77556433 WASHER, THRUSTWASHER, THRUST
-
83233512 DOG, ENGAGEMENT, L/RDOG, ENGAGEMENT, L/R
-
93233514 SHAFT, REVERSESHAFT, REVERSE
-
103233515 GEAR, 18TGEAR, 18T
-
117556432 WASHERWASHER
-
127710603 RING, RETAININGRING, RETAINING
-
133514594 BEARING, BALLBEARING, BALL
-
145251122 DEFLECTOR, OILDEFLECTOR, OIL
-
157518784 SCREWSCREW
-
165135973 SPACERSPACER
-
173233518 GEAR, 47TGEAR, 47T
-
183221113 CHAIN, SILENT, 66PCHAIN, SILENT, 66P
-
193222101 SPROCKET, 41T, 15T SPLINESPROCKET, 41T, 15T SPLINE
-
203233521 SHAFT, OUTPUTSHAFT, OUTPUT
-
215135972 SPACERSPACER
