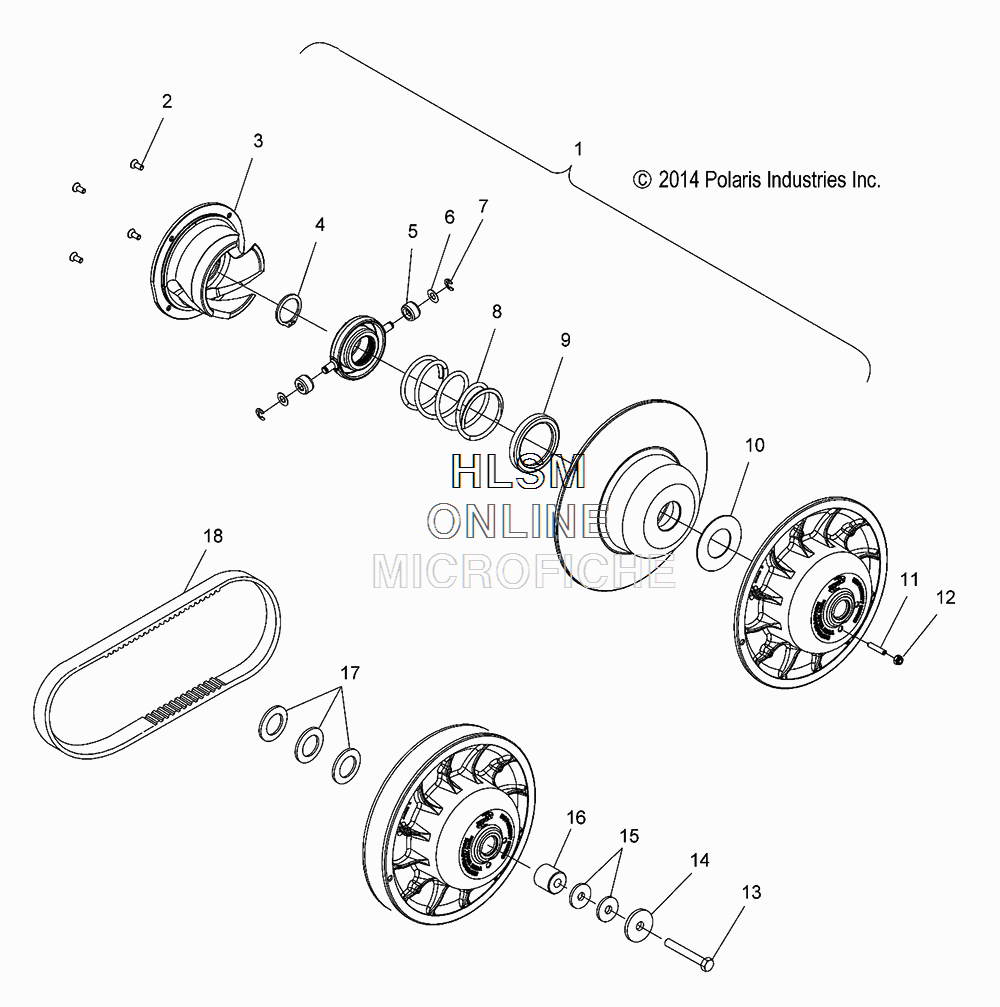

CLUTCH - SECONDARY для Polaris 600 WIDETRAK IQ (BLACK) [PJA6NSL/NEL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1323185 ASM., DRIVEN CLUTCH, BASIC, LWT SPL [INCL. 4-7,9-12]
    ASM., DRIVEN CLUTCH, BASIC, LWT SPL [INCL. 4-7,9-12]
  • 2
    3235592 SCREW
    SCREW
  • 3
    5139700 RAMP, DRIVEN 54/44/.36, LWER
    RAMP, DRIVEN 54/44/.36, LWER
  • 4
    7710583 RING, RETAINING
    RING, RETAINING
  • 5
    5434534 ROLLER
    ROLLER
  • 6
    7556226 WASHER, THRUST
    WASHER, THRUST
  • 7
    7710523 E-RING, RETAINING
    E-RING, RETAINING
  • 8
    7043058 SPRING, DRIVEN CLUTCH, RED/BLACK, LEFT HAND
    SPRING, DRIVEN CLUTCH, RED/BLACK, LEFT HAND
  • 9
    7556728 WASHER, THRUST
    WASHER, THRUST
  • 10
    7556370 WASHER
    WASHER
  • 11
    3234228 SCREW
    SCREW
  • 12
    7542103 NUT, FLEXLOC
    NUT, FLEXLOC
  • 13
    7515369 SCREW
    SCREW
  • 14
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 15
    7556216 WASHER, FLAT
    WASHER, FLAT
  • 16
    5139336 SPACER, INPUT SHAFT, ALUM
    SPACER, INPUT SHAFT, ALUM
  • 17
    7555864 WASHER
    WASHER
  • 17
    7556509 BUSHING
    BUSHING
  • 17
    7555917 WASHER
    WASHER
  • 17
    7555957 WASHER
    WASHER
  • 18
    3211132 BELT, DRIVE
    BELT, DRIVE
