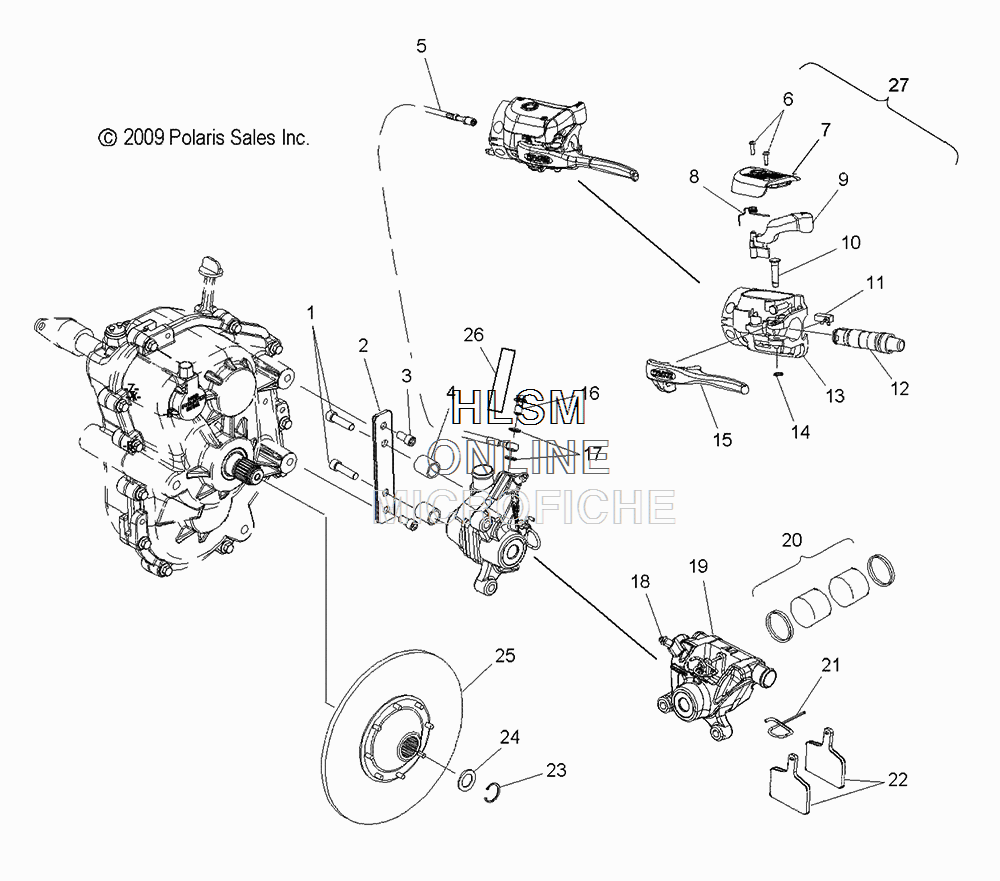

BRAKE CALIPER W/ DISC для Polaris 600 WIDETRAK IQ (BLACK) [PJA6NSL/NEL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2203537 KIT, BOLT [2 PER KIT]
    KIT, BOLT [2 PER KIT]
  • 2
    2203535 KIT, MOUNT BRACKET
    KIT, MOUNT BRACKET
  • 3
    7518798 SCREW
    SCREW
  • 4
    2203536 KIT, SPACERS [2 PER KIT]
    KIT, SPACERS [2 PER KIT]
  • 5
    2205960 KIT, BRAKELINE
    KIT, BRAKELINE
  • 6
    2201254 KIT, COVER SCREW
    KIT, COVER SCREW
  • 7
    2202837 KIT, COVER [INCL. GASKET]
    KIT, COVER [INCL. GASKET]
  • 8
    2201250 KIT, PARK LEVER SPRING
    KIT, PARK LEVER SPRING
  • 9
    2201251 KIT, PARK LEVER AND SPRING
    KIT, PARK LEVER AND SPRING
  • 10
    2201946 KIT, PIVOT PIN W/SNAP RING [INCL. 14]
    KIT, PIVOT PIN W/SNAP RING [INCL. 14]
  • 11
    2203182 KIT, STOPLIGHT SWITCH
    KIT, STOPLIGHT SWITCH
  • 12
    2203486 KIT, CARTRIDGE
    KIT, CARTRIDGE
  • 13
    2202784 KIT, RESERVOIR
    KIT, RESERVOIR
  • 14
    2201945 KIT, SNAP RING
    KIT, SNAP RING
  • 15
    2201943 KIT, LEVER [INCL. 10,14]
    KIT, LEVER [INCL. 10,14]
  • 16
    2203392 KIT, BANJO BOLT
    KIT, BANJO BOLT
  • 17
    2203393 KIT, STATOSEAL WASHER [2 PER KIT]
    KIT, STATOSEAL WASHER [2 PER KIT]
  • 18
    2202205 KIT, BLEEDER FITTING
    KIT, BLEEDER FITTING
  • 19
    2203533 KIT, BRAKE CALIPER [INCL. 2]
    KIT, BRAKE CALIPER [INCL. 2]
  • 20
    2202207 KIT, PISTON/SEAL
    KIT, PISTON/SEAL
  • 20
    2202204 KIT, SEAL
    KIT, SEAL
  • 21
    2202206 KIT, PIN RETAINING
    KIT, PIN RETAINING
  • 22
    2203532 KIT, BRAKE PAD, TYPE 94 [INCL. 21]
    KIT, BRAKE PAD, TYPE 94 [INCL. 21]
  • 23
    7713401 RING, RETAINING
    RING, RETAINING
  • 24
    7555922 BUSHING
    BUSHING
  • 25
    1911276 ASM., BRAKE DISC
    ASM., BRAKE DISC
  • 26
    5811763 FOIL, TAPE
    FOIL, TAPE
  • 27
    2203489 KIT, FULL ASM., KIT [INCL. 6-9,12-15]
    KIT, FULL ASM., KIT [INCL. 6-9,12-15]
