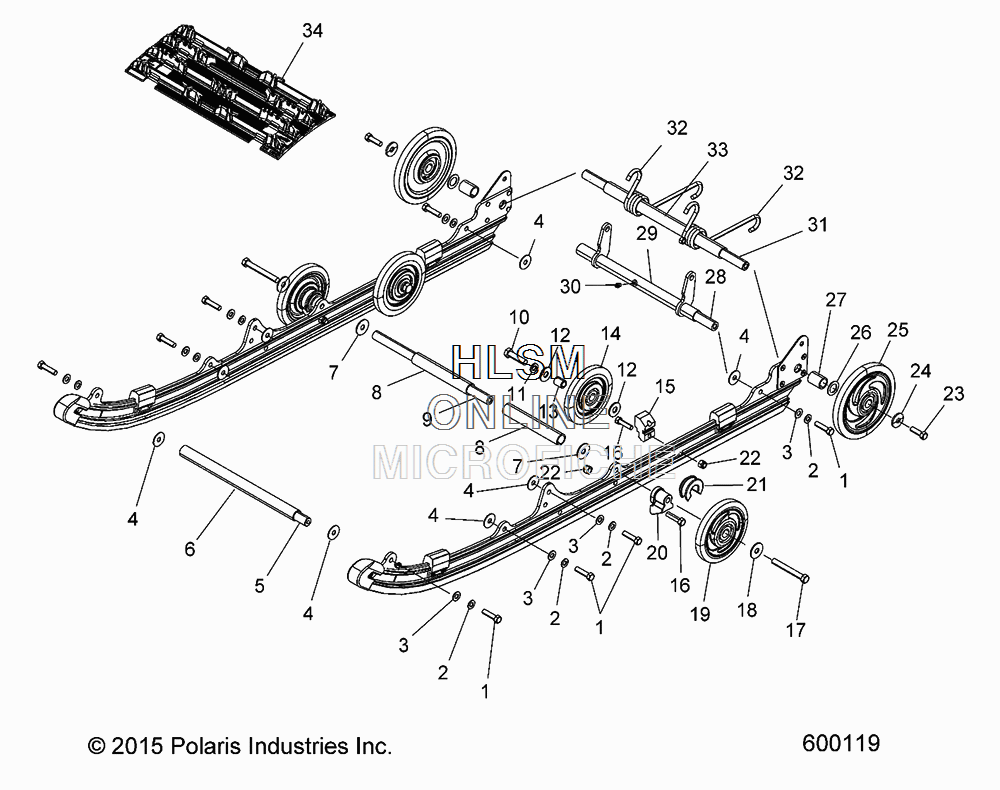

SUSPENSION - REAR для Polaris 550 WIDETRAK LX ES (BLACK) [SJA5B] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7518005 SCREW
    SCREW
  • 2
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7556153 WASHER
    WASHER
  • 4
    7556256 WASHER
    WASHER
  • 5
    5132742 SHAFT, PIVOT
    SHAFT, PIVOT
  • 6
    5433977 SLEEVE, PIVOT SHAFT
    SLEEVE, PIVOT SHAFT
  • 7
    7555883 WASHER
    WASHER
  • 8
    5338892 SPACER
    SPACER
  • 9
    5139901 SHAFT, REAR SHOCK
    SHAFT, REAR SHOCK
  • 10
    7512659 SCREW
    SCREW
  • 11
    7553201 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 12
    7555804 WASHER
    WASHER
  • 13
    5332786 SPACER
    SPACER
  • 14
    3514303 BEARING [1 PER WHEEL]
    BEARING [1 PER WHEEL]
  • 14
    7718407 RING, RETAINING [1 PER WHEEL]
    RING, RETAINING [1 PER WHEEL]
  • 14
    5431531 INSERT, WHEEL [2 PER WHEEL]
    INSERT, WHEEL [2 PER WHEEL]
  • 14
    1590357 ASM., WHEEL W/INSERT
    ASM., WHEEL W/INSERT
  • 15
    5130570 BRACKET, BOGIE WHEEL
    BRACKET, BOGIE WHEEL
  • 16
    7512404 BOLT
    BOLT
  • 17
    7520270 SCREW
    SCREW
  • 18
    7556156 WASHER
    WASHER
  • 19
    3514303 BEARING [1 PER WHEEL]
    BEARING [1 PER WHEEL]
  • 19
    7718407 RING, RETAINING [1 PER WHEEL]
    RING, RETAINING [1 PER WHEEL]
  • 19
    1590552-070 ASM., WHEEL, 5.62 W/SPACER
    ASM., WHEEL, 5.62 W/SPACER
  • 20
    5630399 SPACER, BOGIE WHEEL
    SPACER, BOGIE WHEEL
  • 21
    5431366 ROLLER, SPRING
    ROLLER, SPRING
  • 22
    7542439 NUT
    NUT
  • 23
    7517731 BOLT
    BOLT
  • 24
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 25
    1590276-070 ASM., IDLER WHEEL, SCROLLED, BLACK
    ASM., IDLER WHEEL, SCROLLED, BLACK
  • 25
    3514303 BEARING
    BEARING
  • 25
    7718407 RING, RETAINING [1 PER WHEEL]
    RING, RETAINING [1 PER WHEEL]
  • 26
    7556301 WASHER [1 PER WHEEL]
    WASHER [1 PER WHEEL]
  • 27
    5330171-067 TUBE, SPACER OUTSIDE CENTER
    TUBE, SPACER OUTSIDE CENTER
  • 28
    7556256 WASHER
    WASHER
  • 28
    5132239 SHAFT
    SHAFT
  • 29
    1540652-067 PIVOT ARM, REAR, BLK [INCL. FITTING]
    PIVOT ARM, REAR, BLK [INCL. FITTING]
  • 30
    7080424 FITTING,
    FITTING,
  • 31
    5020726 SHAFT
    SHAFT
  • 32
    7041231-067 SPRING, EXTENSION, REAR
    SPRING, EXTENSION, REAR
  • 33
    5333014-067 SPACER, BLK
    SPACER, BLK
  • 34
    5414453 TRACK
    TRACK
