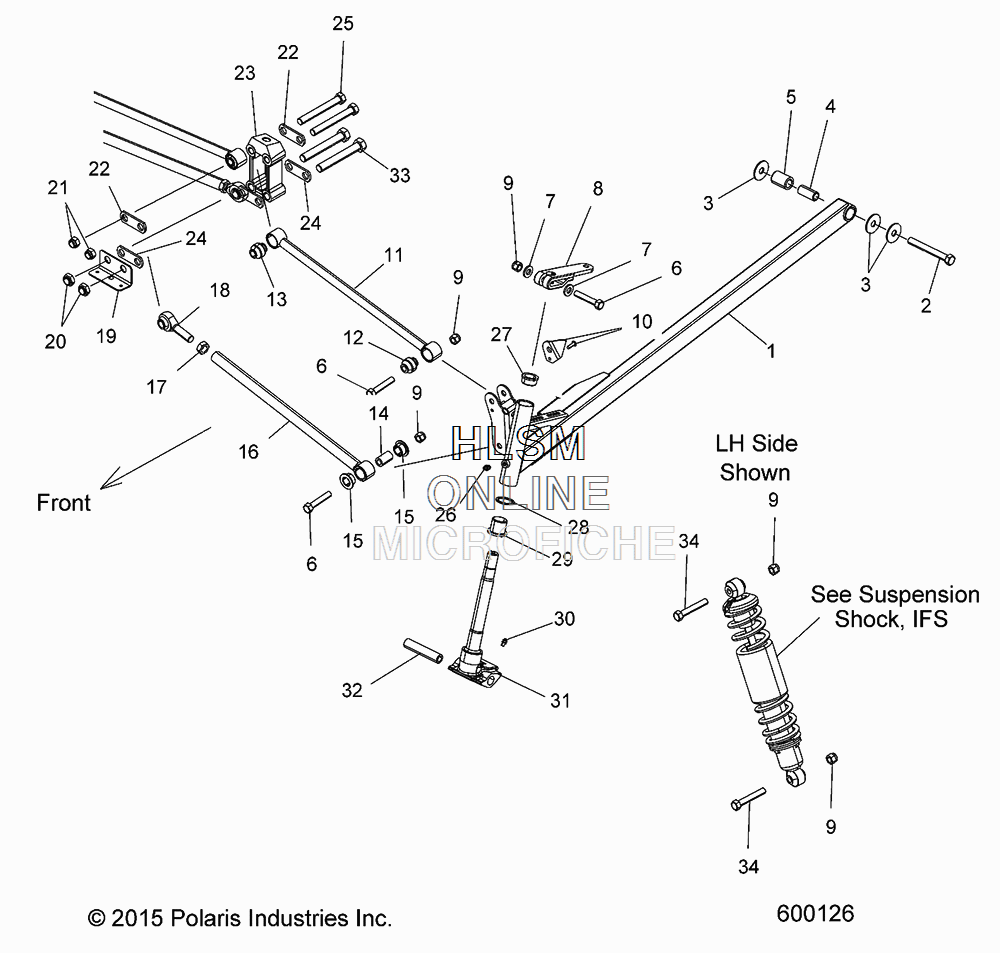

SUSPENSION - FRONT для Polaris 550 WIDETRAK LX ES (BLACK) [SJA5B] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1824069-458 ASM., TRAILING ARM, LEFT HAND, BLACK [INCL. 4,5]
    ASM., TRAILING ARM, LEFT HAND, BLACK [INCL. 4,5]
  • 1
    1824070-458 ASM., TRAILING ARM, RIGHT HAND, BLACK [INCL. 4,5]
    ASM., TRAILING ARM, RIGHT HAND, BLACK [INCL. 4,5]
  • 2
    7517918 SCREW
    SCREW
  • 3
    7556156 WASHER
    WASHER
  • 4
    5010310 BUSHING
    BUSHING
  • 5
    5410872 PIVOT, RUBBER
    PIVOT, RUBBER
  • 6
    7517583 SCREW
    SCREW
  • 7
    7555832 WASHER
    WASHER
  • 8
    5220326-458 ARM, STEERING, BLACK
    ARM, STEERING, BLACK
  • 9
    7542439 NUT
    NUT
  • 10
    5241569-458 STOP, STEERING, LEFT HAND, BLACK
    STOP, STEERING, LEFT HAND, BLACK
  • 10
    5241570-458 STOP, STEERING, RIGHT HAND, BLACK
    STOP, STEERING, RIGHT HAND, BLACK
  • 10
    7661130 RIVET
    RIVET
  • 11
    1822420-458 ASM., ROD, RADIUS, UPPER, FIXED, BLACK [INCL. 12,13]
    ASM., ROD, RADIUS, UPPER, FIXED, BLACK [INCL. 12,13]
  • 12
    5411099 BUSHING, RADIUS ROD PIVOT
    BUSHING, RADIUS ROD PIVOT
  • 13
    5411095 BUSHING, PIVOT
    BUSHING, PIVOT
  • 14
    5010127 BUSHING
    BUSHING
  • 15
    5431486 BUSHING, PIVOT, RADIUS ROD, OUTER
    BUSHING, PIVOT, RADIUS ROD, OUTER
  • 16
    1822444-458 ROD, RADIUS, LOWER, BLACK
    ROD, RADIUS, LOWER, BLACK
  • 17
    7542711 NUT, JAM
    NUT, JAM
  • 18
    7061071 ROD END
    ROD END
  • 19
    5242578 BRKT., RADIUS ROD, BOTTOM
    BRKT., RADIUS ROD, BOTTOM
  • 20
    7547065 NUT, NYLON
    NUT, NYLON
  • 21
    7547066 NUT, NYLON
    NUT, NYLON
  • 22
    5211344 STRAP-SPACER, TOP
    STRAP-SPACER, TOP
  • 23
    5630563 BLOCK-STEERING, CAST
    BLOCK-STEERING, CAST
  • 24
    5211345 STRAP-SPACER, BOTTOM
    STRAP-SPACER, BOTTOM
  • 25
    7512410 SCREW
    SCREW
  • 26
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 27
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 28
    7556509 BUSHING
    BUSHING
  • 29
    3574208 BUSHING, FLANGED
    BUSHING, FLANGED
  • 30
    7080306 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 31
    6230102-458 SHAFT, SPINDLE, TRAILING, BLACK
    SHAFT, SPINDLE, TRAILING, BLACK
  • 32
    5136910 BUSHING [BSL,BEL]
    BUSHING [BSL,BEL]
  • 32
    5010158 BUSHING [BEA]
    BUSHING [BEA]
  • 33
    7512678 BOLT
    BOLT
  • 34
    7515415 SCREW
    SCREW
