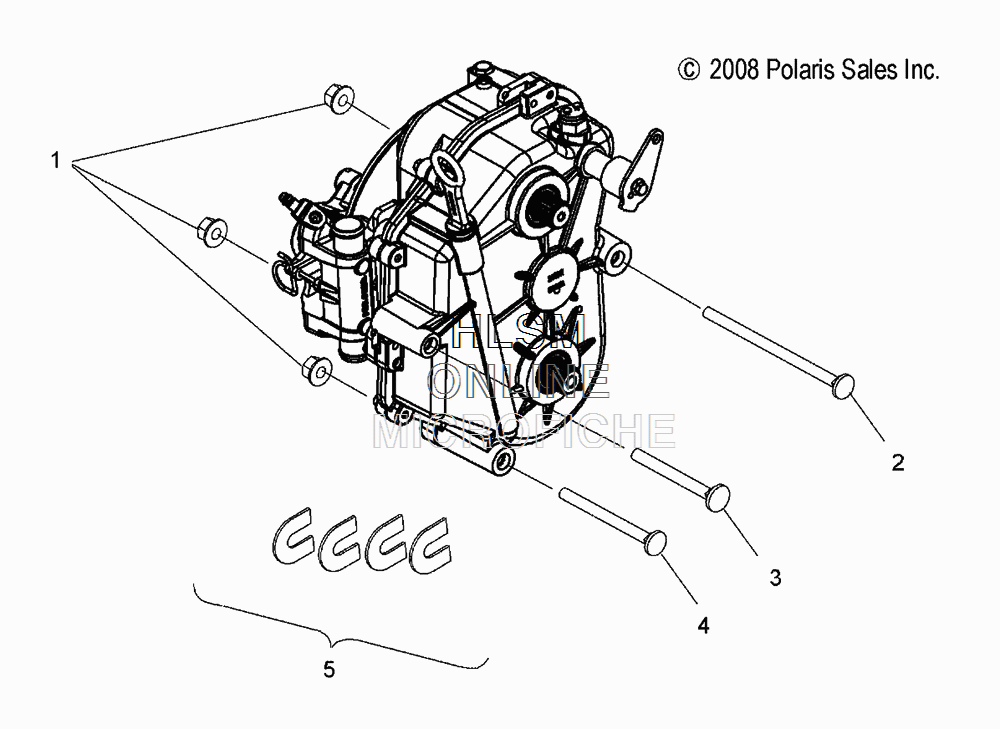

GEARCASE MOUNTING для Polaris 550 WIDETRAK LX ES (BLACK) [SJA5B] - 2017 года выпуска
-
№АртикулНазвание
-
17542423 NUT, FLANGENUT, FLANGE
-
27517291 BOLT, CARRIAGE [.38 X 6.12]BOLT, CARRIAGE [.38 X 6.12]
-
37518360 BOLT, CARRIAGE [.38 X 3.5]BOLT, CARRIAGE [.38 X 3.5]
-
47517292 BOLT, CARRIAGE [.38 X 4.25]BOLT, CARRIAGE [.38 X 4.25]
-
55210759 SHIM, CHAINCASE, .063SHIM, CHAINCASE, .063
-
55210760 SHIM, CHAINCASE, .080SHIM, CHAINCASE, .080
-
55211065 SHIM, CHAINCASE, .010SHIM, CHAINCASE, .010
-
55210764 SHIM, CHAINCASE, .020SHIM, CHAINCASE, .020
