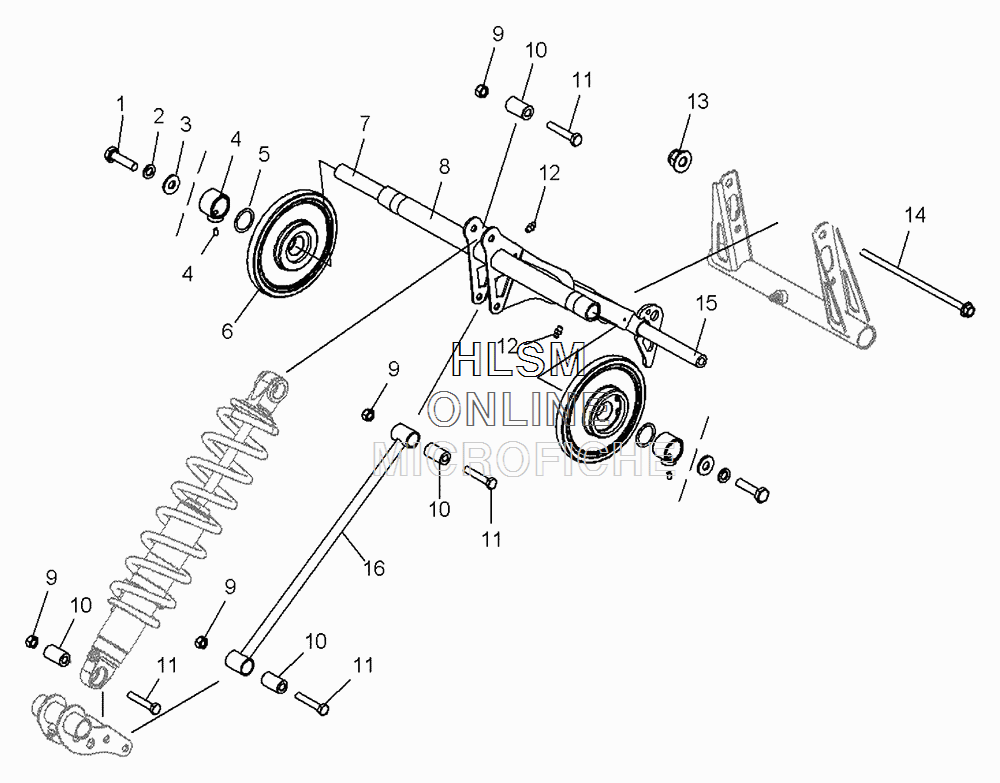

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 RMK 155 [S16CM8GSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7519223 SCREW
    SCREW
  • 2
    7556558 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    7556559 WASHER
    WASHER
  • 4
    5135424 SPACER, NYLON
    SPACER, NYLON
  • 4
    7518262 SCREW, SOC/SET
    SCREW, SOC/SET
  • 5
    7571605 WASHER, SPRING
    WASHER, SPRING
  • 6
    1590328 ASM., WHEEL BOGIE
    ASM., WHEEL BOGIE
  • 6
    3514303 BEARING (1 PER)
    BEARING (1 PER)
  • 6
    7718407 RING, RETAINING (1 PER)
    RING, RETAINING (1 PER)
  • 7
    5138059 SHAFT, HOLLOW
    SHAFT, HOLLOW
  • 8
    1543150-329 ARM, TORQUE, REAR, NARROW, BLACK
    ARM, TORQUE, REAR, NARROW, BLACK
  • 9
    7547480 NUT, NYLOK
    NUT, NYLOK
  • 10
    5137230 BUSHING (STOCK)
    BUSHING (STOCK)
  • 10
    1823987 BUSHING (LE)
    BUSHING (LE)
  • 11
    7519097 SCREW
    SCREW
  • 12
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 13
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 14
    7519200 SCREW
    SCREW
  • 15
    5337198 SHAFT
    SHAFT
  • 16
    1542797-329 ROD, SHOCK, BLACK
    ROD, SHOCK, BLACK
