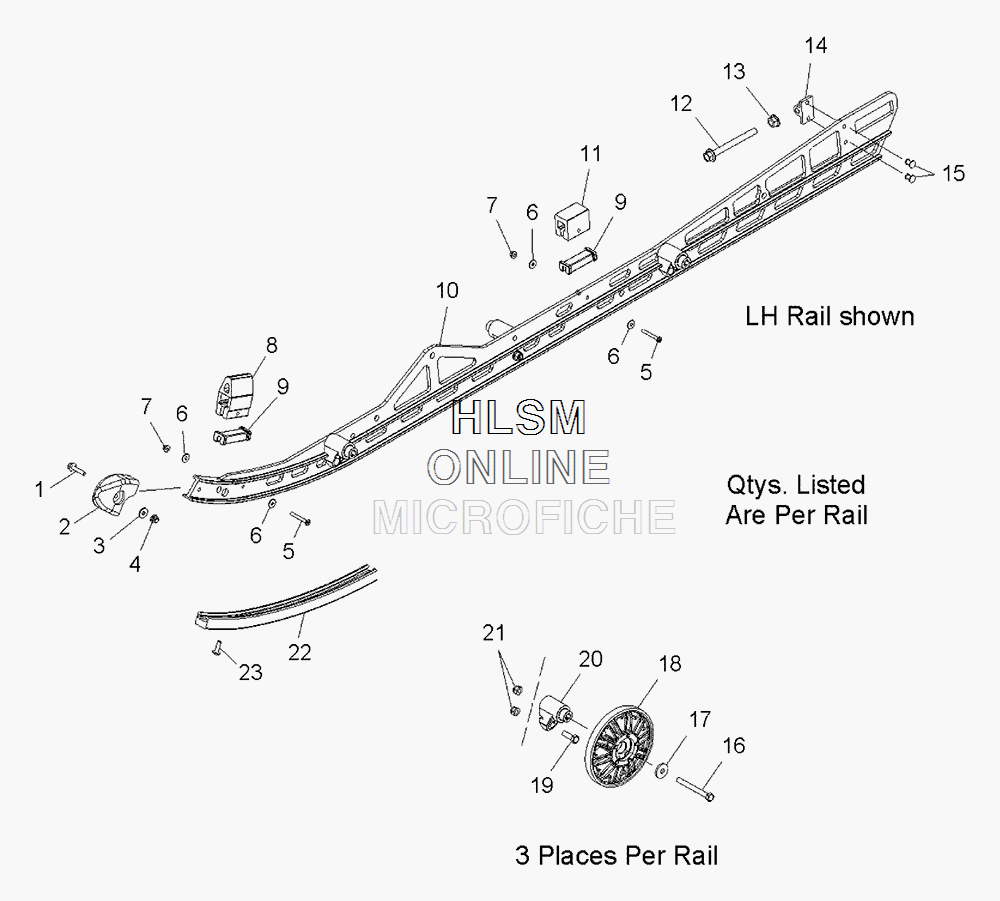

SUSPENSION - RAIL MOUNTING для Polaris 800 RMK 155 [S16CM8GSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    5438374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 3
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 4
    7547339 NUT, NYLOK
    NUT, NYLOK
  • 5
    7518951 SCREW
    SCREW
  • 6
    7556470 WASHER
    WASHER
  • 7
    7547427 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 8
    5414323 BUMPER, HOLLOW, TALL
    BUMPER, HOLLOW, TALL
  • 9
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 10
    1543301-309 ASM., RAIL, BASIC, COIL OVER, 155, LEFT HAND (INCL. 14,15)
    ASM., RAIL, BASIC, COIL OVER, 155, LEFT HAND (INCL. 14,15)
  • 10
    1543302-309 ASM., RAIL, BASIC, COIL OVER, 155, RIGHT HAND (INCL. 14,15)
    ASM., RAIL, BASIC, COIL OVER, 155, RIGHT HAND (INCL. 14,15)
  • 11
    5521812 BUMPER, JOUNCE, REAR, COIL-OVER
    BUMPER, JOUNCE, REAR, COIL-OVER
  • 12
    7519167 SCREW
    SCREW
  • 13
    7547017 NUT
    NUT
  • 14
    5136570 BLOCK, IDLER BOLT ADJUSTABLE, METRIC
    BLOCK, IDLER BOLT ADJUSTABLE, METRIC
  • 15
    7621501 RIVET
    RIVET
  • 16
    7519217 SCREW
    SCREW
  • 17
    7556489 WASHER, SPRING
    WASHER, SPRING
  • 18
    1590434-070 ASM., WHEEL, WEB, BLACK
    ASM., WHEEL, WEB, BLACK
  • 18
    3514384 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 18
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 19
    7518952 SCREW
    SCREW
  • 20
    5631446 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 21
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 22
    5521633 SLIDER
    SLIDER
  • 23
    7518976 SCREW
    SCREW
