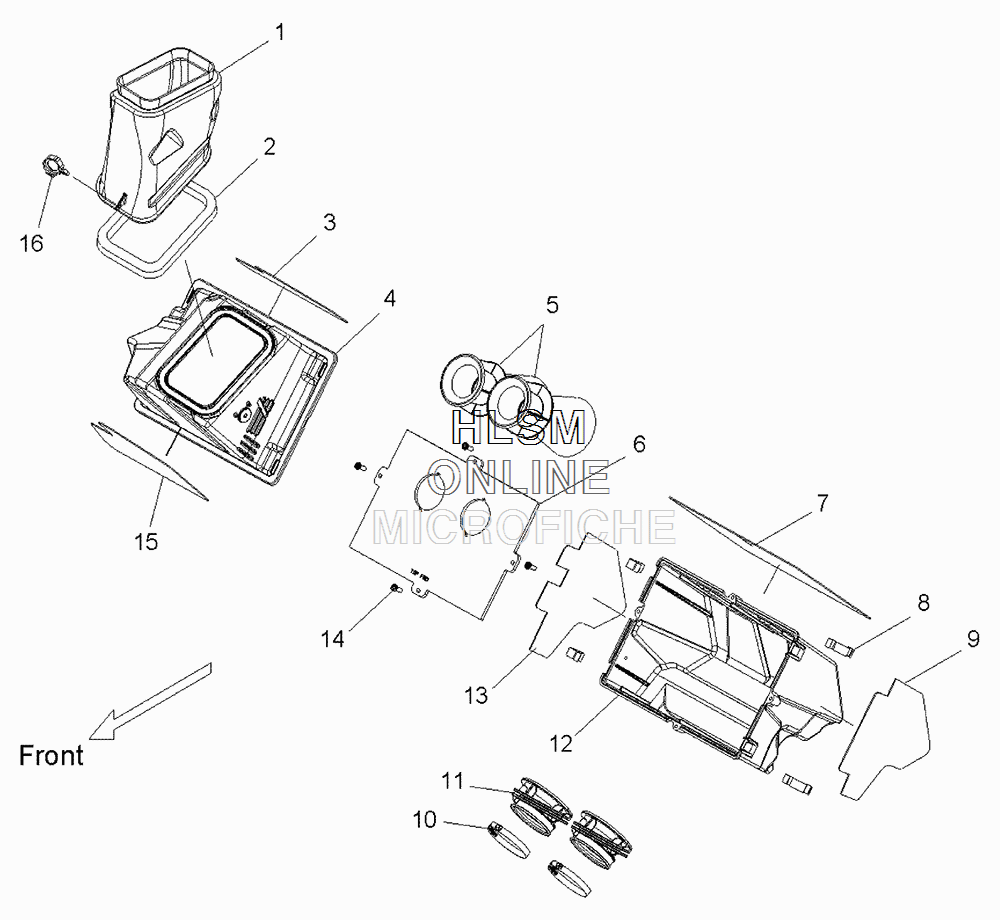

AIR INTAKE SYSTEM для Polaris 800 RMK 155 [S16CM8GSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1204587 ASM., TUBE, INTAKE (INCL. SCREWS)
    ASM., TUBE, INTAKE (INCL. SCREWS)
  • 1
    7518577 SCREW
    SCREW
  • 2
    5813504 FOAM, AIRBOX SEAL
    FOAM, AIRBOX SEAL
  • 3
    5813546 BARRIER, AIRBOX, REAR, TOP
    BARRIER, AIRBOX, REAR, TOP
  • 4
    5439043 AIRBOX, UPPER, LE
    AIRBOX, UPPER, LE
  • 5
    5438303 TUBE, INTAKE
    TUBE, INTAKE
  • 6
    5813641 PLATE, INTAKE
    PLATE, INTAKE
  • 7
    5813544 BARRIER, AIRBOX, BACK
    BARRIER, AIRBOX, BACK
  • 8
    5242044 CLIP, AIRBOX
    CLIP, AIRBOX
  • 9
    5813547 BARRIER, AIRBOX LEFT
    BARRIER, AIRBOX LEFT
  • 10
    7080909 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 11
    5413741 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 12
    1204440 ASM., AIR SILENCER (INCL. 8,11)
    ASM., AIR SILENCER (INCL. 8,11)
  • 13
    5813655 BARRIER, AIRBOX RIGHT
    BARRIER, AIRBOX RIGHT
  • 14
    7518577 SCREW
    SCREW
  • 15
    5813721 BARRIER, AIRBOX, FRONT, TOP
    BARRIER, AIRBOX, FRONT, TOP
  • 16
    4020139 CLIP, ROSEBUD
    CLIP, ROSEBUD
